C0274

DTC C0274 SHORT CIRCUIT IN ABS MOTOR RELAY CIRCUIT

CIRCUIT DESCRIPTION

DTC Detection Condition:

The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, ECU switches the ABS motor relay ON and operates the ABS pump motor.

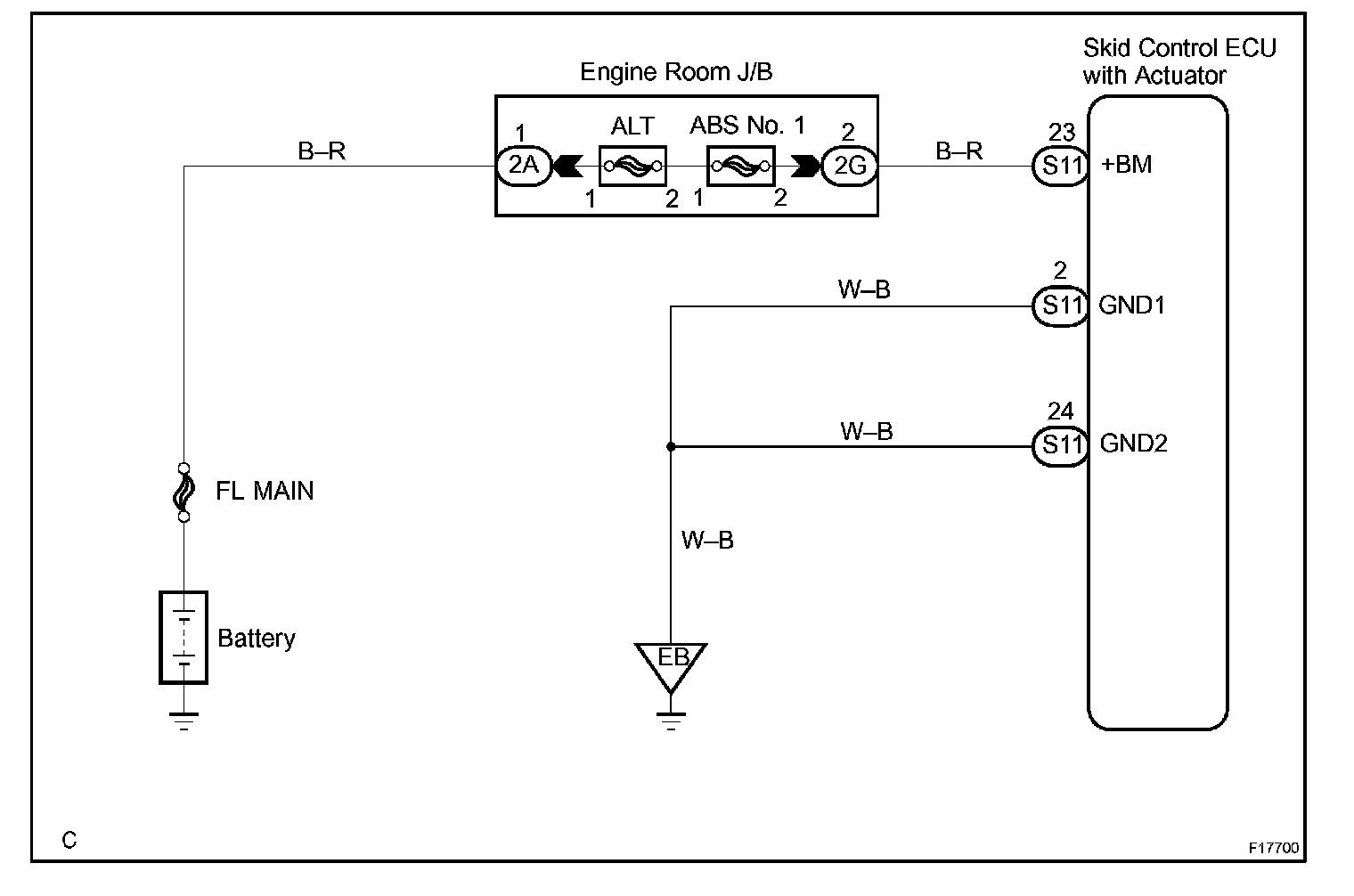

Wiring Diagram:

Step 1 - 2:

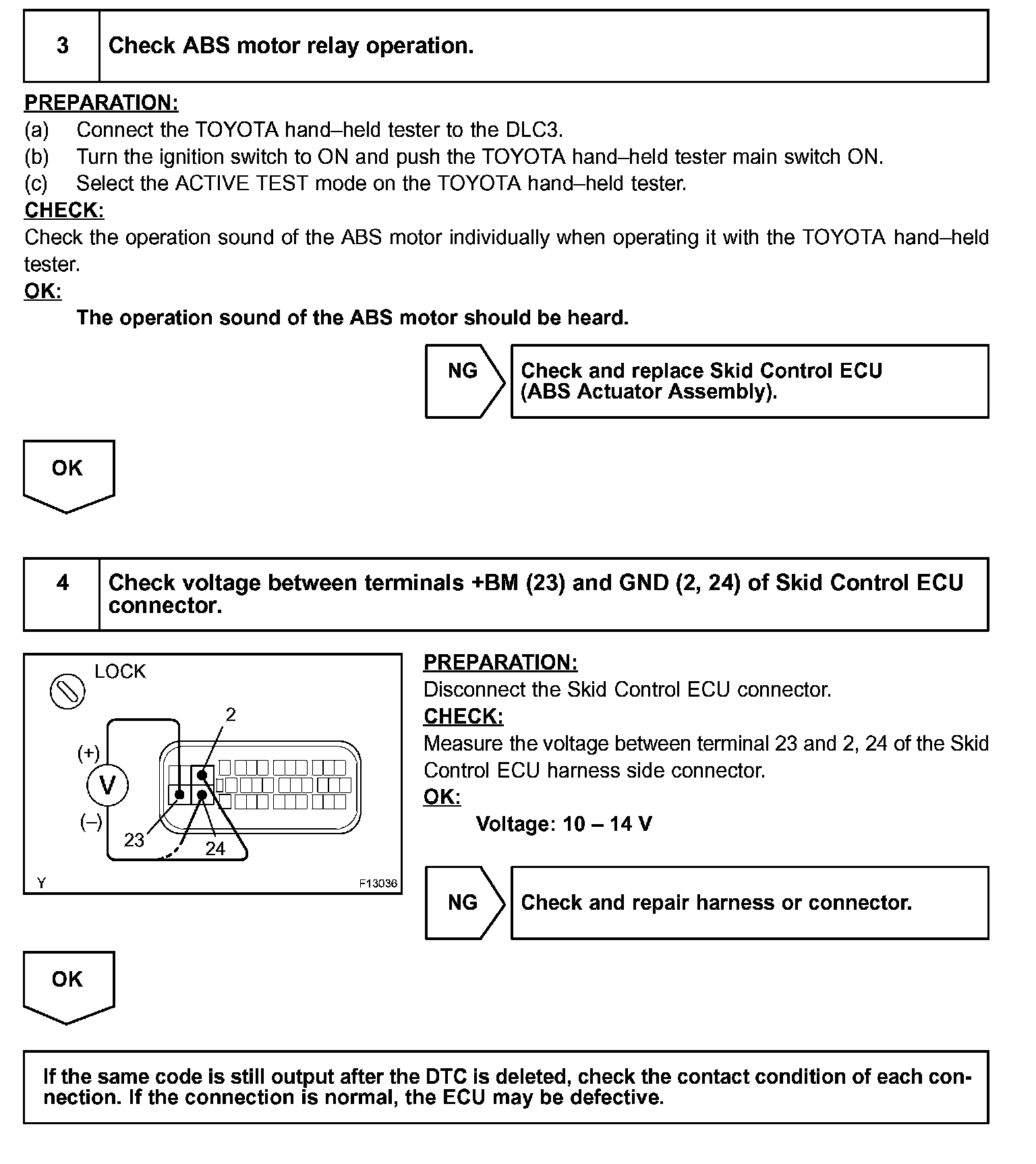

Step 3 - 4:

INSPECTION PROCEDURE
