ABS (Antilock Brake System)
DIAGNOSTIC TROUBLE CODE CHARTHINT:
- Using SST 09843-18040, connect the terminals Tc and CG of the DLC3.
- If any abnormality is not found as inspecting parts, inspect ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed for the code. For details of each code, turn to the respective "DTC No." in the DTC chart.
C0278/11 - C1249/49:

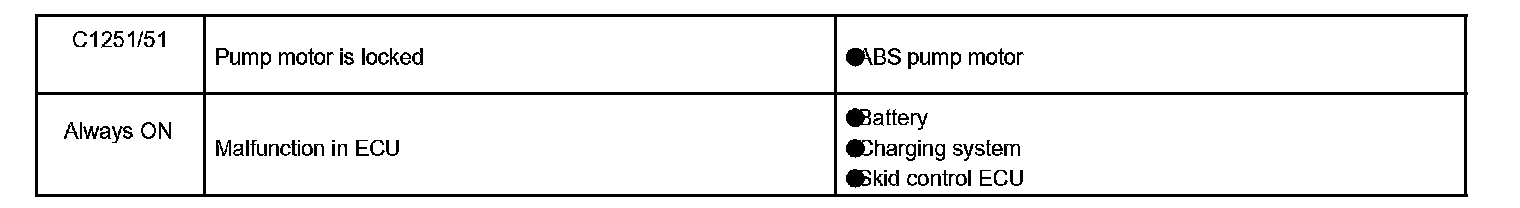

C1251/51 - Always On:
HINT: There is a case that hand-held tester cannot be used when the ABS warning light remains ON.

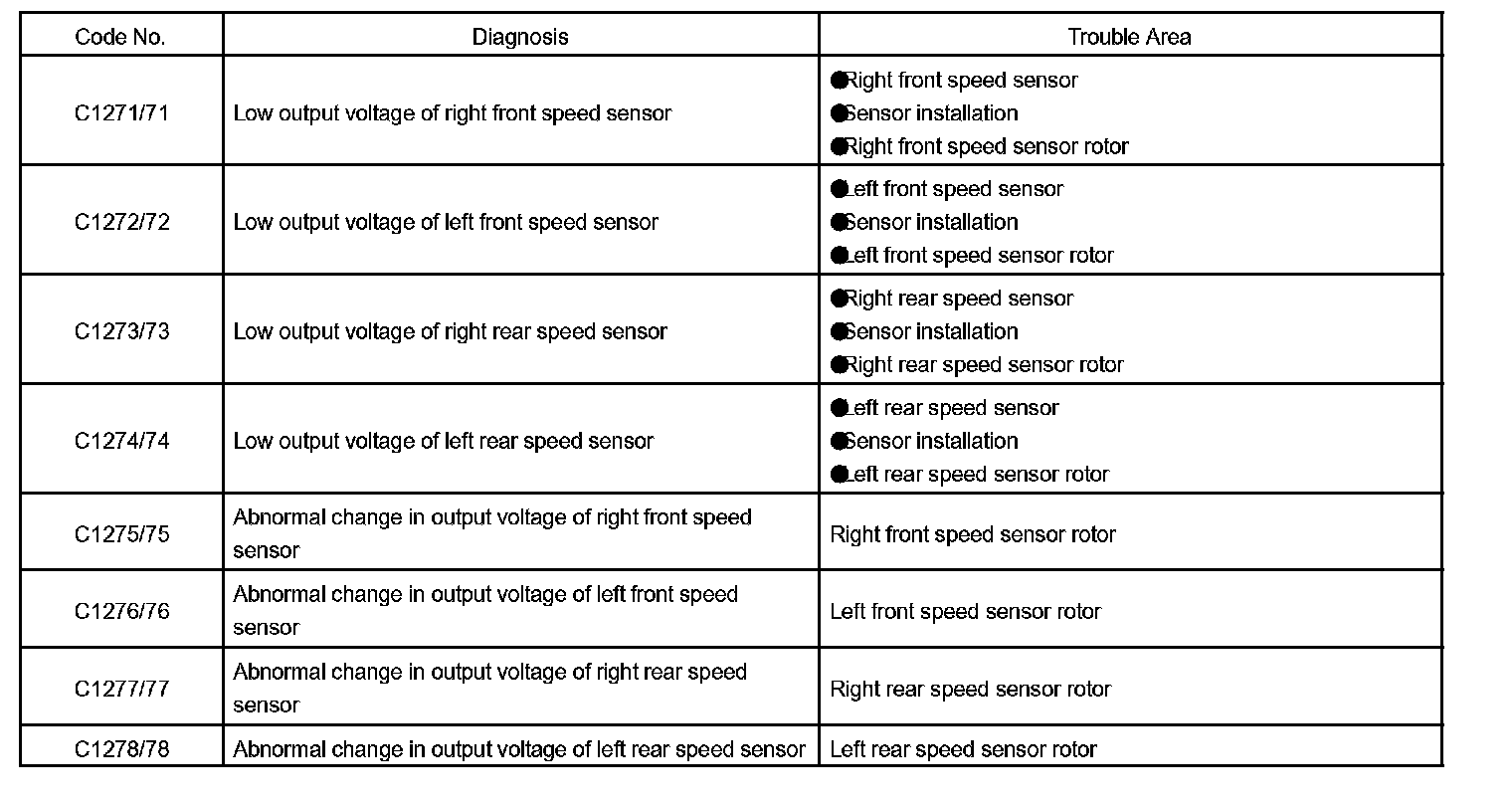

C1271/71 - C1278/78:
DTC of speed sensor check function
