Pinout Values and Diagnostic Parameters

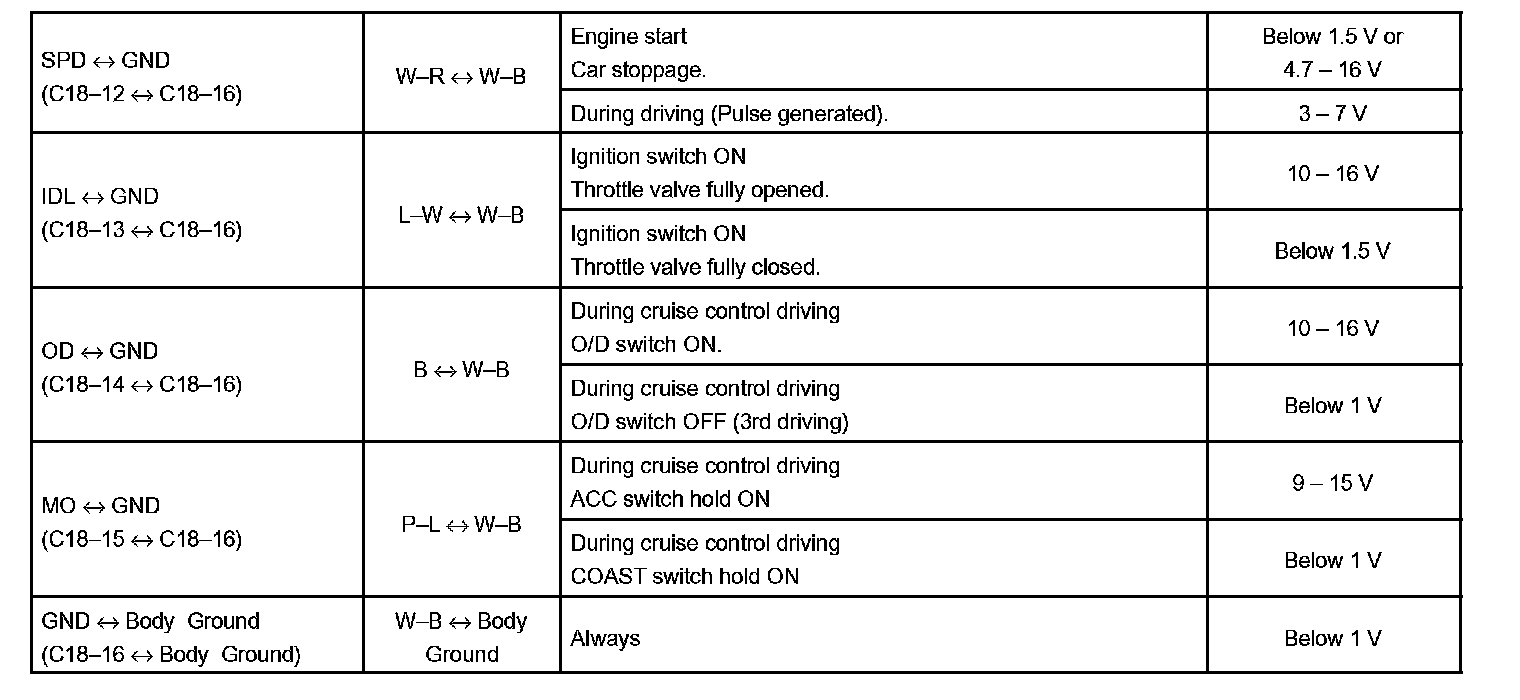

Terminals Of Control Module / Pinouts Part 1:
Terminals Of Control Module / Pinouts Part 2:
