Blower Motor Resistor: Testing and Inspection

BLOWER RESISTOR INSPECTION

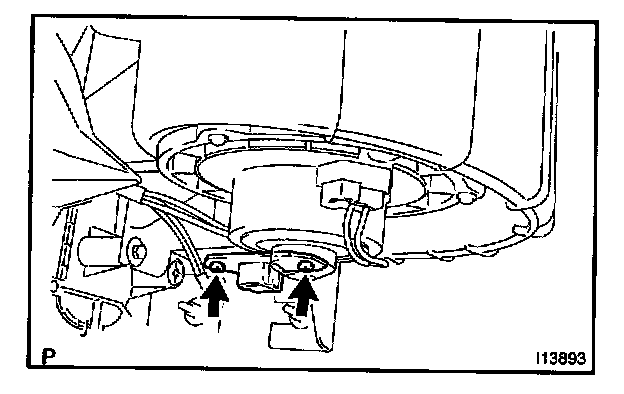

1. REMOVE BLOWER RESISTOR
a. Disconnect the connector.
b. Remove the 2 screws and the blower resistor.







2. INSPECT BLOWER RESISTOR CONTINUITY
If continuity is not as specified, replace the blower resistor.

3. INSTALL BLOWER RESISTOR
a. Install the blower resistor and 2 screws.
b. Connect the connector.
