Blower Motor: Testing and Inspection

BLOWER MOTOR INSPECTION

1. REMOVE GLOVE COMPARTMENT PARTS

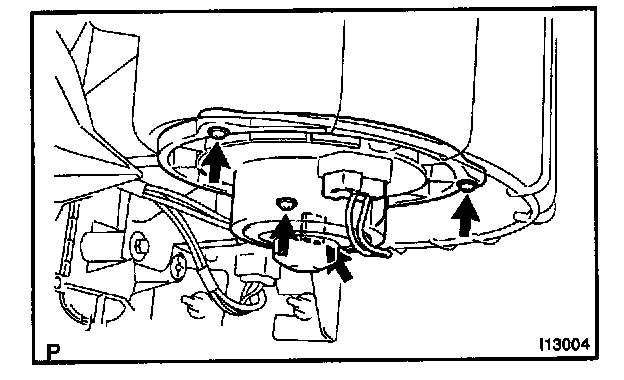

2. REMOVE BLOWER MOTOR
a. Remove the wire harness clamp and disconnect the connector.
b. Remove the 3 screws and motor.




3. INSPECT BLOWER MOTOR OPERATION
Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, then check that the motor operations smoothly.
If operation is not as specified, replace the blower motor.

4. INSTALL BLOWER MOTOR
a. Install the motor and 3 screws.
b. Connect the connector and wire harness clamp.

5. INSTALL GLOVE COMPARTMENT PARTS
