Compressor Clutch Relay: Testing and Inspection
MAGNETIC CLUTCH RELAY INSPECTION
1.
REMOVE MAGNETIC CLUTCH RELAY FROM ENGINE ROOM J/B
2.

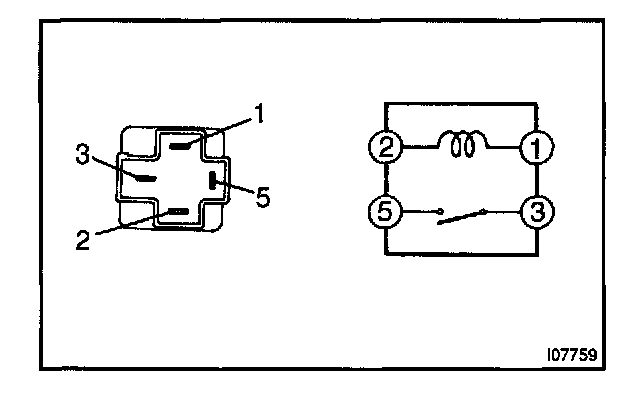

INSPECT MAGNETIC CLUTCH RELAY CONTINUITY
If continuity is not as specified, replace the relay.
