Instrument Cluster / Carrier: Service and Repair

Combination Meter:

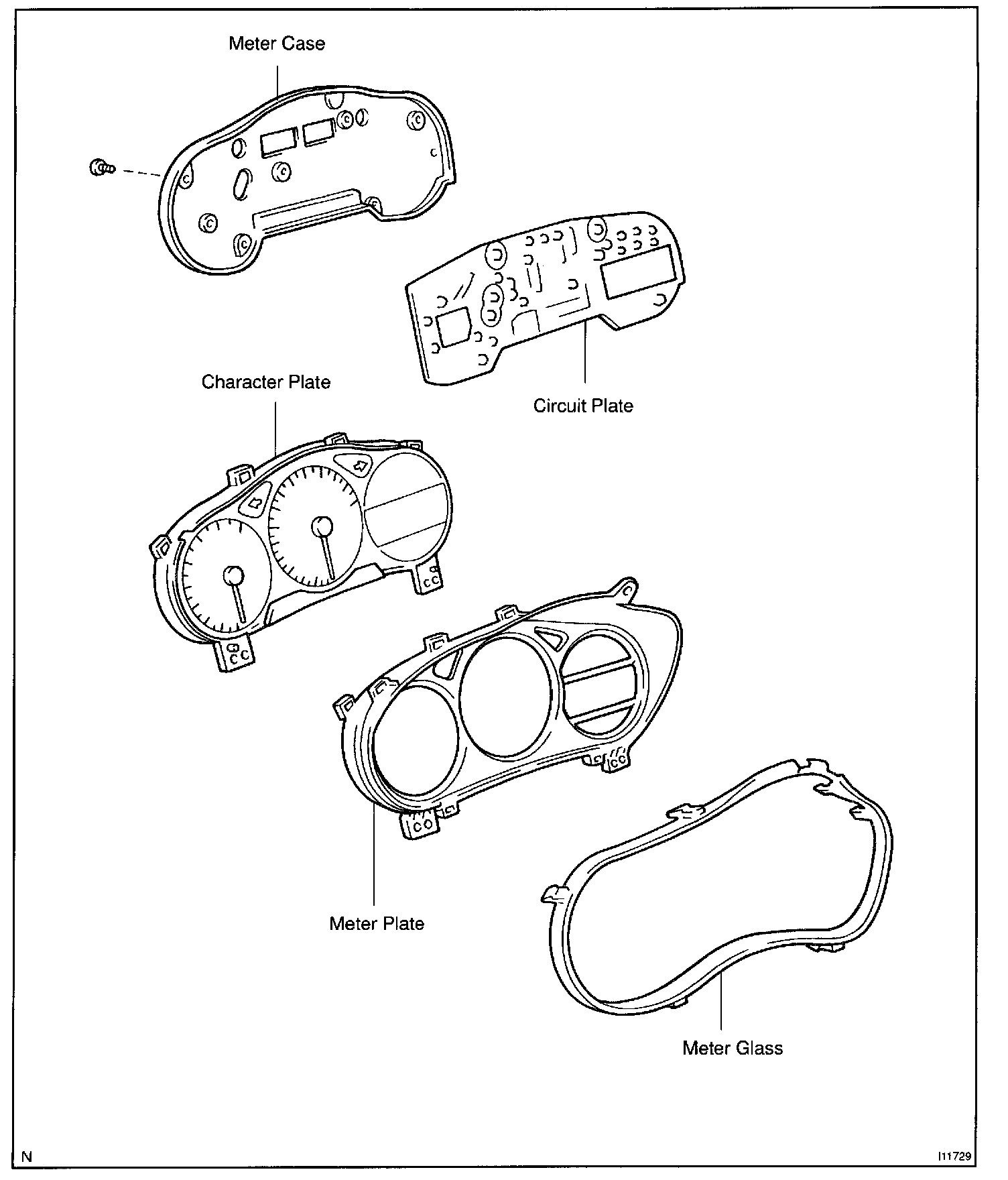

DISASSEMBLY

COMBINATION METER COVER:

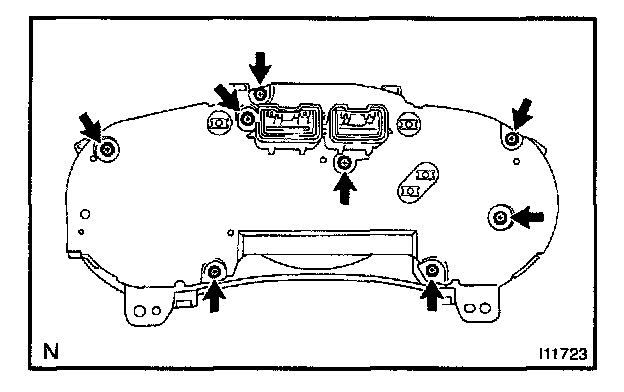

a. Remove the 8 screws.
b. Remove the combination meter cover.

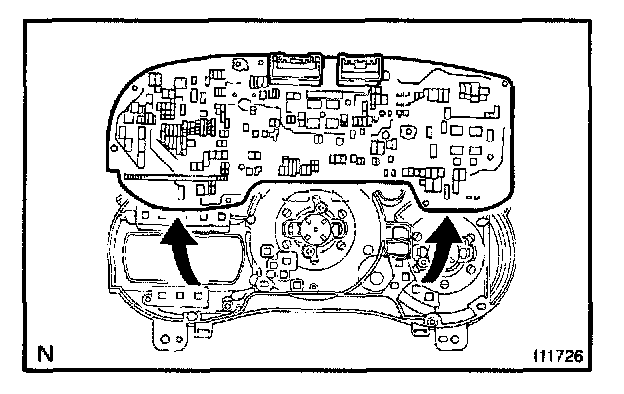

c. Remove the meter circuit plate.




d. Remove the 6 clips and the meter glass.

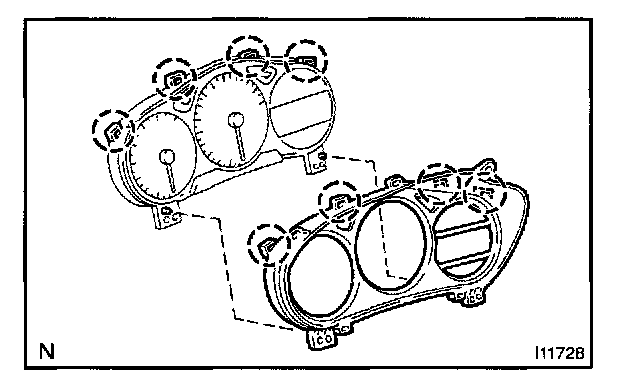

e. Remove the 4 clips and the meter plate.
