License Plate Lamp: Testing and Inspection

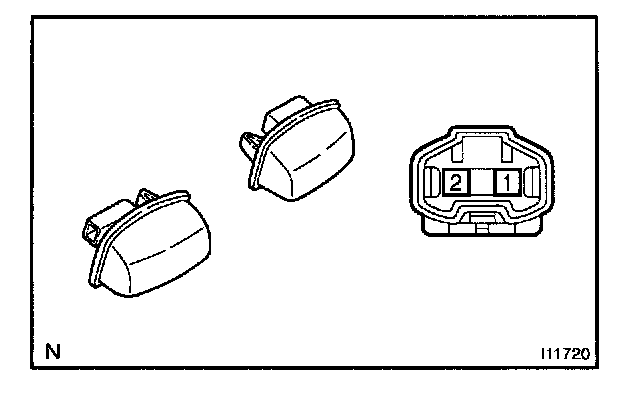

INSPECT LICENCE PLATE LIGHT CONTINUITY
Using an ohmmeter, check that continuity exists between terminals.
If continuity is not as specified, replace the light assembly or bulb.
