Power and Ground Distribution: Locations

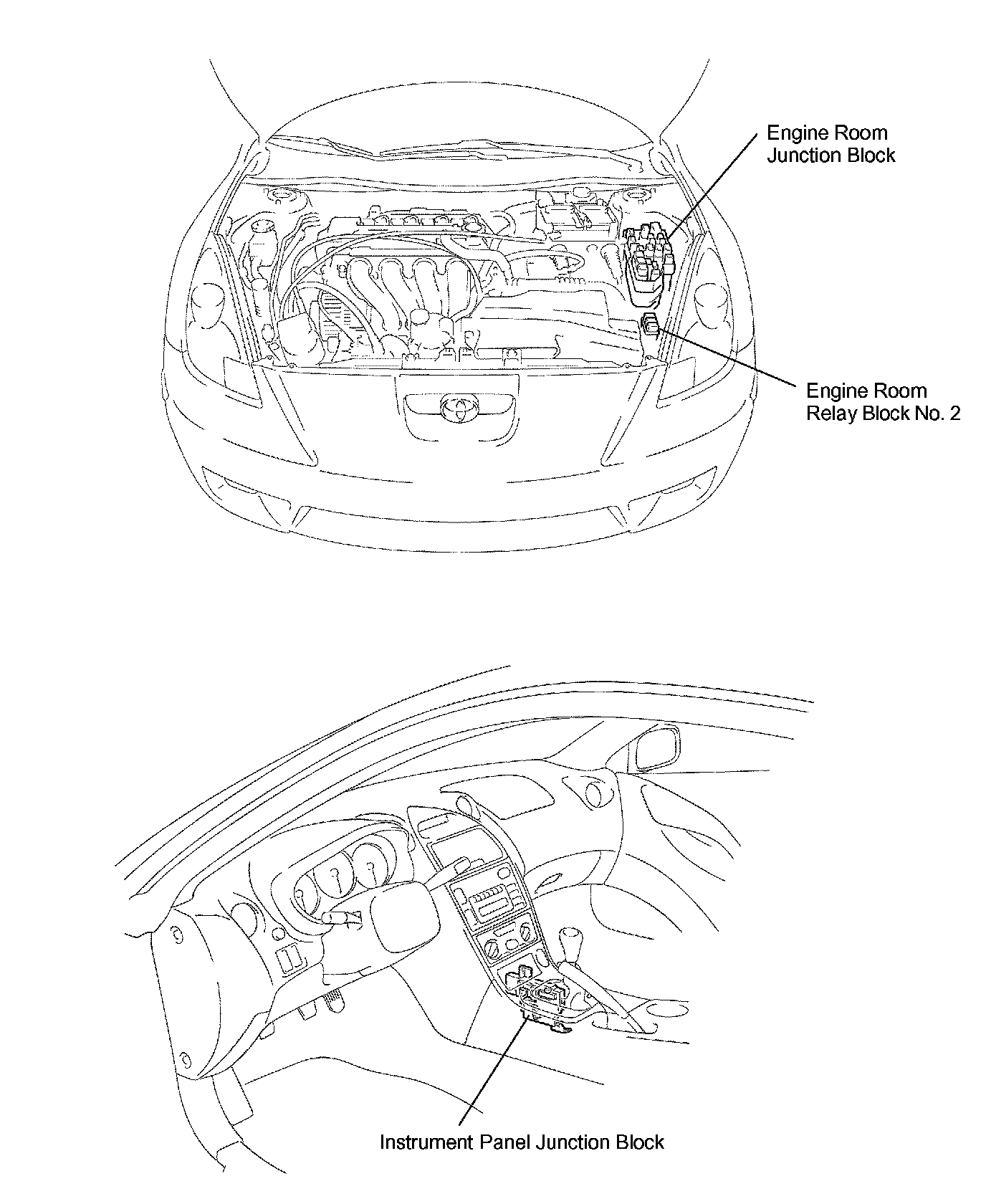

Power Source Locations:

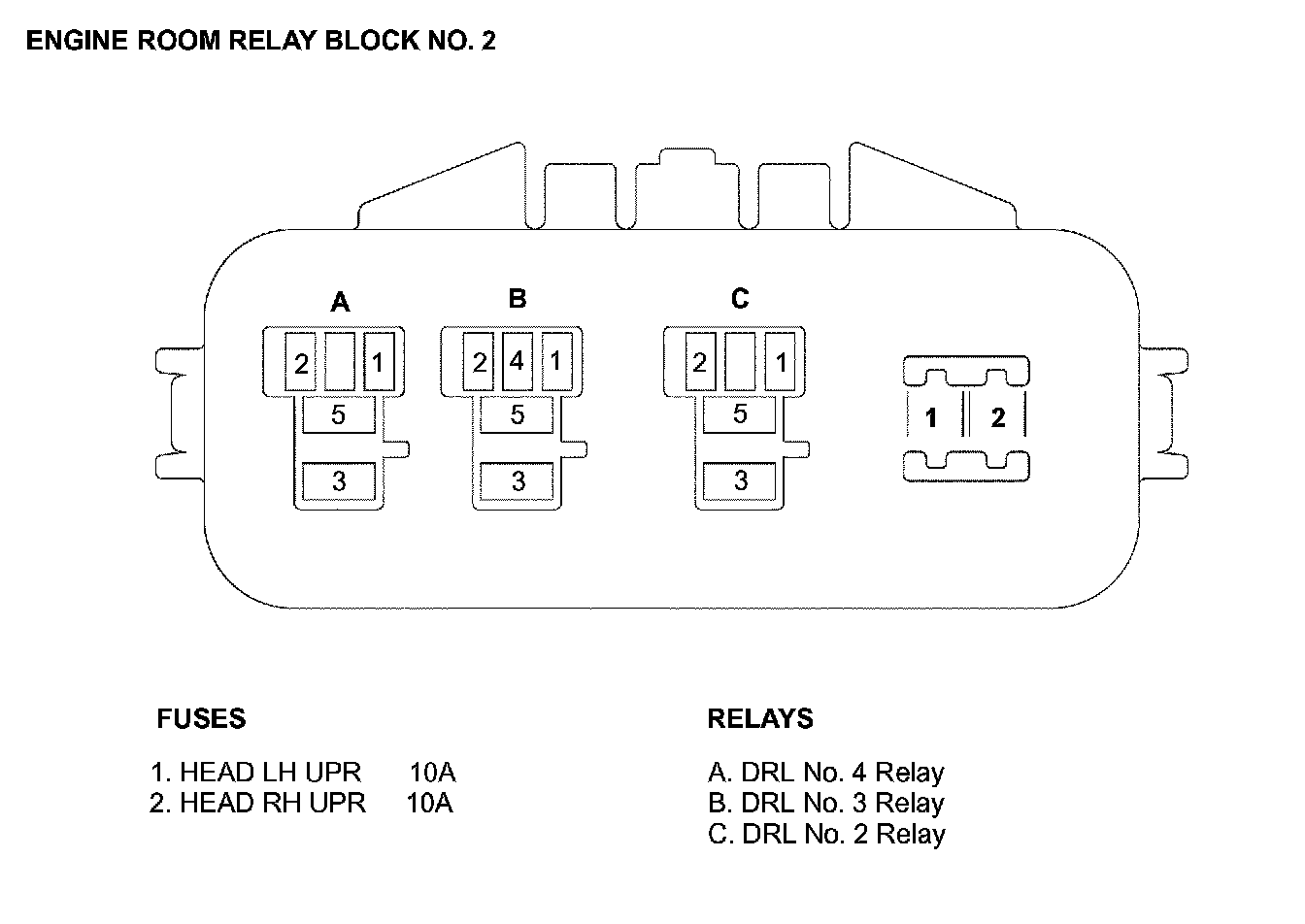

Engine Room Junction Block:

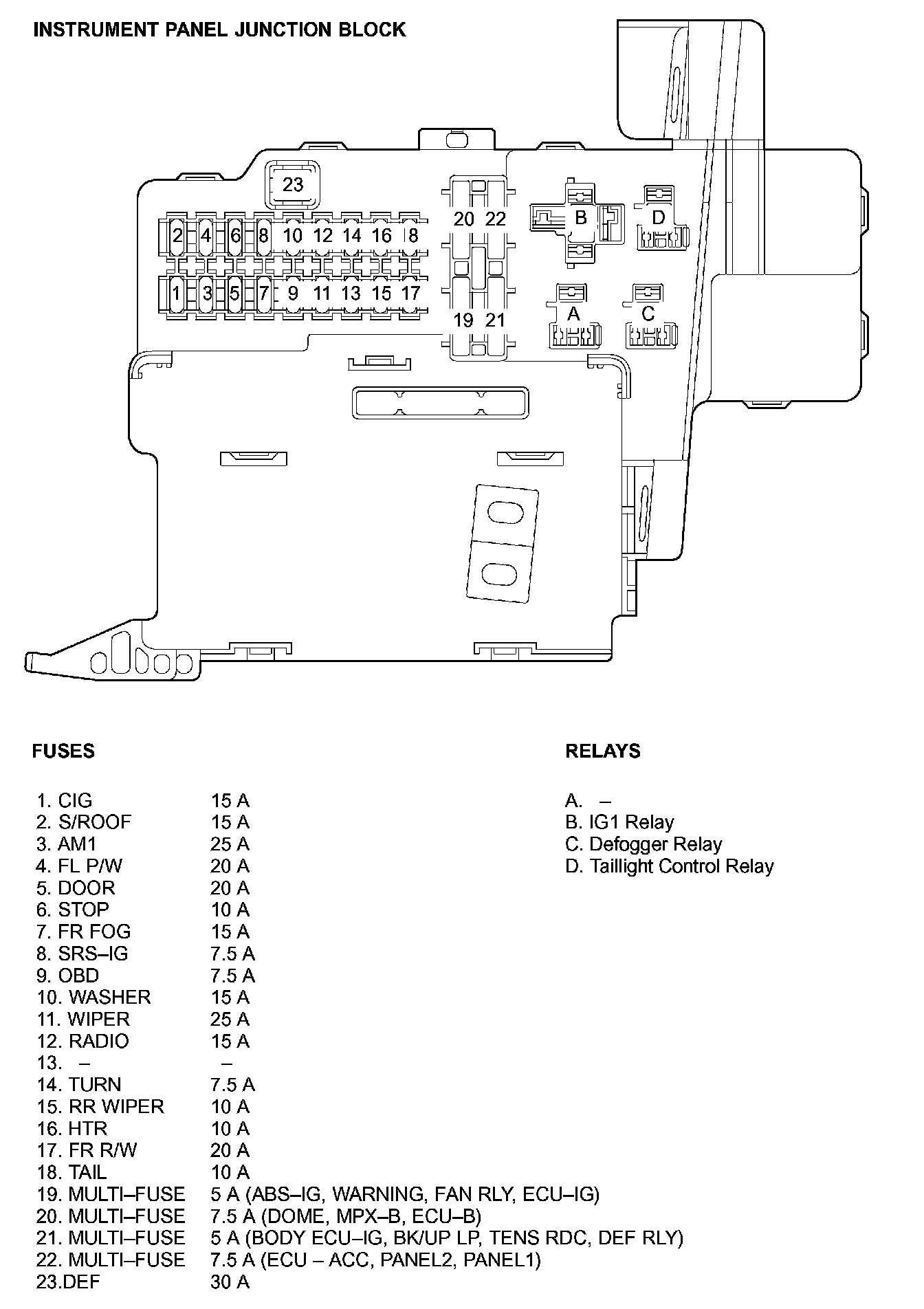

Instrument Panel Junction Block:





Engine Room Junction Block:





Power Source
