ABS w/ EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

C0200/31 - C1236/36:

C1238/38 - U0124/95:

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, refer to the respective "DTC No." in the DTC chart.

HINT:
- In some cases, the hand-held tester cannot be used when the ABS warning light remains on.
- When U0073/94, U0123/62, U0124/95 or U0126/63 are output, inspect and repair the trouble areas indicated by U0073/94, U0123/62, U0124/95 or U0126/63 first.

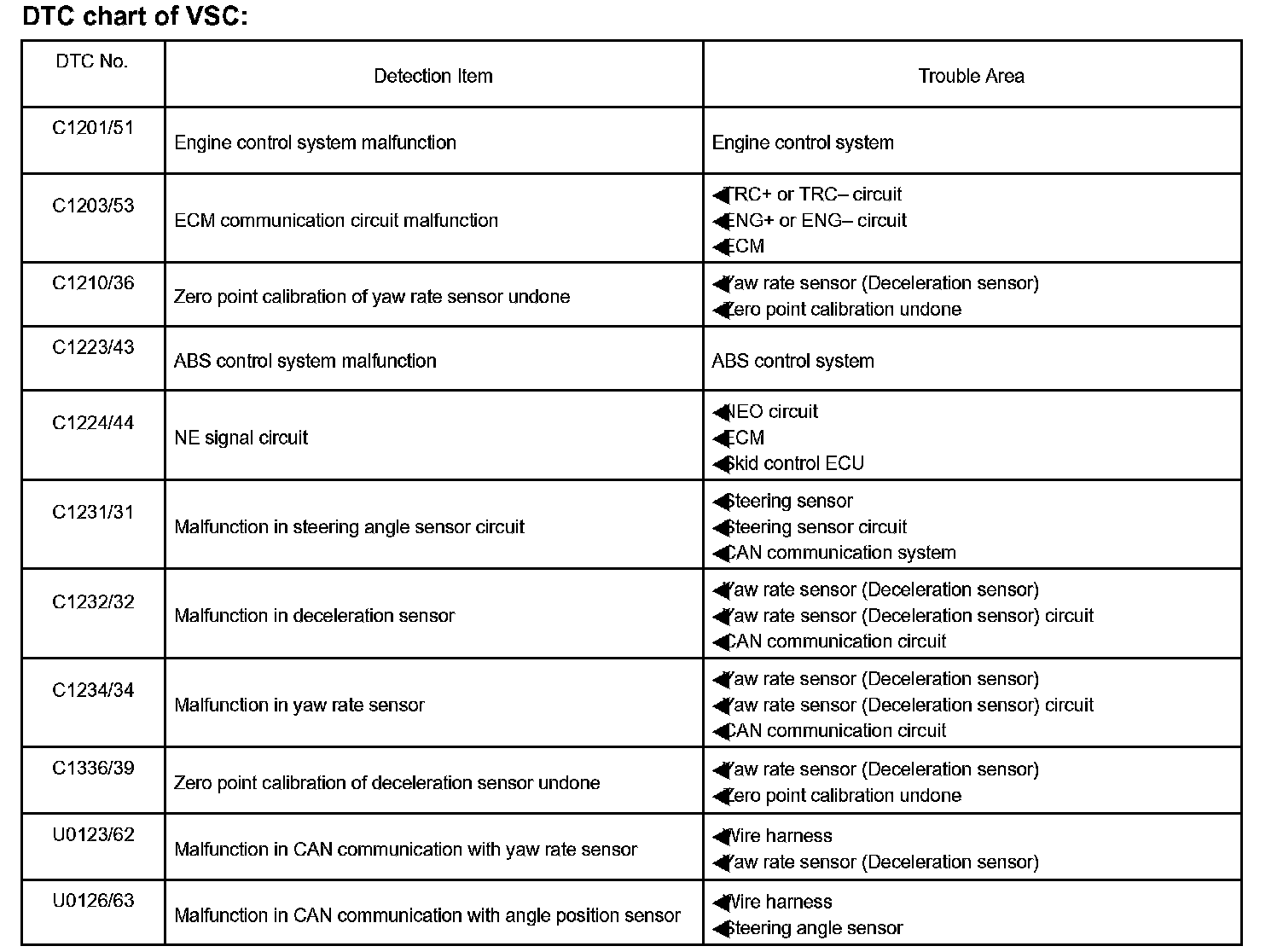

C1201/51 - U0126/63:

HINT: In some cases, the hand held tester cannot be used when the VSC warning light remains on.
