Radio, Stereo, and Compact Disc

DIAGNOSTIC TROUBLE CODE CHART






HINT: Titles for each unit are stated in the following order: physical address (part name).

1. 190 (RADIO RECEIVER ASSY)

D6 - Df:

Df - E4:

a. Logical address: 01 (Communication control)

HINT:
- *1: This code may be recorded depending on the battery condition or engine start voltage even if no failure is detected.
- *2: If the power connector is disconnected after the engine starts, this code is recorded after 180 seconds.
- *3: This code may be stored if the ignition key is turned to the START position again with the engine running.
- *4: This code may be stored if the ignition key is held in the START position for one minute or more before returning to the ON position.

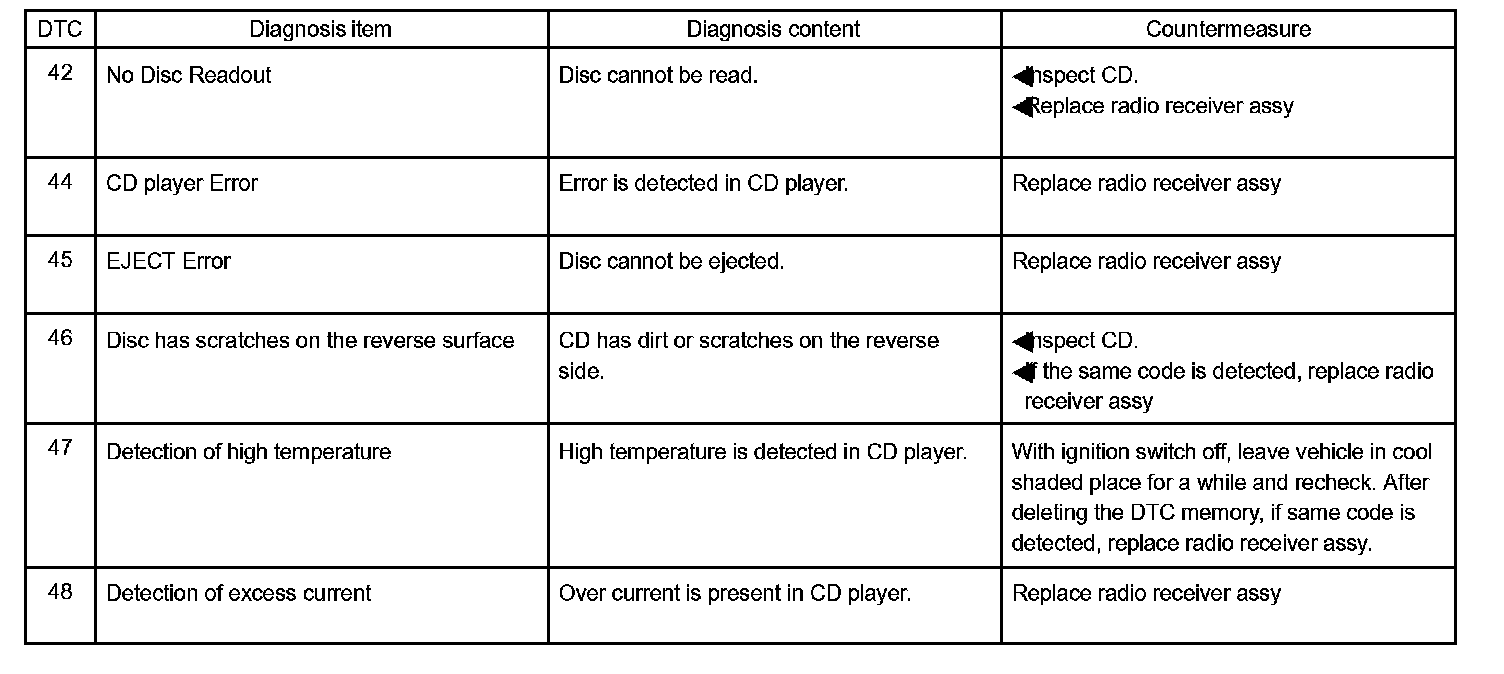

42 - 48:

b. Logical address: 62 (CD player)

42 - 52:

c. Logical address: 63 (In-dash CD changer)

2. 440 (STEREO COMPONENT AMPLIFIER ASSY)

D6 - DC:

DD - E3:

Logical address: 01 (Communication control)

HINT:
- *1: This code may be recorded depending on the battery condition or engine start voltage even if no failure is detected.
- *2: This code may be stored if the ignition key is turned to the START position again with the engine running.
- *3: This code may be stored if the ignition key is held in the START position for one minute or more before returning to the ON position.
- *4: If the device is reported as not existing during verification, check the power source circuit and AVC- LAN circuit for the device.
