Instrument Cluster / Carrier: Service and Repair

Instrument Panel/Meter:

COMBINATION METER ASSEMBLY

OVERHAUL

HINT: Installation is in the reverse order or removal.

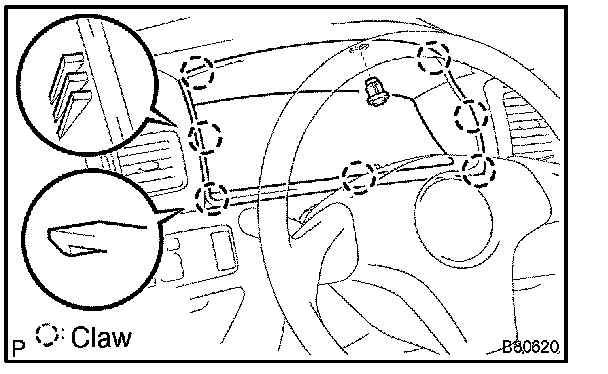

1. REMOVE METER HOOD SUB-ASSEMBLY
a. Remove the clip.
b. Using a screwdriver, disengage the 7 claws, then remove the meter hood sub-assembly.

HINT: Tape the screwdriver tip before use.

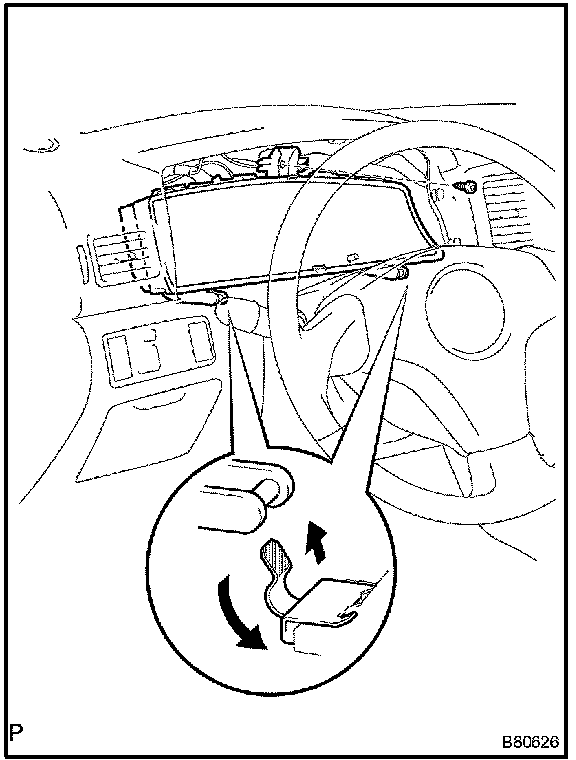

2. REMOVE COMBINATION METER ASSEMBLY
a. Remove the screw.
b. Disengage the 2 clips as shown in the illustration.
c. Disconnect the connector, then remove the combination meter.

3. REMOVE COMBINATION METER GLASS
a. Using a screwdriver, disengage the 8 claws, then remove the combination meter glass.

HINT: Tape the screwdriver tip before use.
