Center Mounted Brake Lamp: Service and Repair
CENTER STOP LAMP ASSEMBLYREPLACEMENT
1. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (W/O REAR SPOILER)
2. REMOVE CENTER STOP LAMP ASSEMBLY (W/O REAR SPOILER)

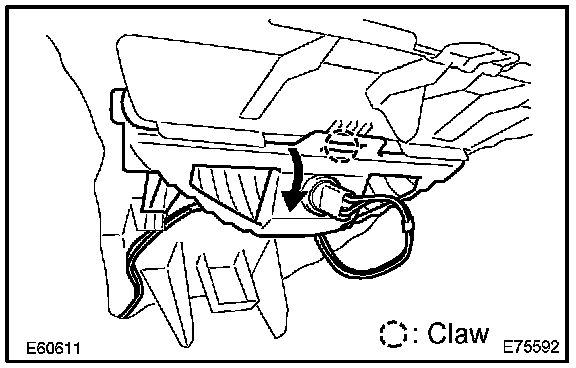

a. Remove the center stop lamp assembly as shown in the illustration.
3. REMOVE CENTER STOP LAMP ASSEMBLY (W/ REAR SPOILER)
a. Remove the 2 screws.
b. Disconnect the connector and remove the center stop lamp assembly.
