Drive Belt: Service and Repair

FAN AND GENERATOR V BELT (1ZZ-FE)

REPLACEMENT
1. REMOVE ENGINE UNDER COVER RH





2. REMOVE FAN AND GENERATOR V BELT

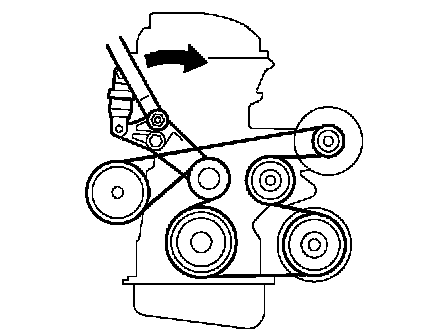

a. Turn the drive belt tensioner clockwise to relieve tension on the belt, and then remove the belt.
b. Carefully return the tensioner to the unloaded position.

NOTICE:
^ Be sure to connect SST and the tools so that they are inline when using.
^ When retracting the tensioner, turn it clockwise slowly in 3 sec. or more. Be sure to not apply force rapidly.
^ After the tensioner is retracted all the way, do not apply force any more than necessary.
