Electrical Specifications
Electrical Specifications

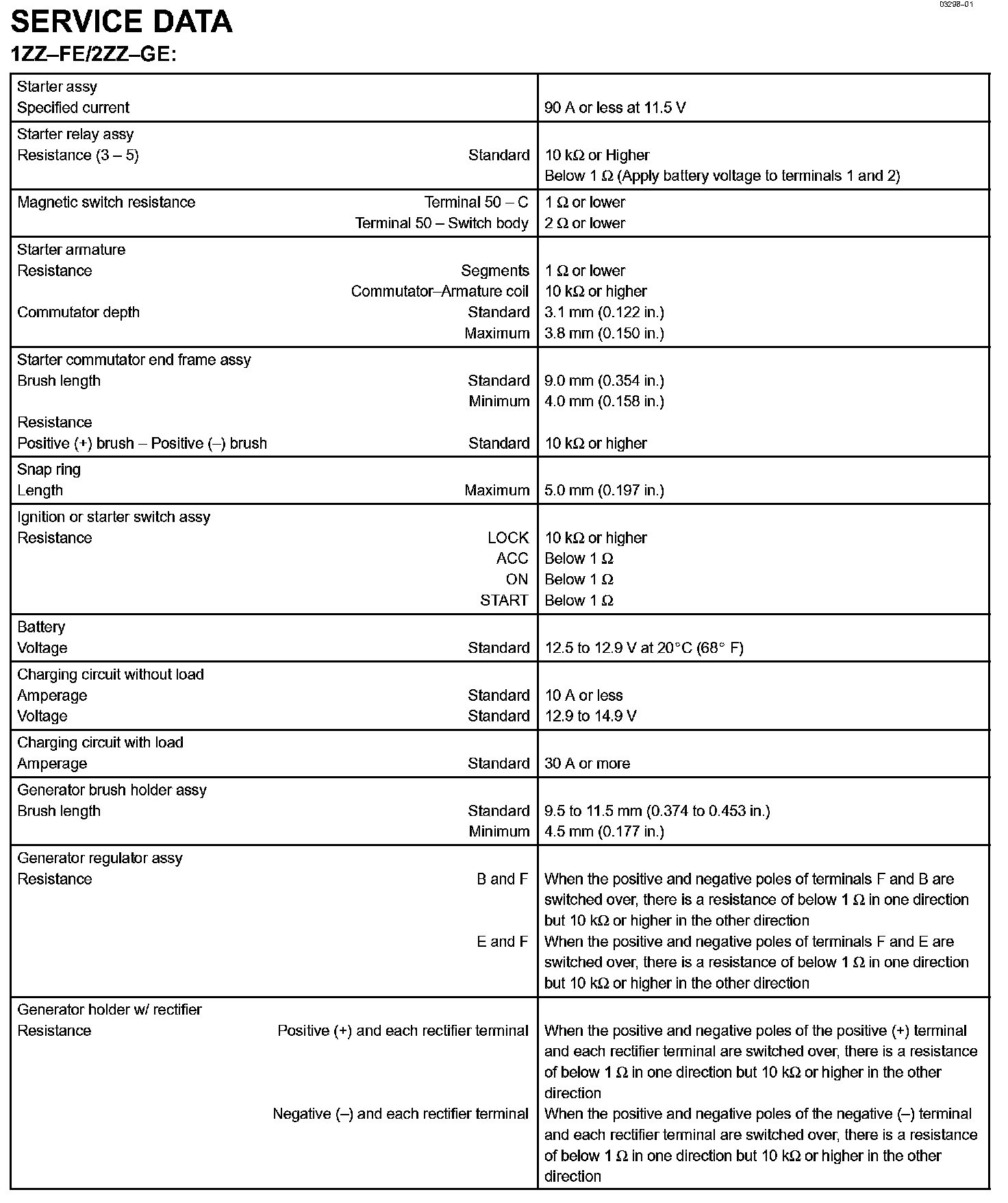

Starting & Charging - Service Data Part 1:

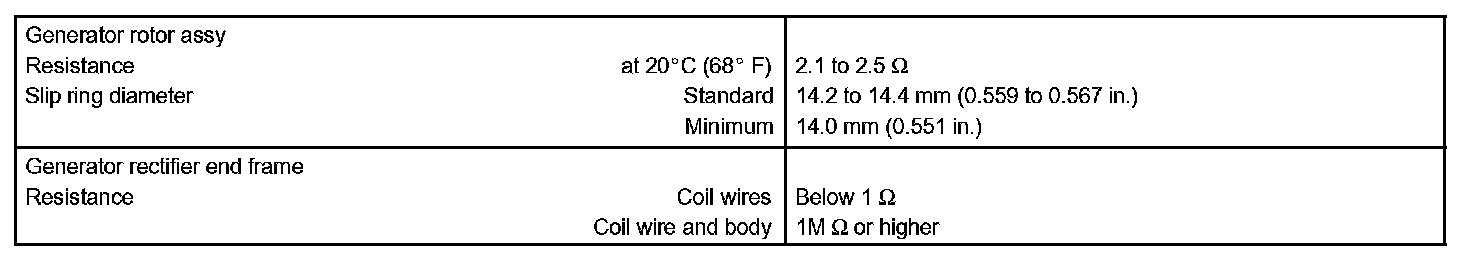

Starting & Charging - Service Data Part 2:
