Suspension: Tools and Equipment

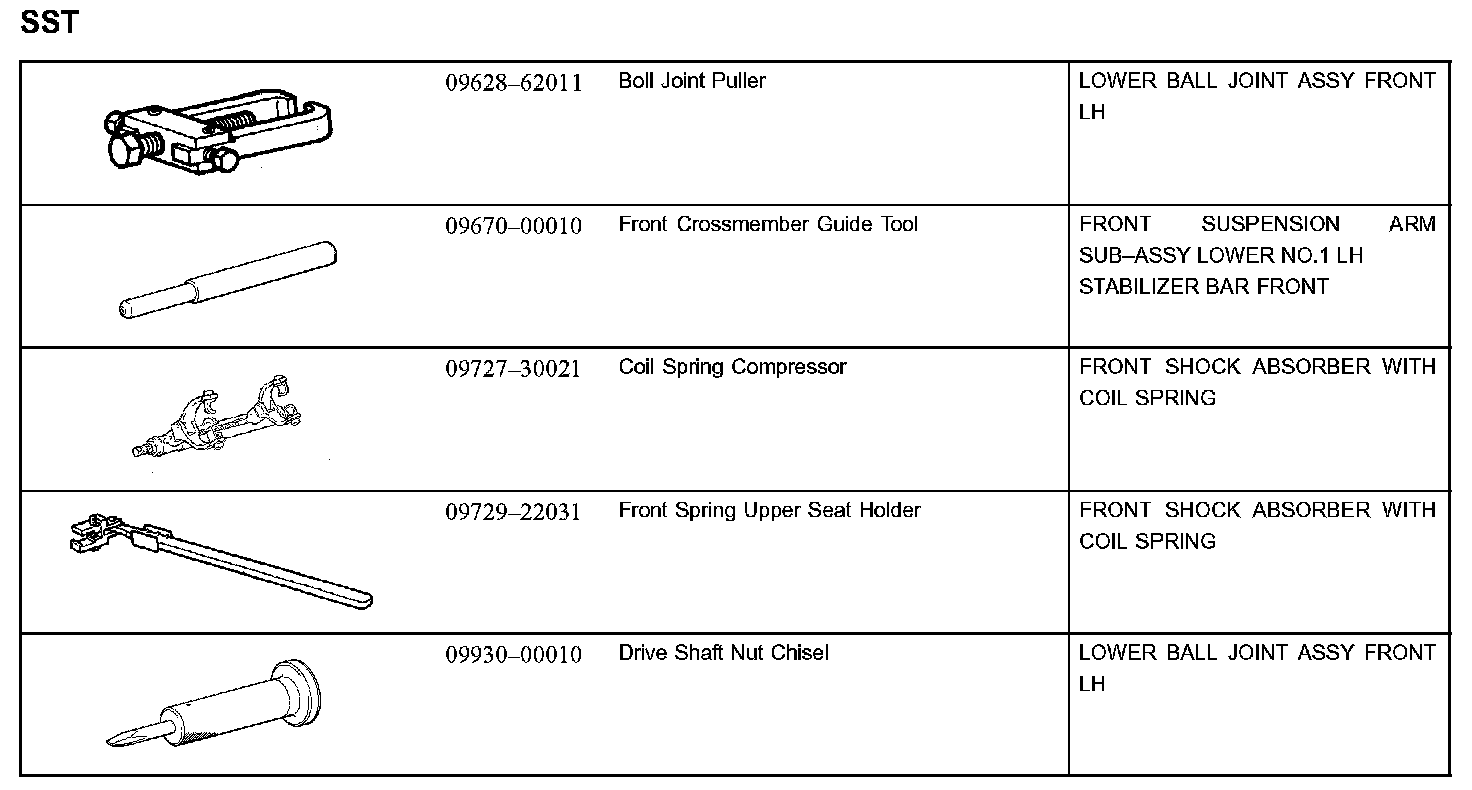

Front Suspension - SST:

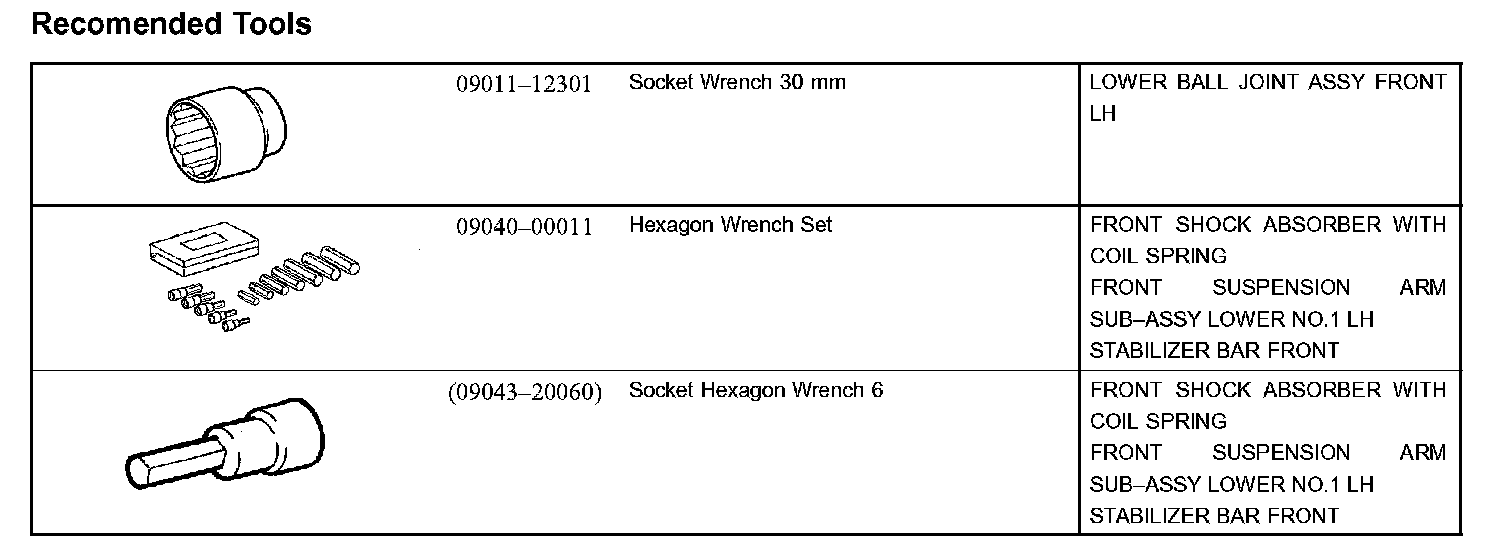

Front Suspension - Recommended Tools:

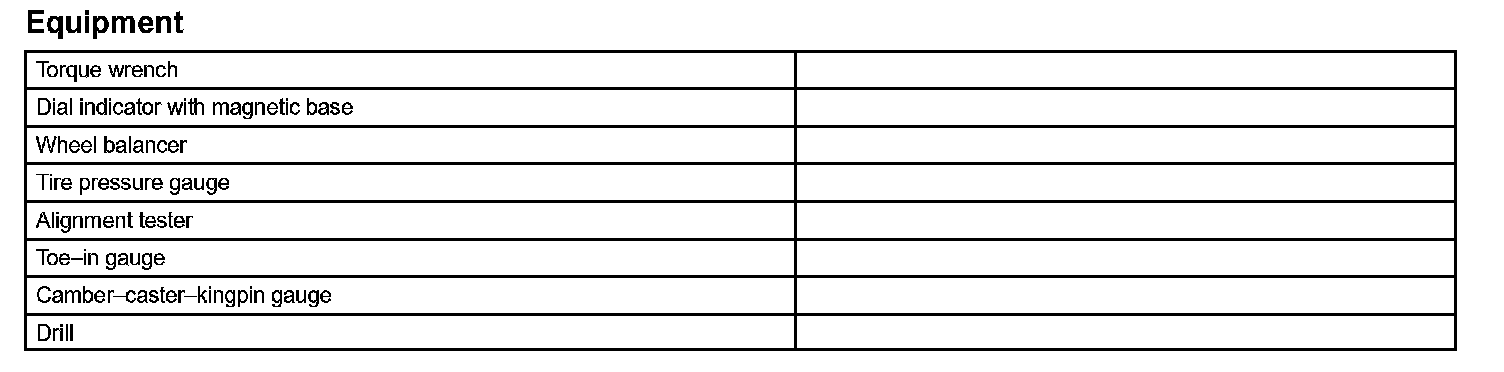

Front Suspension - Equipment:

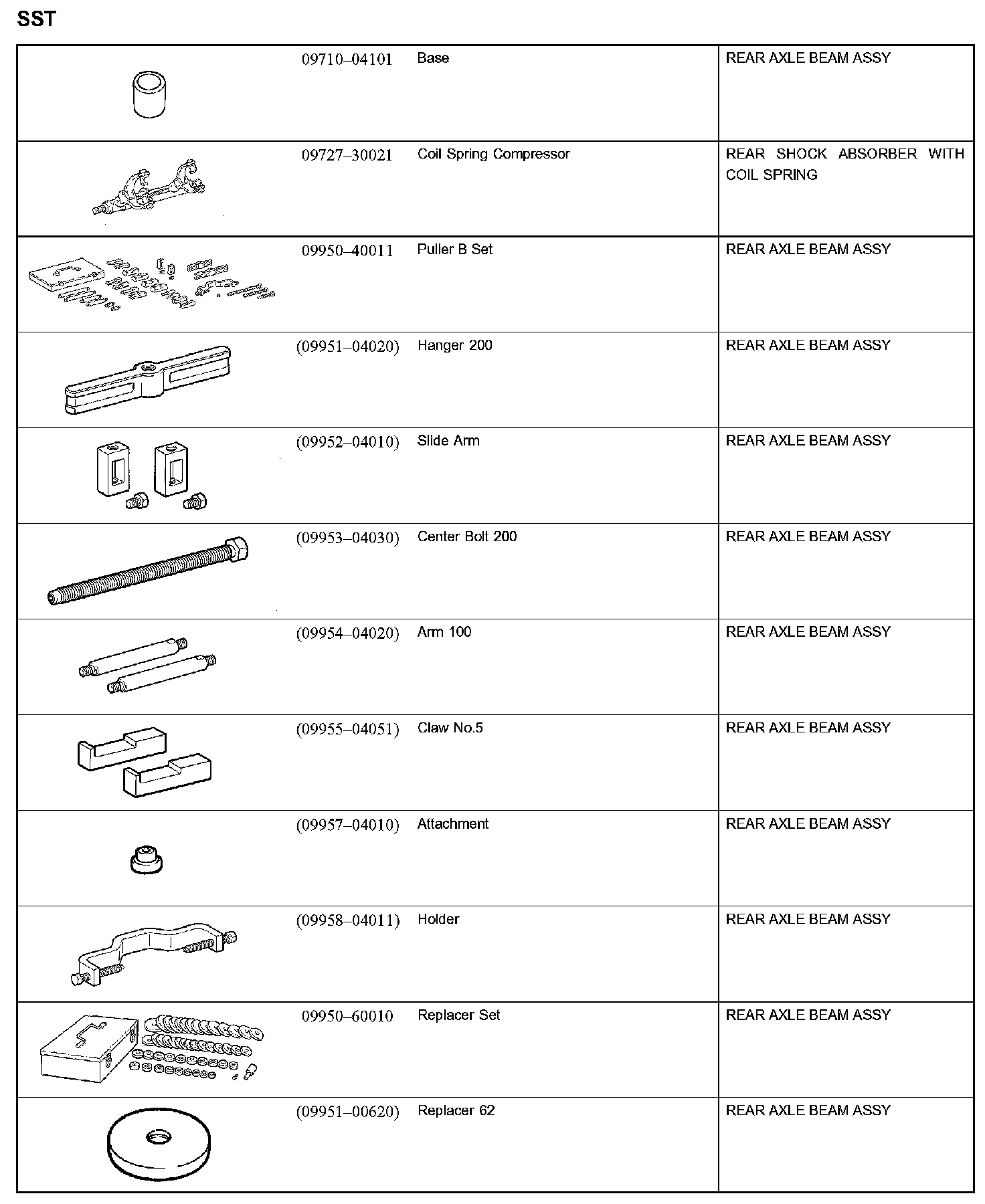

Rear Suspension - SST Part 1:

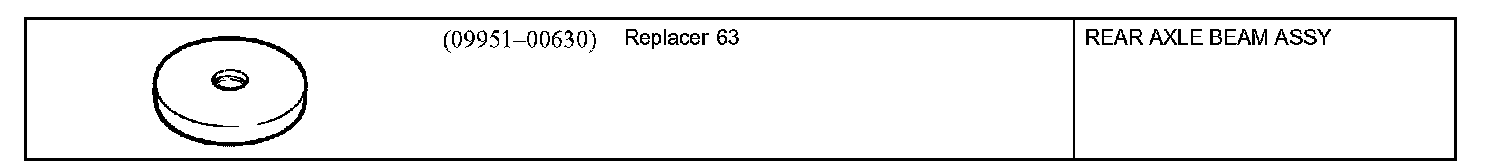

Rear Suspension - SST Part 2:

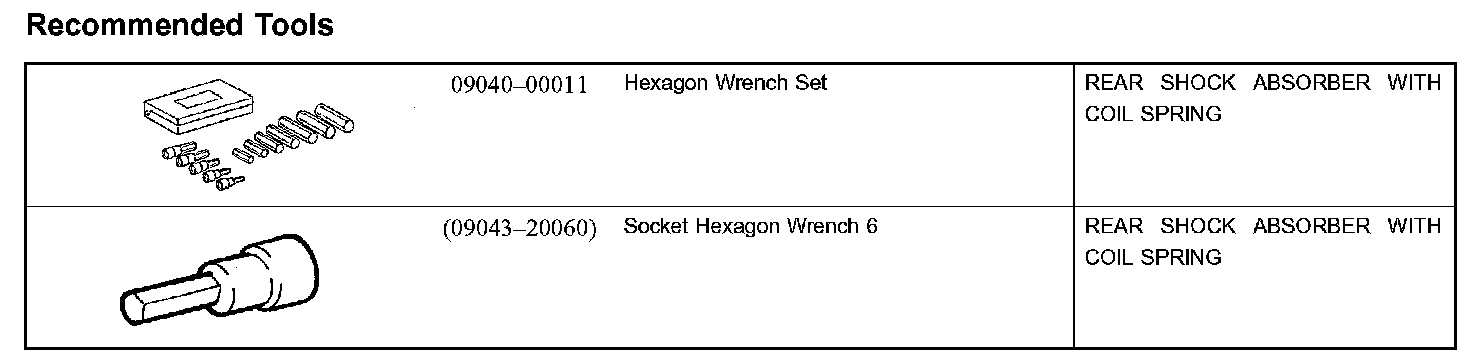

Rear Suspension - Recommended Tools:

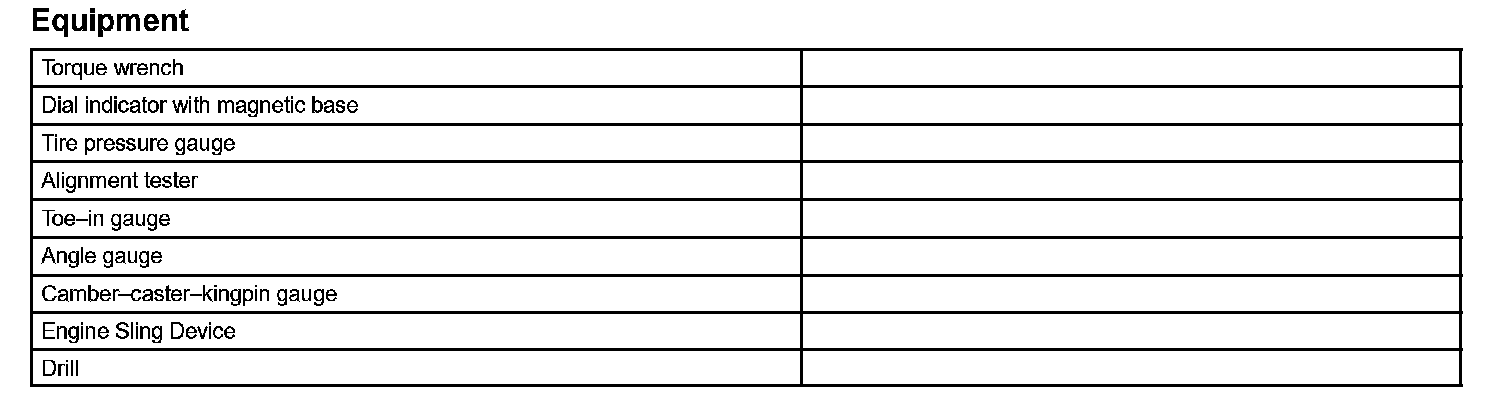

Rear Suspension - Equipment:
