Seats - Movement Or Noise

NVH
NV012-06

Title:
SEAT MOVEMENT/NOISE

Models:
'04 - '06 Corolla

December 6, 2006

Introduction

Some customers may complain of a seat noise or of a slight shifting sensation that can be felt in the lower seat cushion area. An improved seat assembly/seat frame assembly is now available to address this condition.

Applicable Vehicles

^ 2004 - 2006 model year Corolla vehicles produced BEFORE the Production Change Effective VINs shown below.

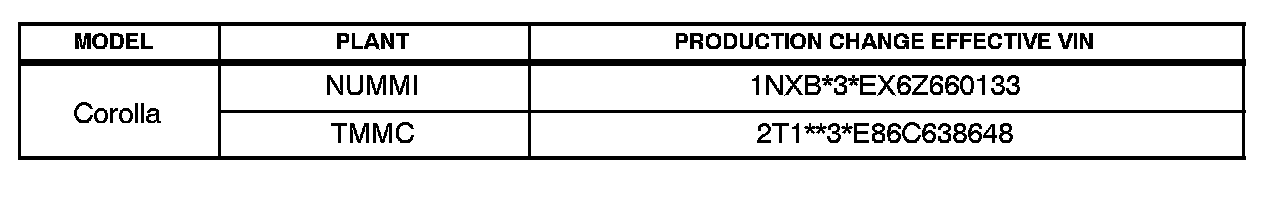

Production Change Information

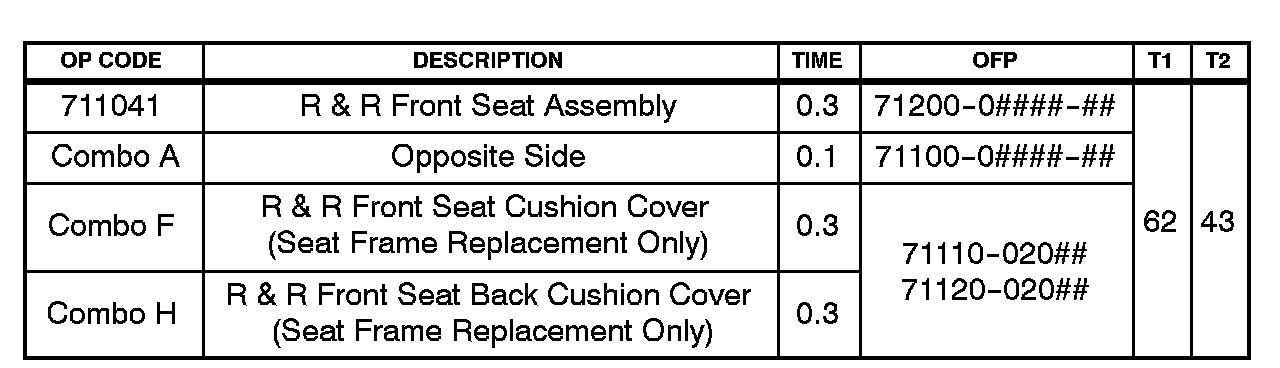

Warranty Information

Applicable Warranty*:
This repair is covered under the Toyota Comprehensive Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.

* Warranty application is limited to correction of a problem based upon a customer's specific complaint.





Parts Information

Repair Procedure

Replace seat assembly/seat frame assembly with NEW service part.

For seat assembly/seat frame assembly removal and installation instructions, refer to the Technical Information System (TIS):

^ 2004 or 2005 model year Corolla Repair Manual, Vehicle Interior - Seat - "Front Seat: Overhaul".

^ 2006 model year Corolla Repair Manual, Vehicle Interior - Seat -

^ "Seat: Front Seat Assembly (for LH Side): Removal".

^ "Seat: Front Seat Assembly (for LH Side): Installation".

^ "Seat: Front Seat Assembly (for LH Side): Reassembly".

^ "Seat: Front Seat Assembly (for LH Side): Disassembly".
