Manual Transmission/Transaxle: Locations

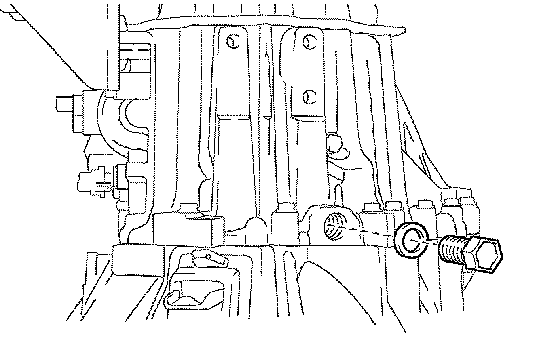

INSTALL MANUAL TRANSMISSION FILLER PLUG
Install the manual transmission filler plug with a new gasket.
Torque: 39 Nm (400 kgf-cm, 29 ft. lbs.)





INSTALL DRAIN (MTM) PLUG SUB-ASSY
Install the drain (MTM) plug sub-assy with a new gasket.
Torque: 39 Nm (400 kgf-cm, 29 ft. lbs.)
