DTC B0107 Short in P Squib Circuit (to Ground)

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P squib circuit consists of the airbag sensor assembly and the front passenger airbag assembly. The circuit instructs the SRS to deploy when the relevant conditions are met.

For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B0107 is recorded when a short to ground is detected in the P squib circuit.

Wiring Diagram:

Step 1 - 2:

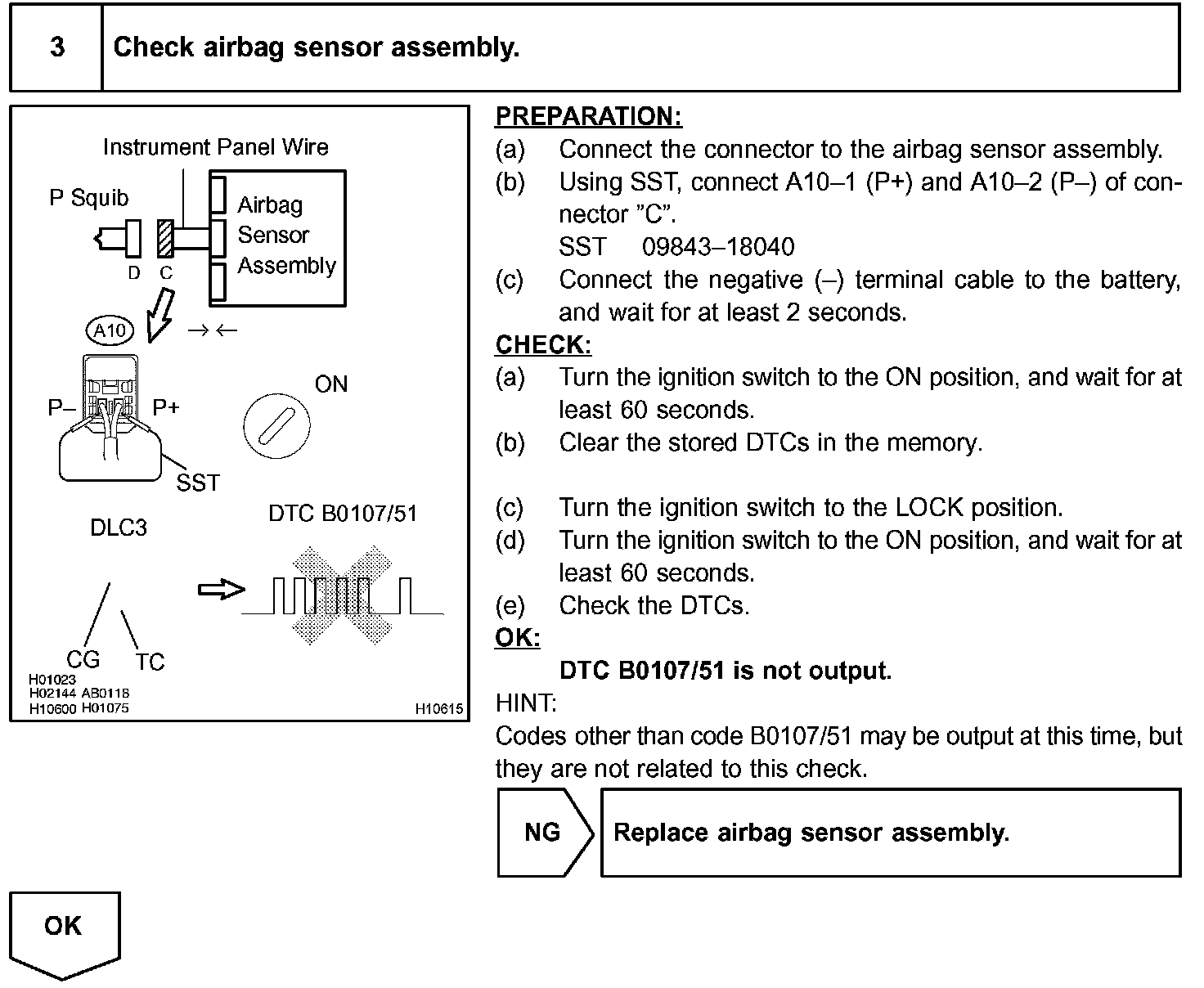

Step 3:

Step 4:

INSPECTION PROCEDURE
