B0110

DTC B0110 Short in Side Squib RH Circuit

CIRCUIT DESCRIPTION

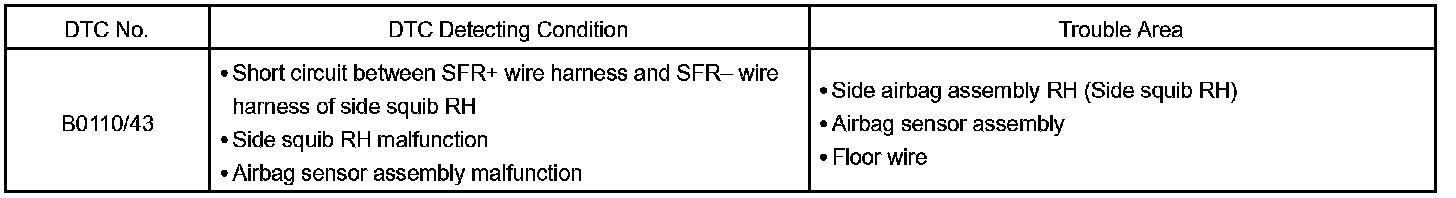

DTC Detecting Condition:

The side squib RH circuit consists of the airbag sensor assembly and the side airbag assembly RH. The circuit instructs the SRS to deploy when the relevant conditions are met.

For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B0110 is recorded when a short circuit is detected in the side squib RH circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

Step 4:

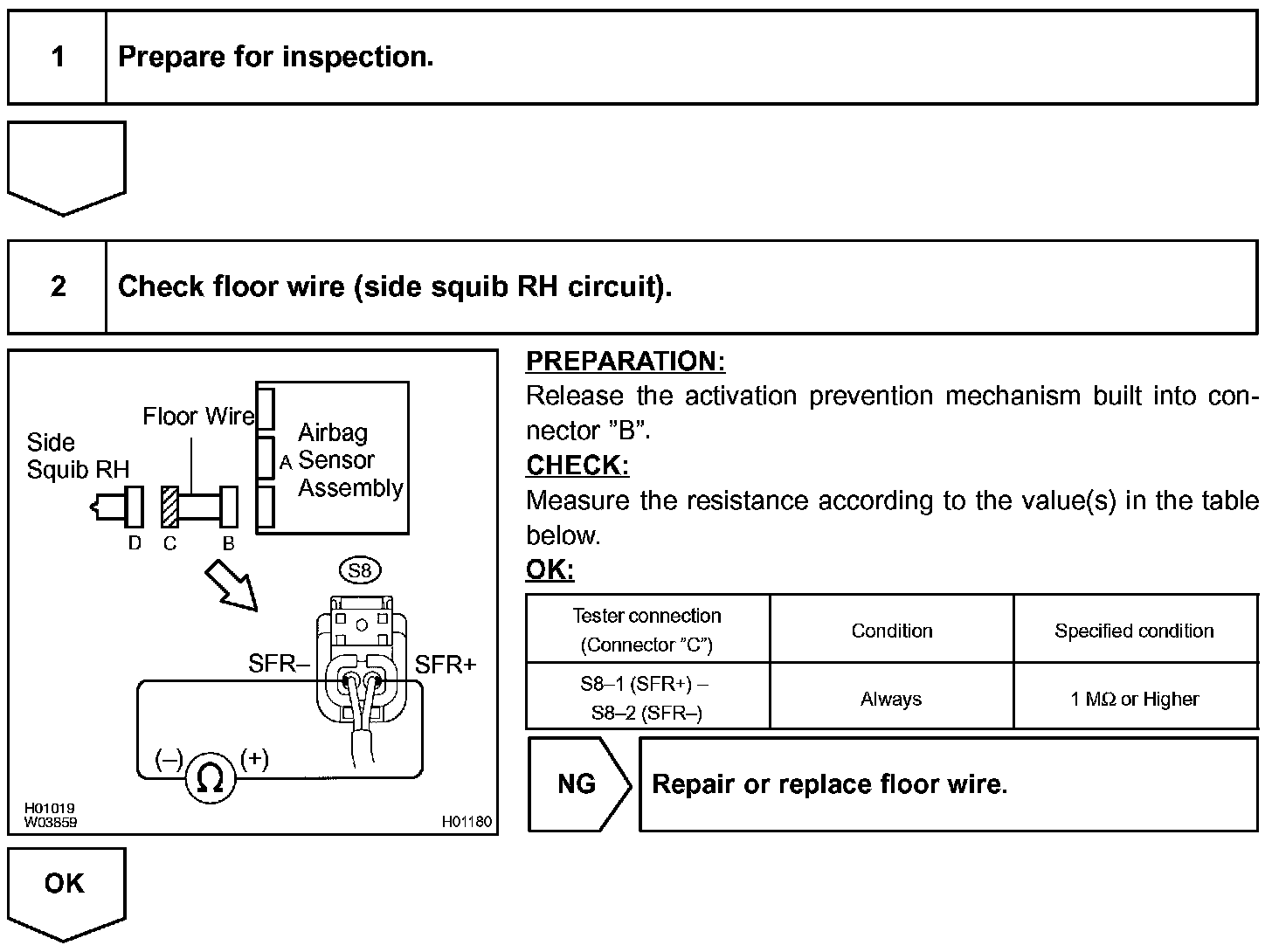

INSPECTION PROCEDURE
