B0115

DTC B0115 Short in Side Squib LH Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The side squib LH circuit consists of the airbag sensor assembly and the side airbag assembly LH. The circuit instructs the SRS to deploy when the relevant conditions are met.

For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B0115 is recorded when a short circuit is detected in the side squib LH circuit.

Wiring Diagram:

Step 1 - 2:

Step 3:

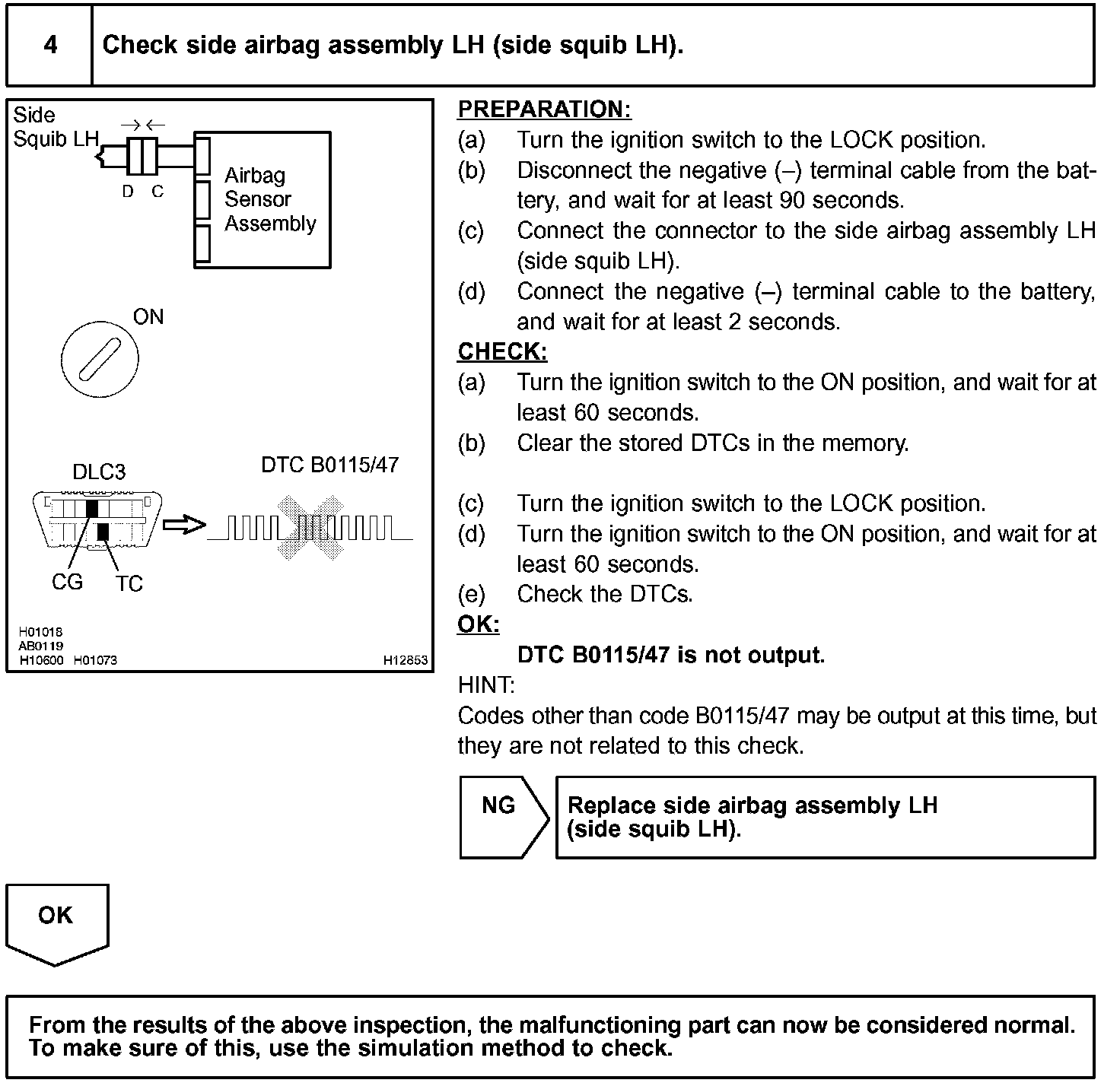

Step 4:

INSPECTION PROCEDURE
