B0135

DTC B0135 Short in P/T Squib LH Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The P/T squib LH circuit consists of the airbag sensor assembly and the seat belt pretensioner LH. The circuit instructs the SRS to deploy when the relevant conditions are met.

For details of the functions of each component, see DESCRIPTION AND OPERATION.

DTC B0135 is recorded when a short circuit is detected in the P/T squib LH circuit.

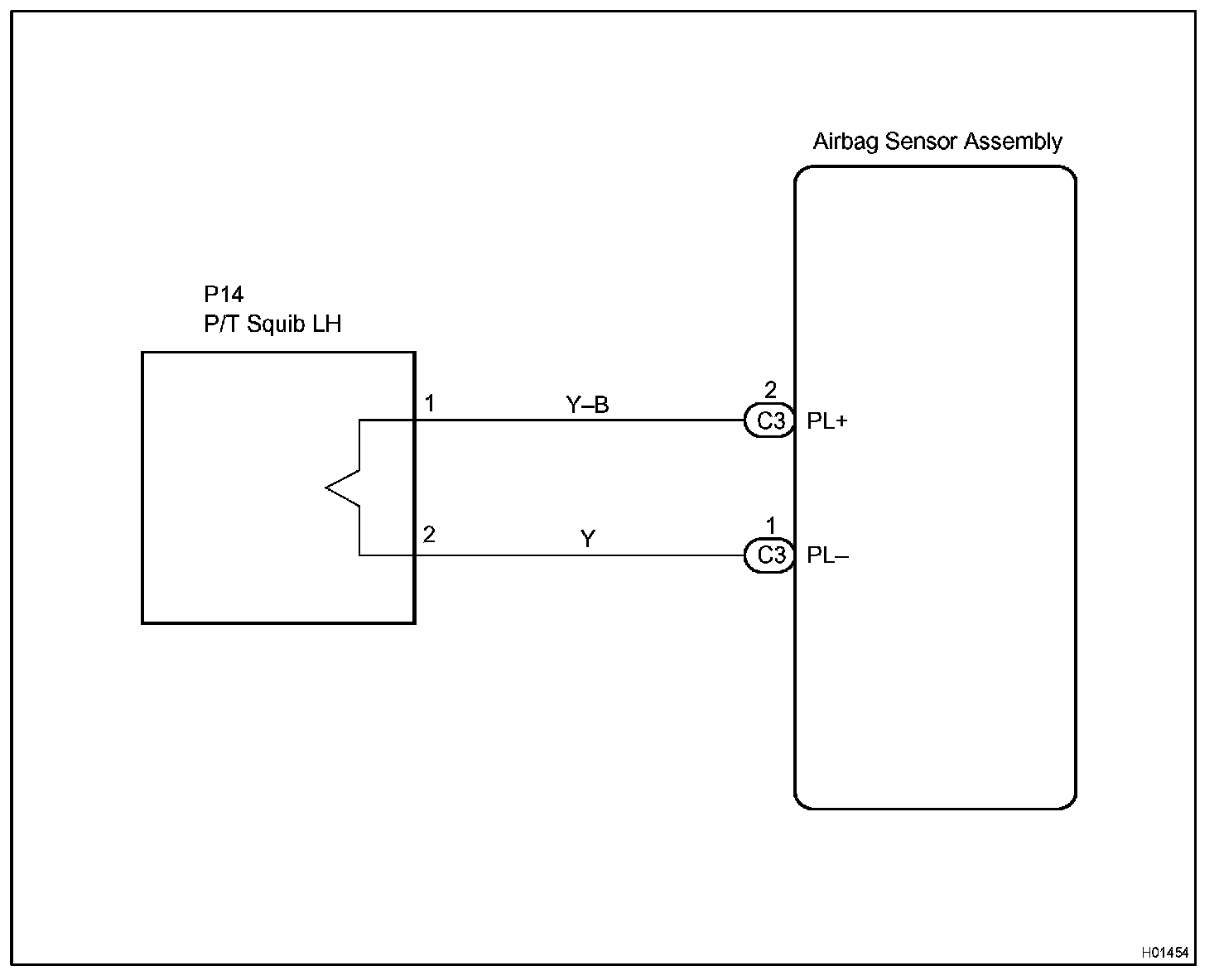

Wiring Diagram:

Step 1 - 2:

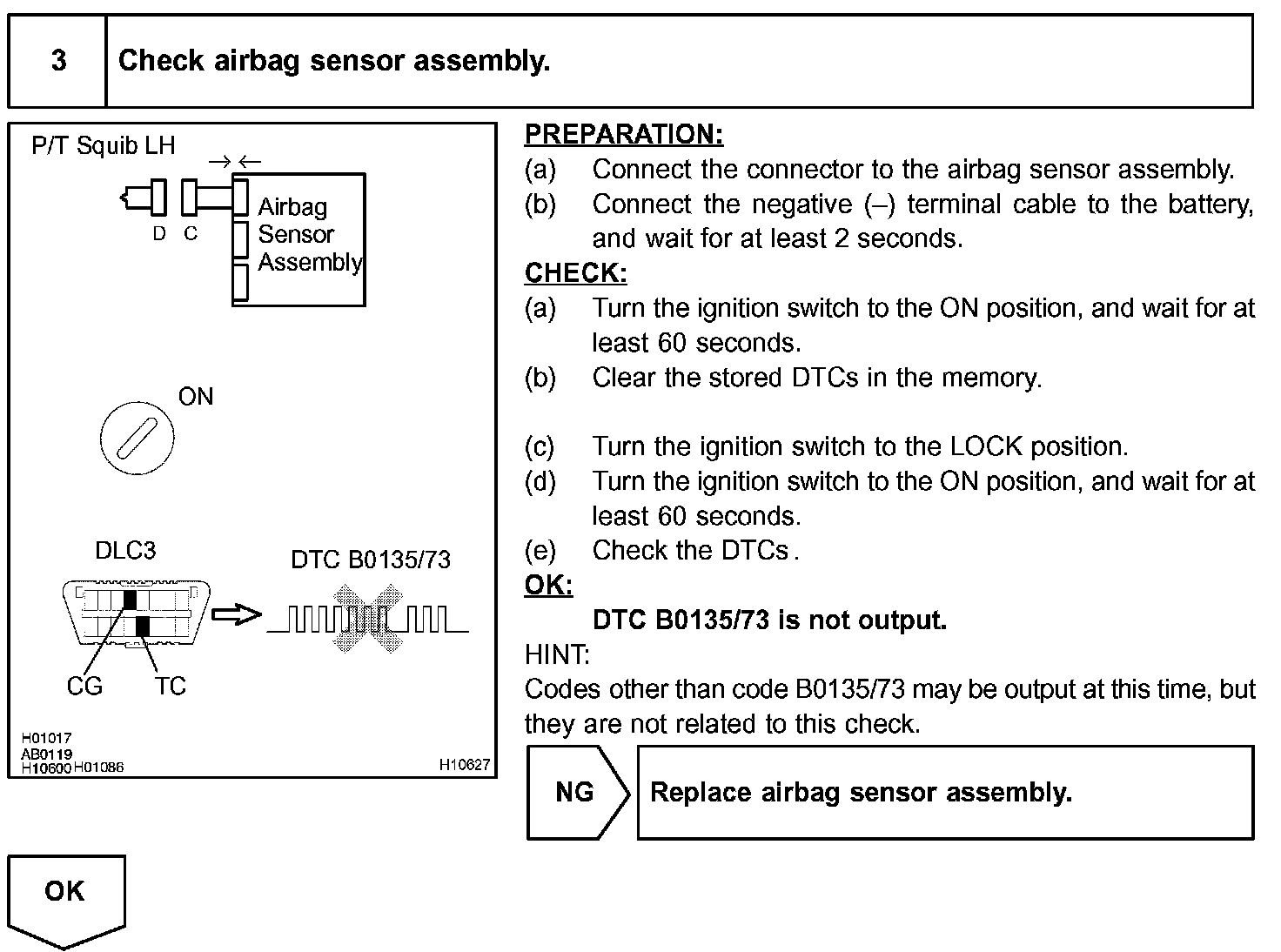

Step 3:

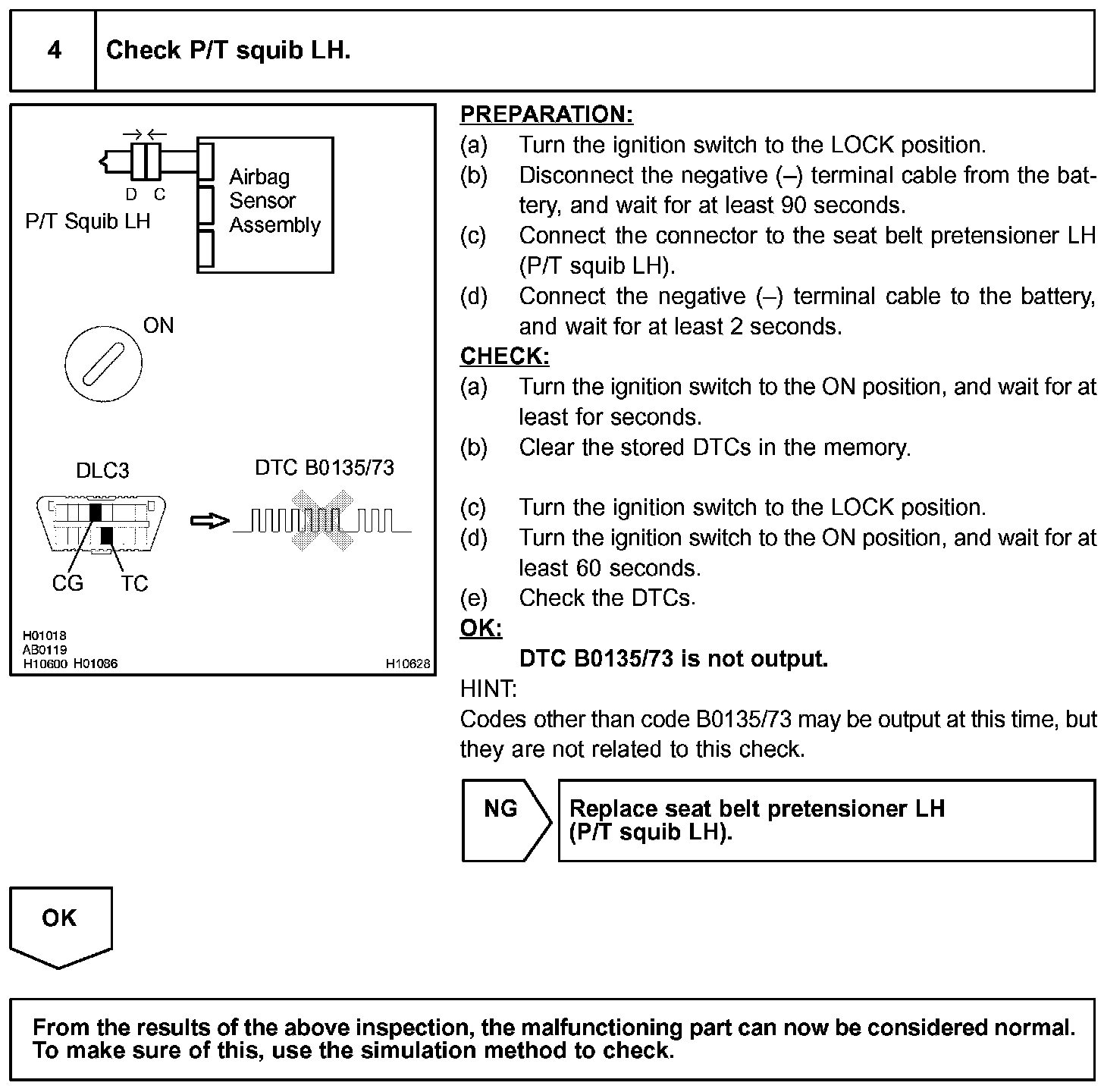

Step 4:

INSPECTION PROCEDURE
