C0246

DTC C0246 Right Rear Solenoid Valve Faulty

CIRCUIT DESCRIPTION

DTC Detecting Condition:

This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders thus controlling the braking force.

HINT:
- DTC No. C0226 is for right front solenoid valve.
- DTC No. C0236 is for left front solenoid valve.
- DTC No. C0246 is for right rear solenoid valve.
- DTC No. C0256 is for left rear solenoid valve.

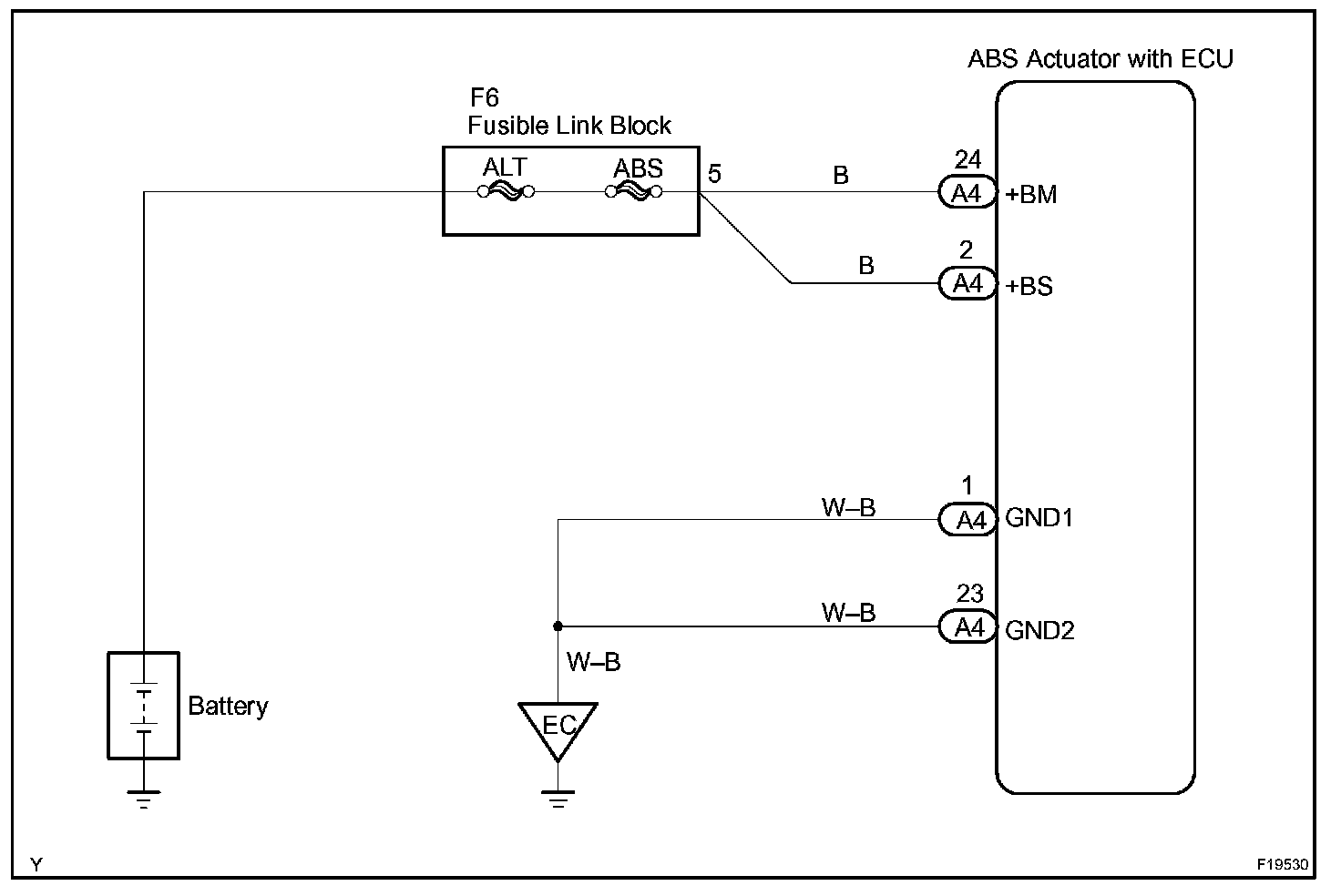

Wiring Diagram:

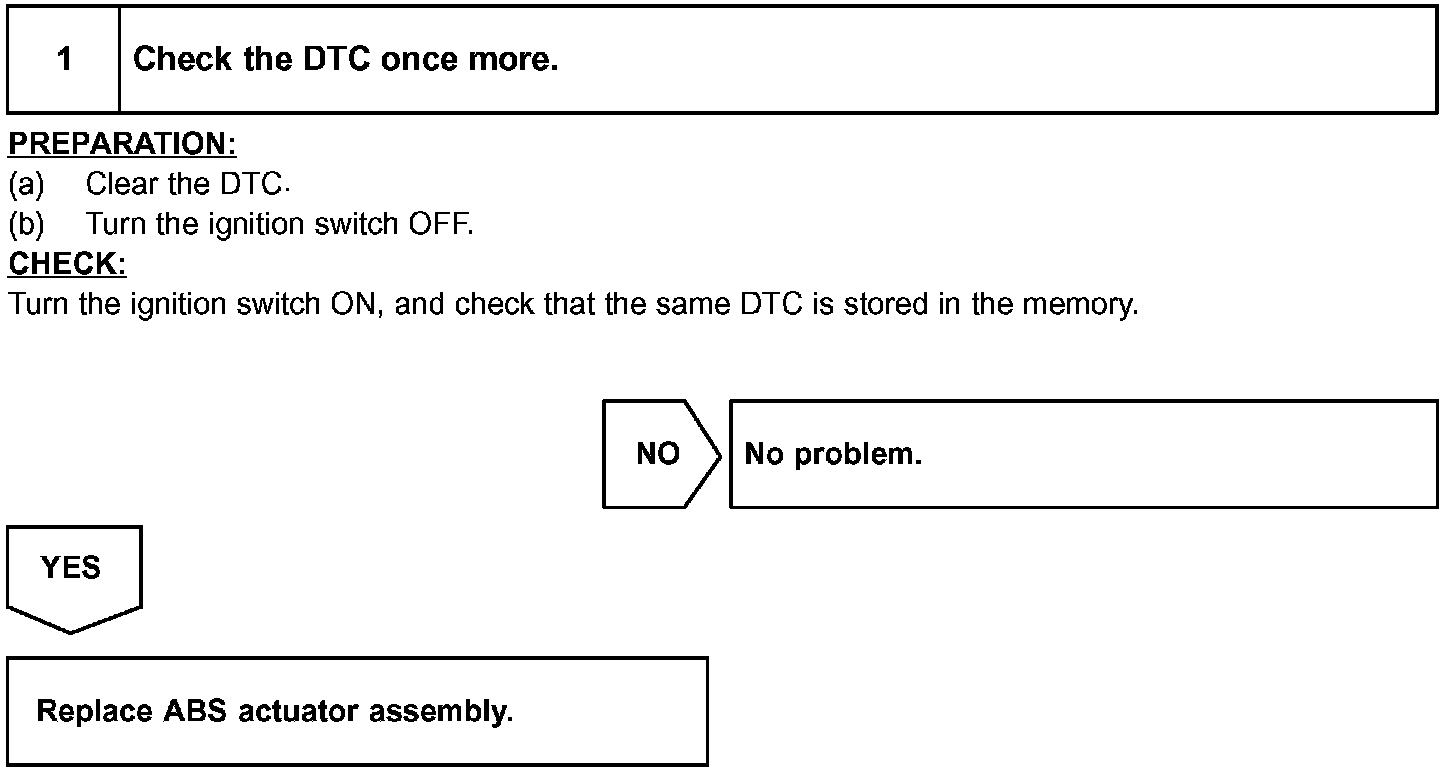

Step 1:

INSPECTION PROCEDURE
