DTC C0274 Short Circuit in ABS Motor Relay Circuit

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The ABS motor relay supplies power to the ABS pump motor. While the ABS is activated, the ECU switches the ABS motor relay ON and operates the ABS pump motor.

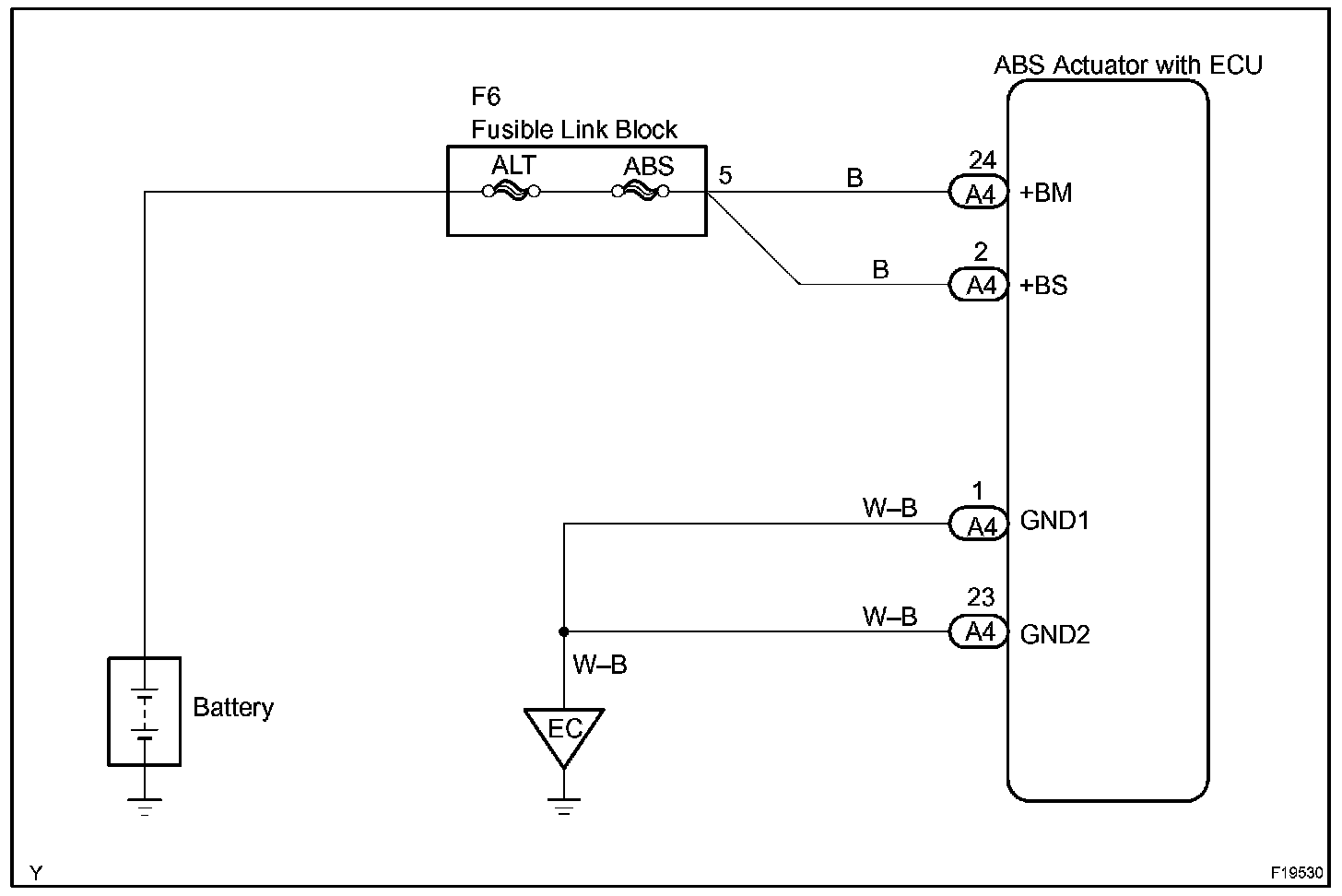

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 2:

HINT: Start the inspection from step 1 in case of using the TOYOTA hand-held tester and start from step 2 in case of not using TOYOTA hand-held tester.
