Multiple Junction Connector
Multiple Junction Connector

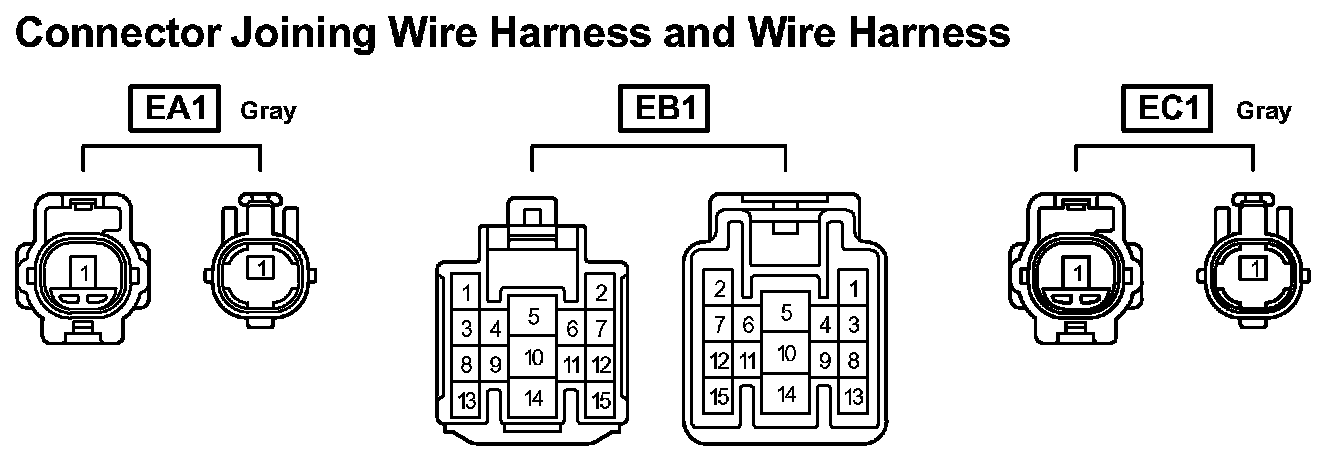

EA1 - EC1:
IA1 - IC1:

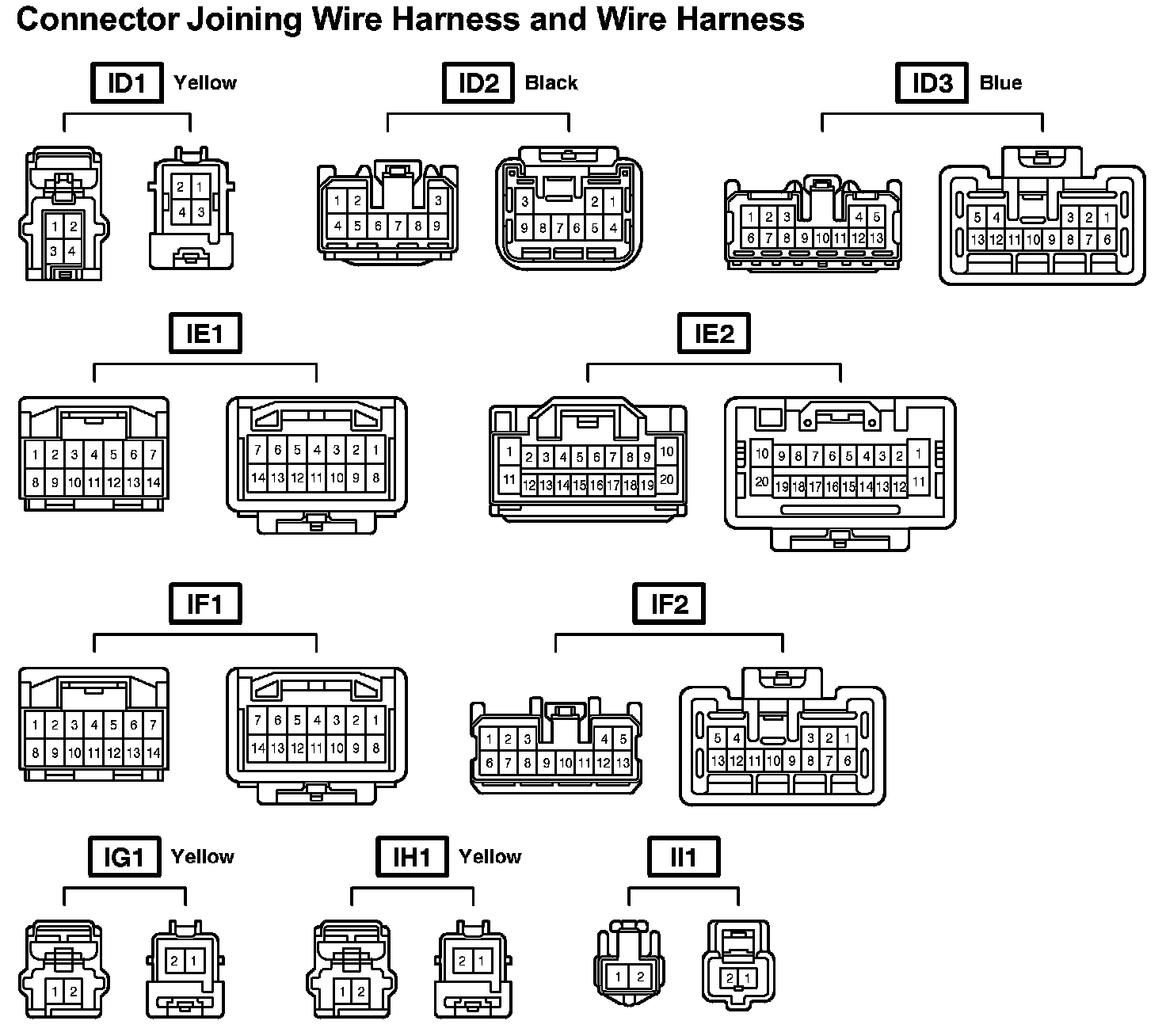

ID1 - II1:

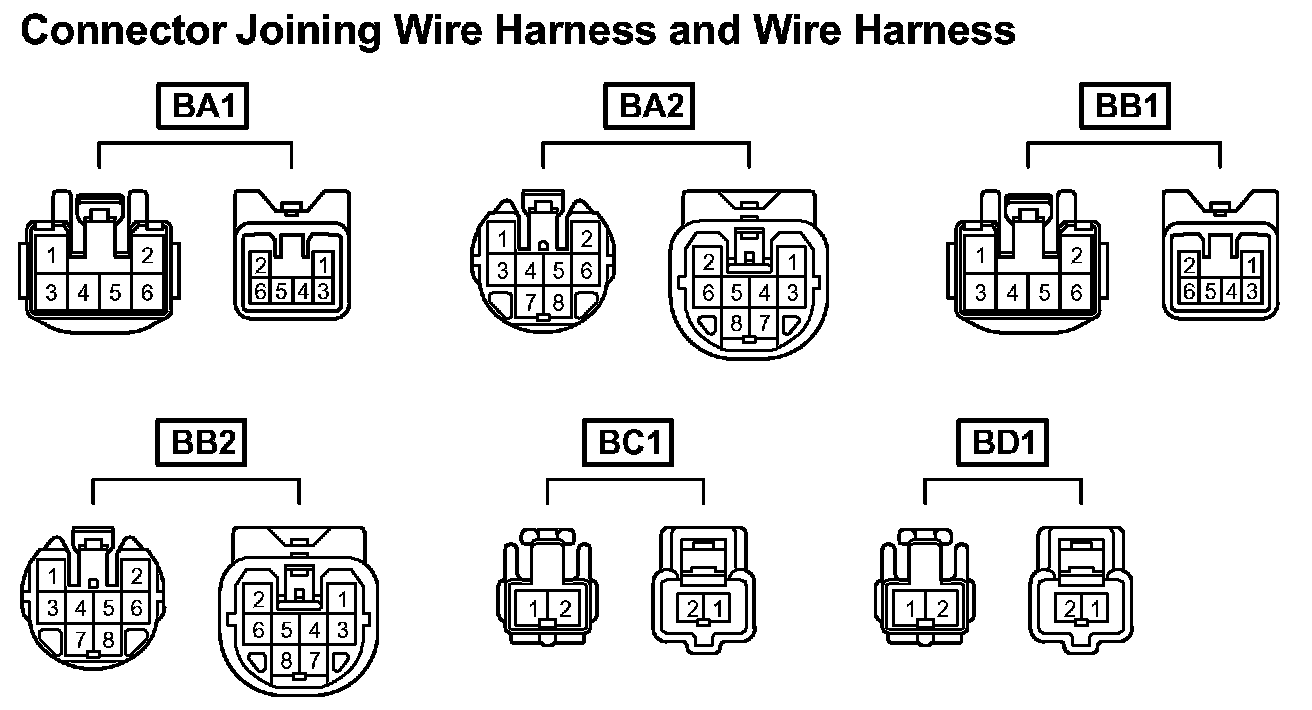

BA1 - BD1:

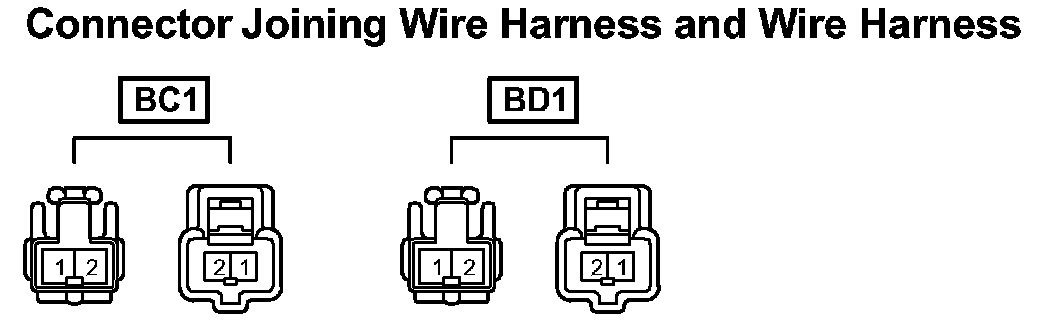

BC1 - BD1:
BA1 - BG1:

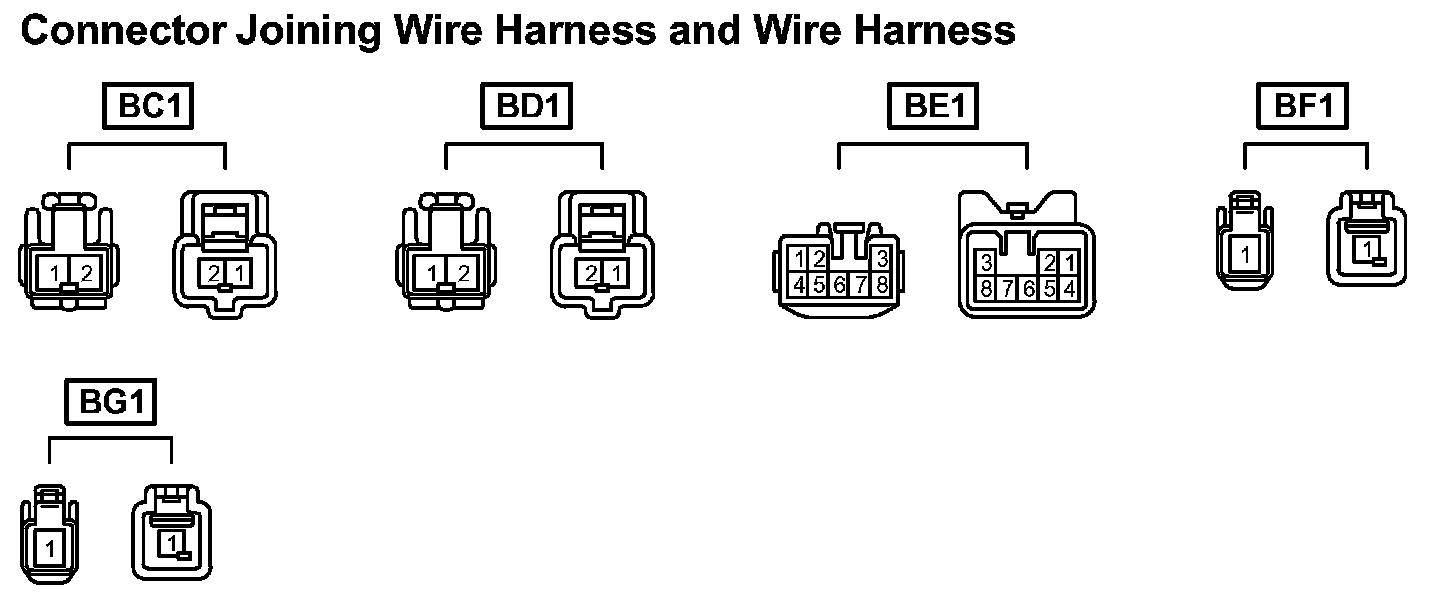

BC1 - BG1:
