Connectors

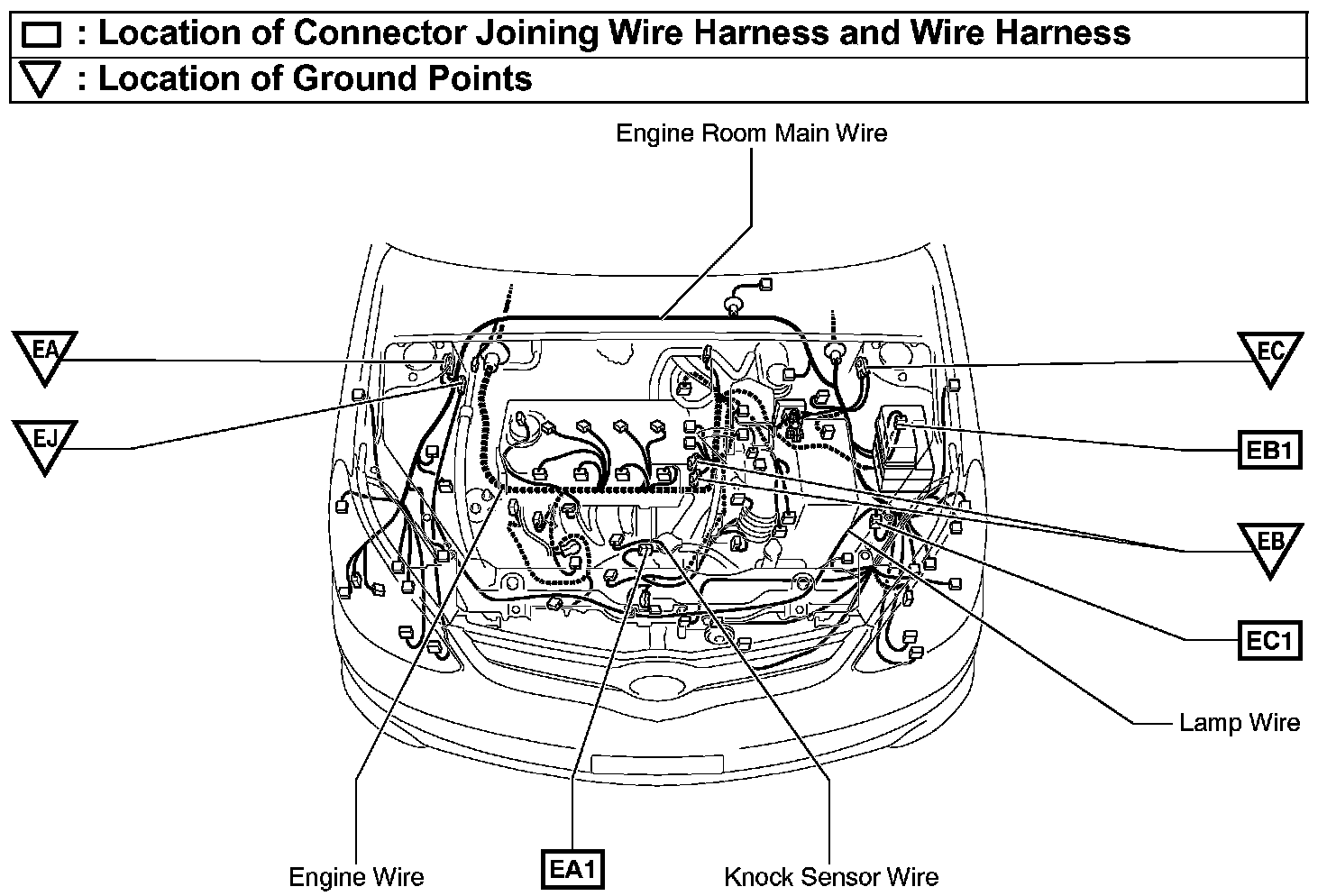

EA - EJ, EA1 - EC1:

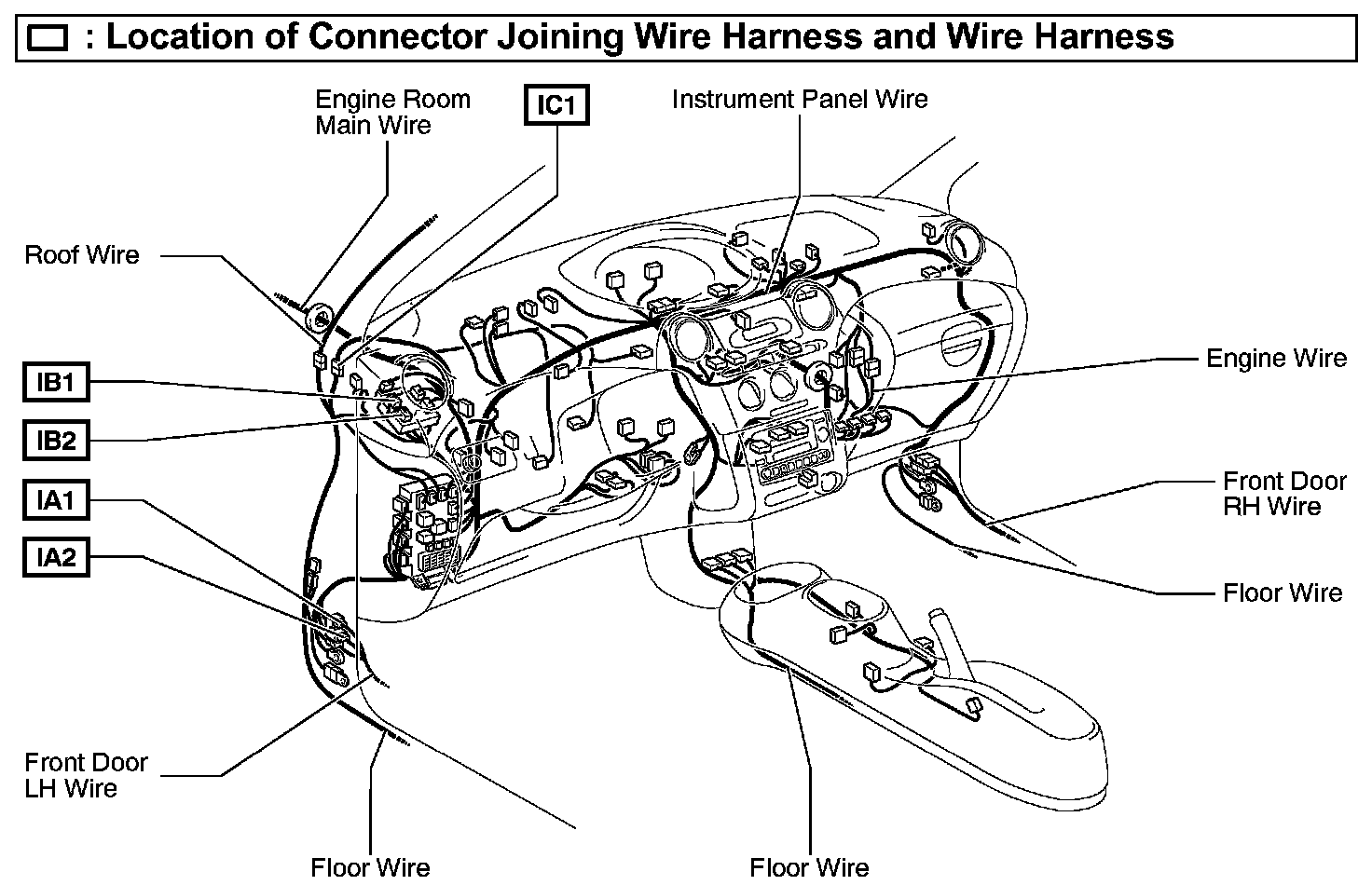

IA1 - IC1:

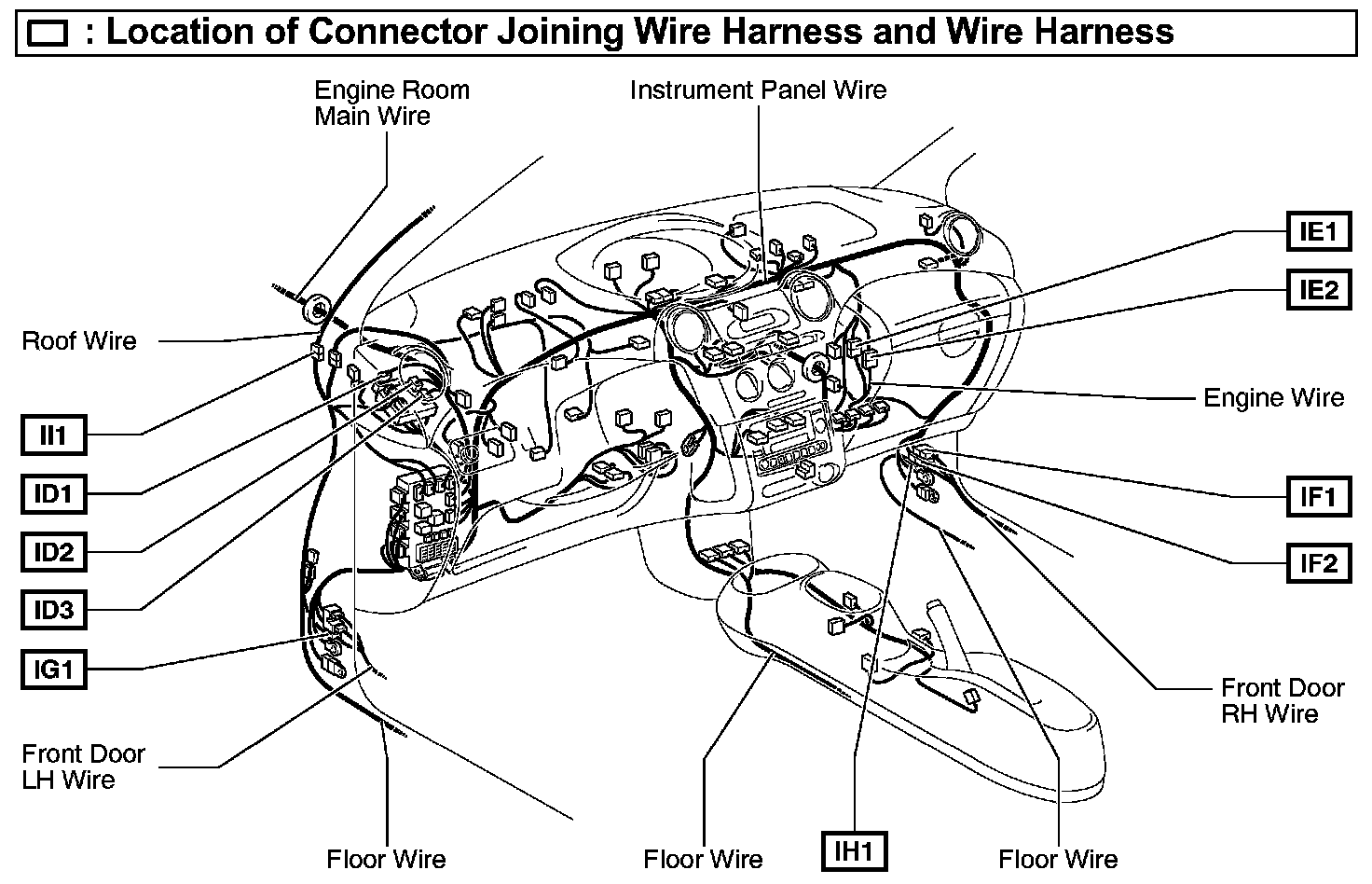

ID1 - II1:

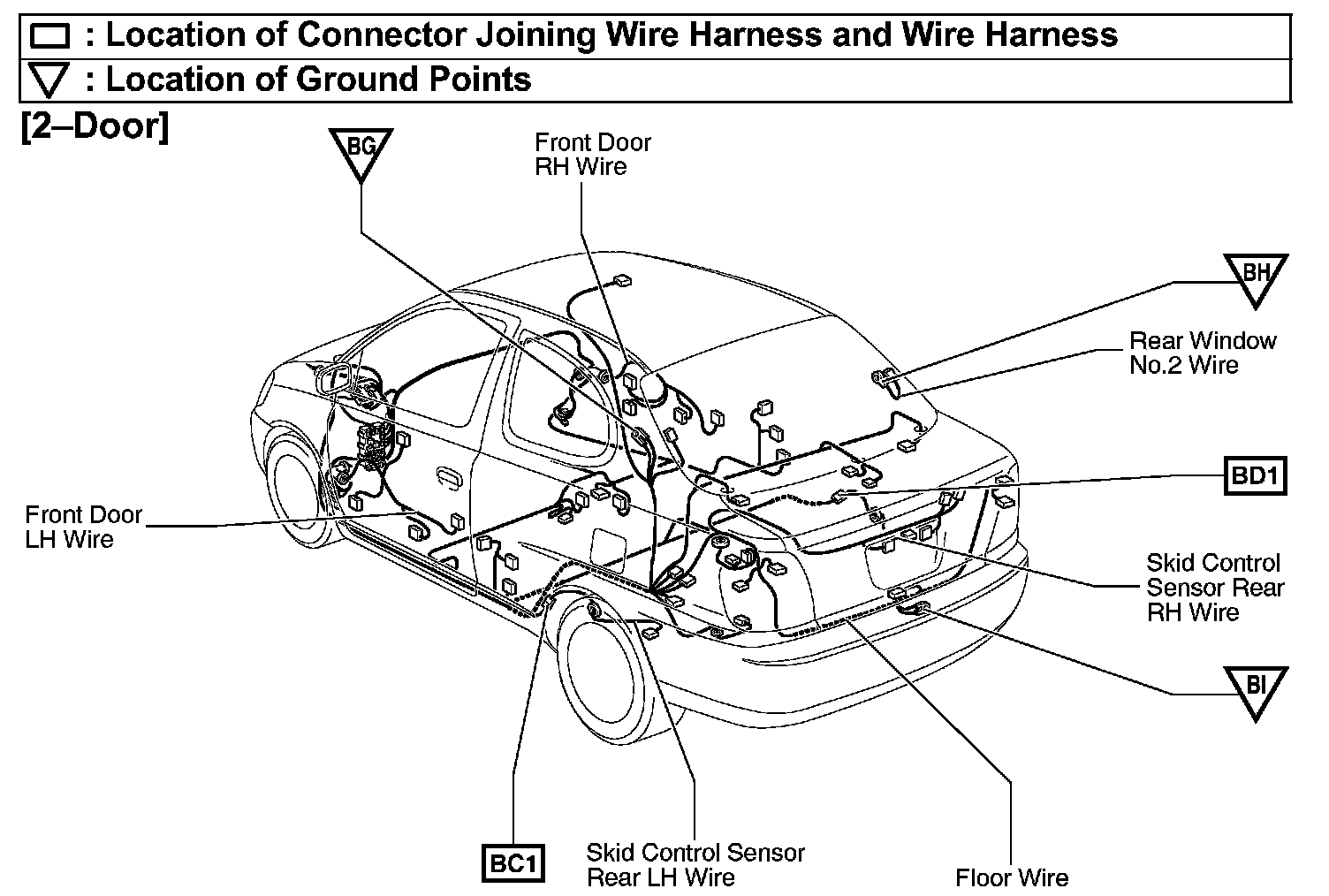

BG - BI, BA1 - BD1:

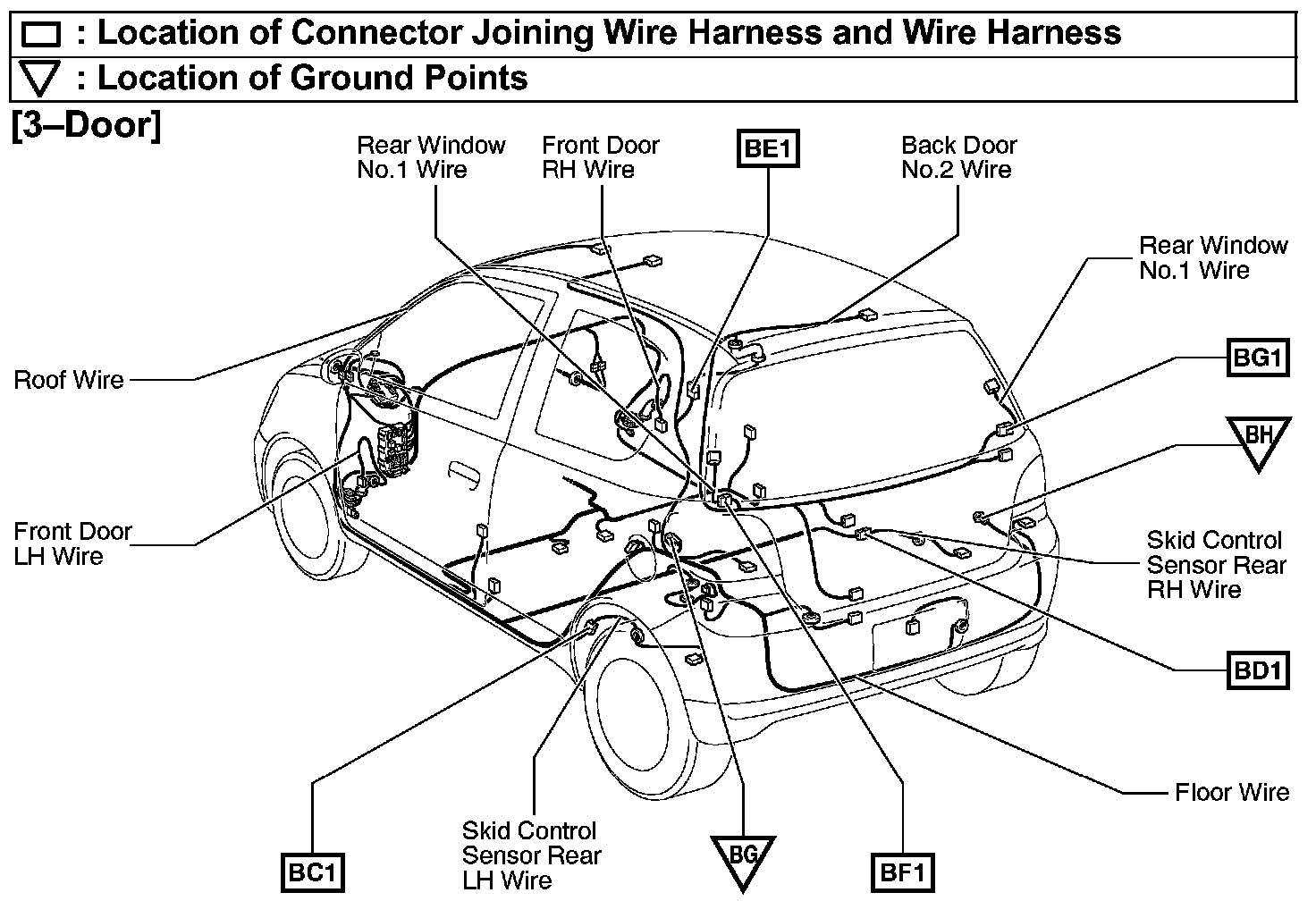

BG - BI, BC1 - BD1:

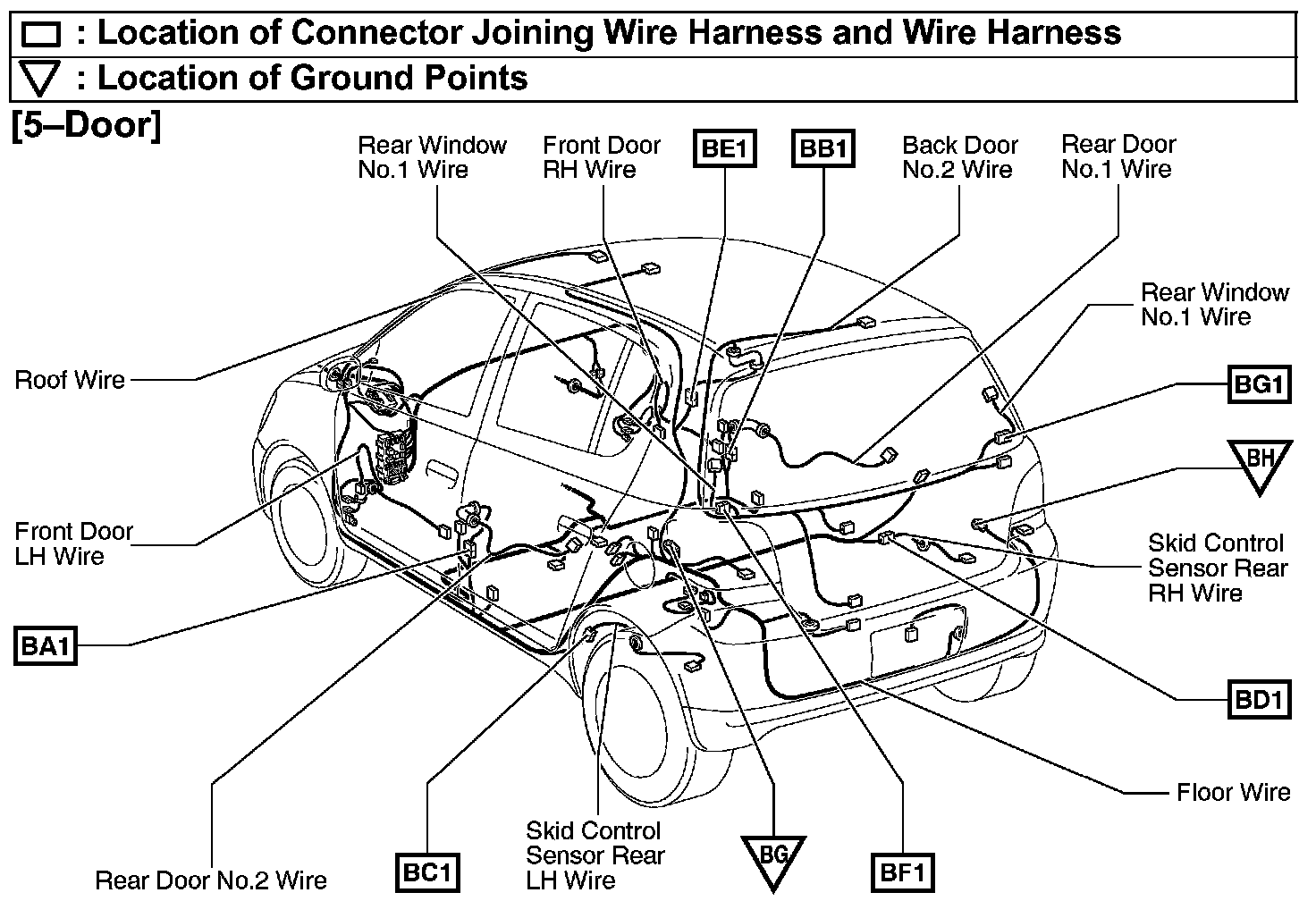

BG - BH, BA1 - BG1:
BG - BH, BC1 - BG1:
