Heating and Air Conditioning: Specifications

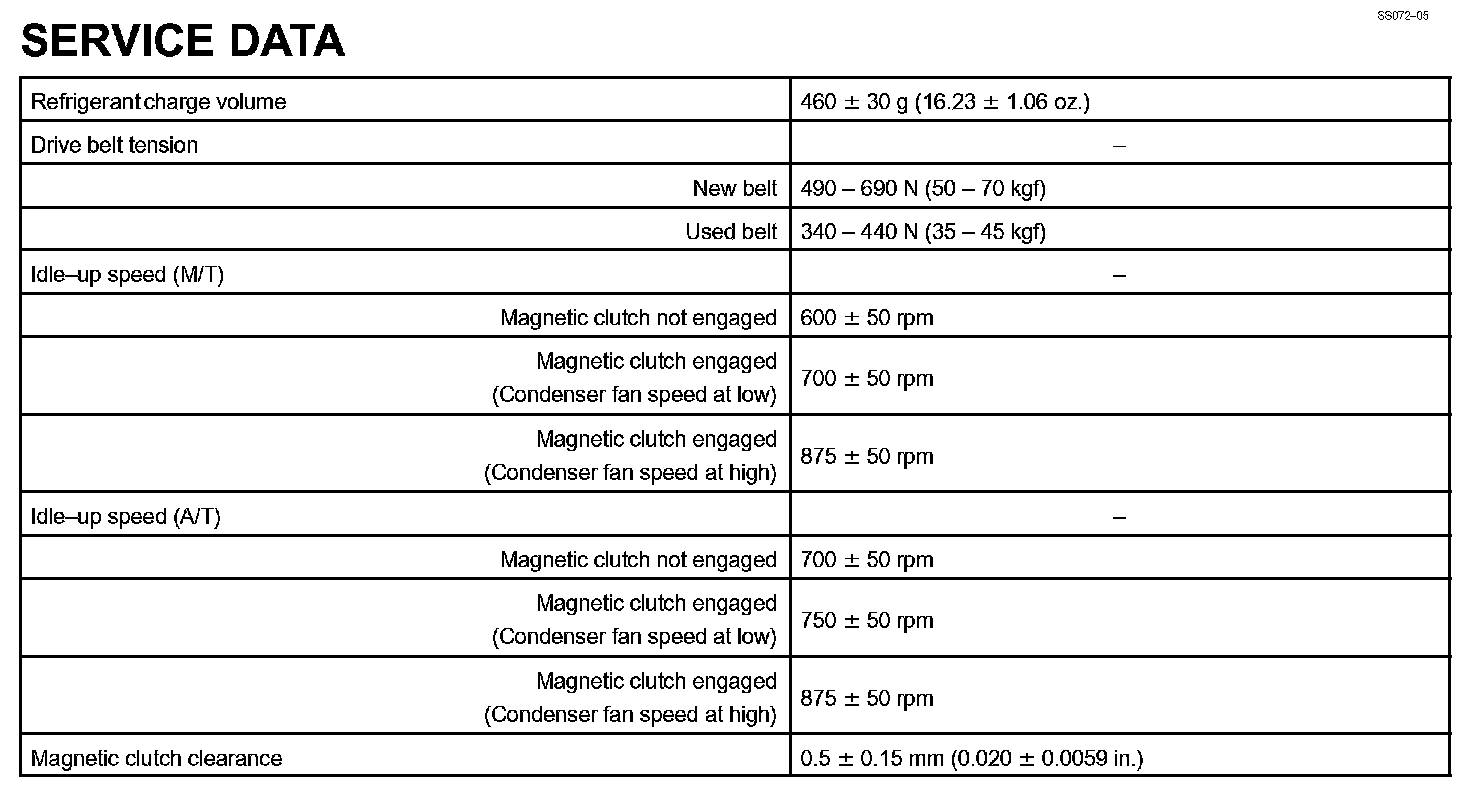

Air Conditioning - Service Data:

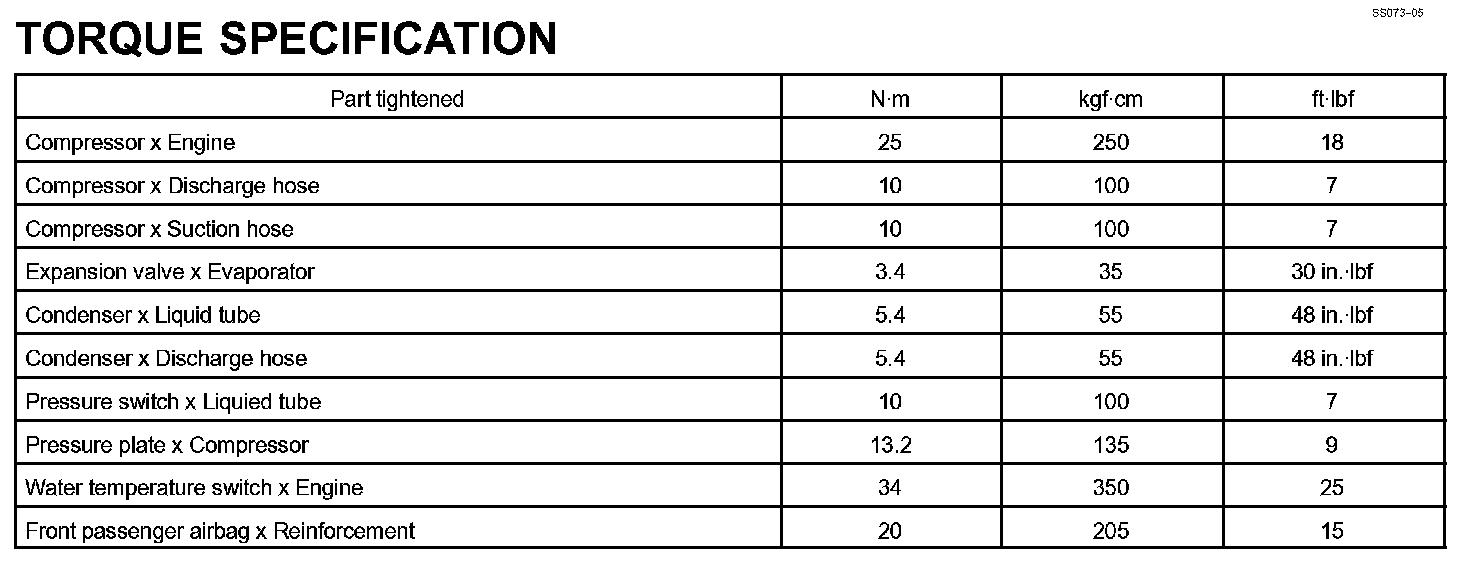

Air Conditioning - Torque Specification:
