Symptom Related Diagnostic Procedures

AIR CONDITIONING SYSTEM

Problem Symptoms Table - Standard (Part 1):

Problem Symptoms Table - Standard (Part 2):

Problem Symptoms Table - Two Way Flow Heater:

Problem Symptoms Table - PTC Heater:

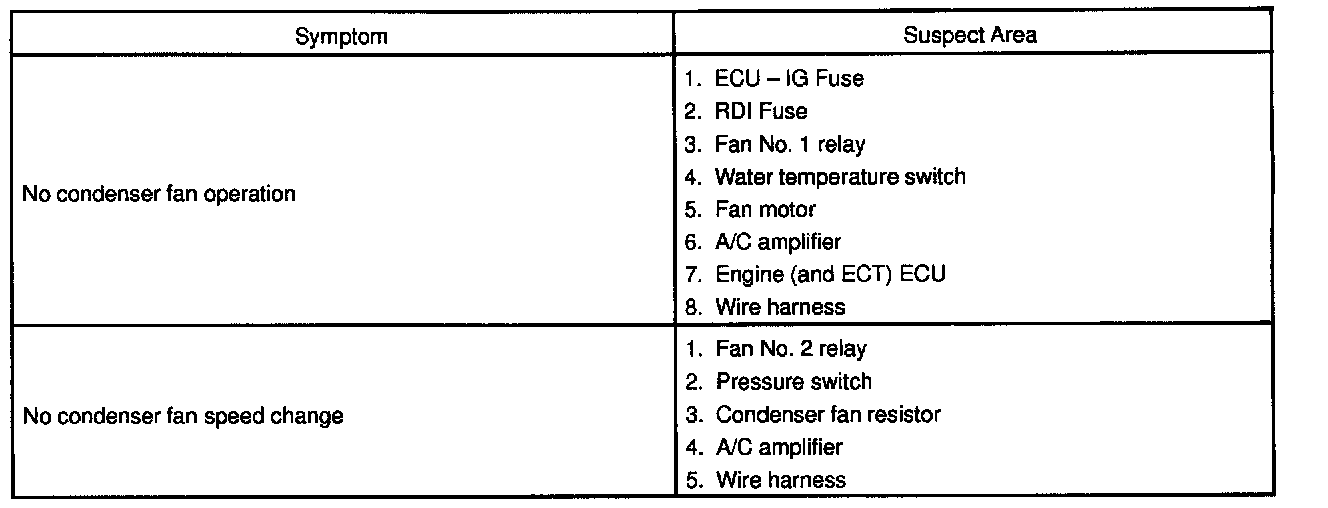

PROBLEM SYMPTOMS TABLE
Use the table to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. if necessary, replace these parts.
