Manufacturer Tools

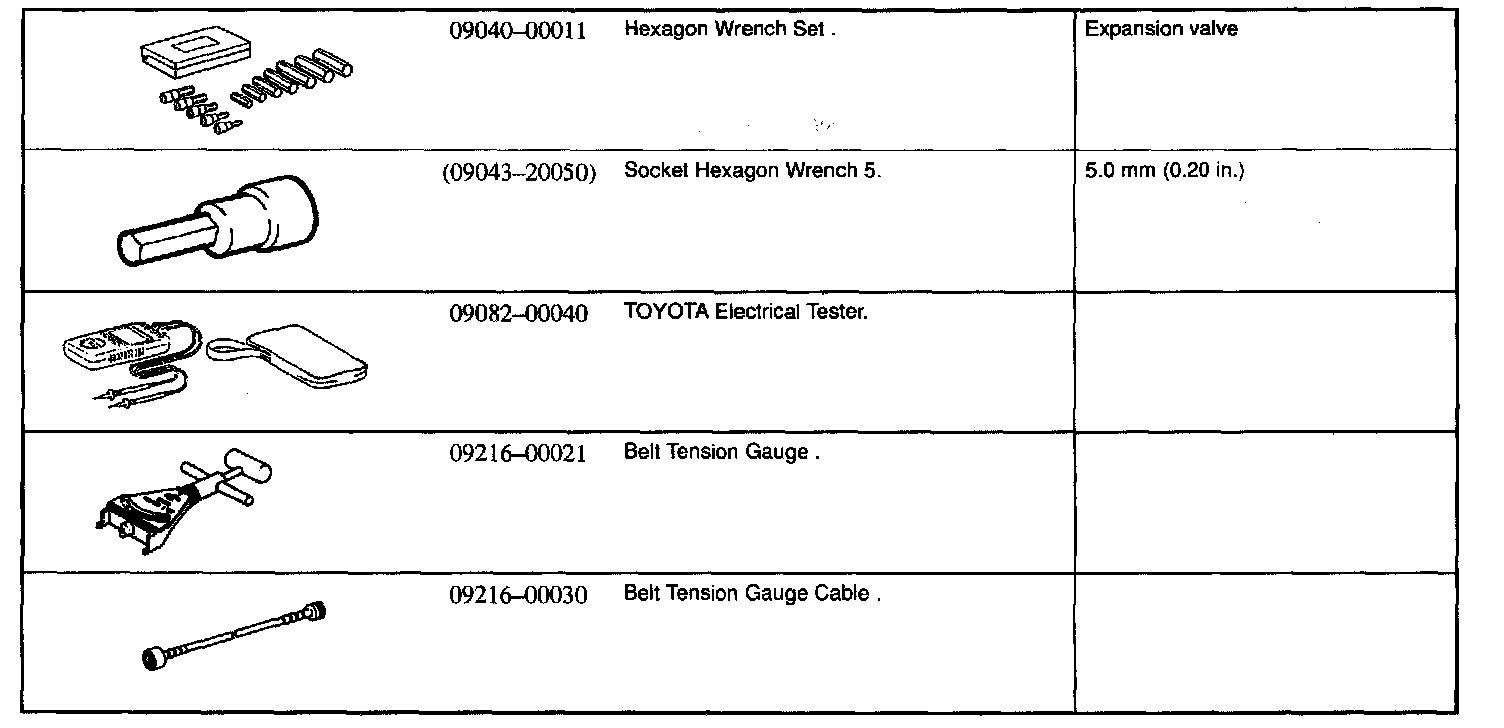

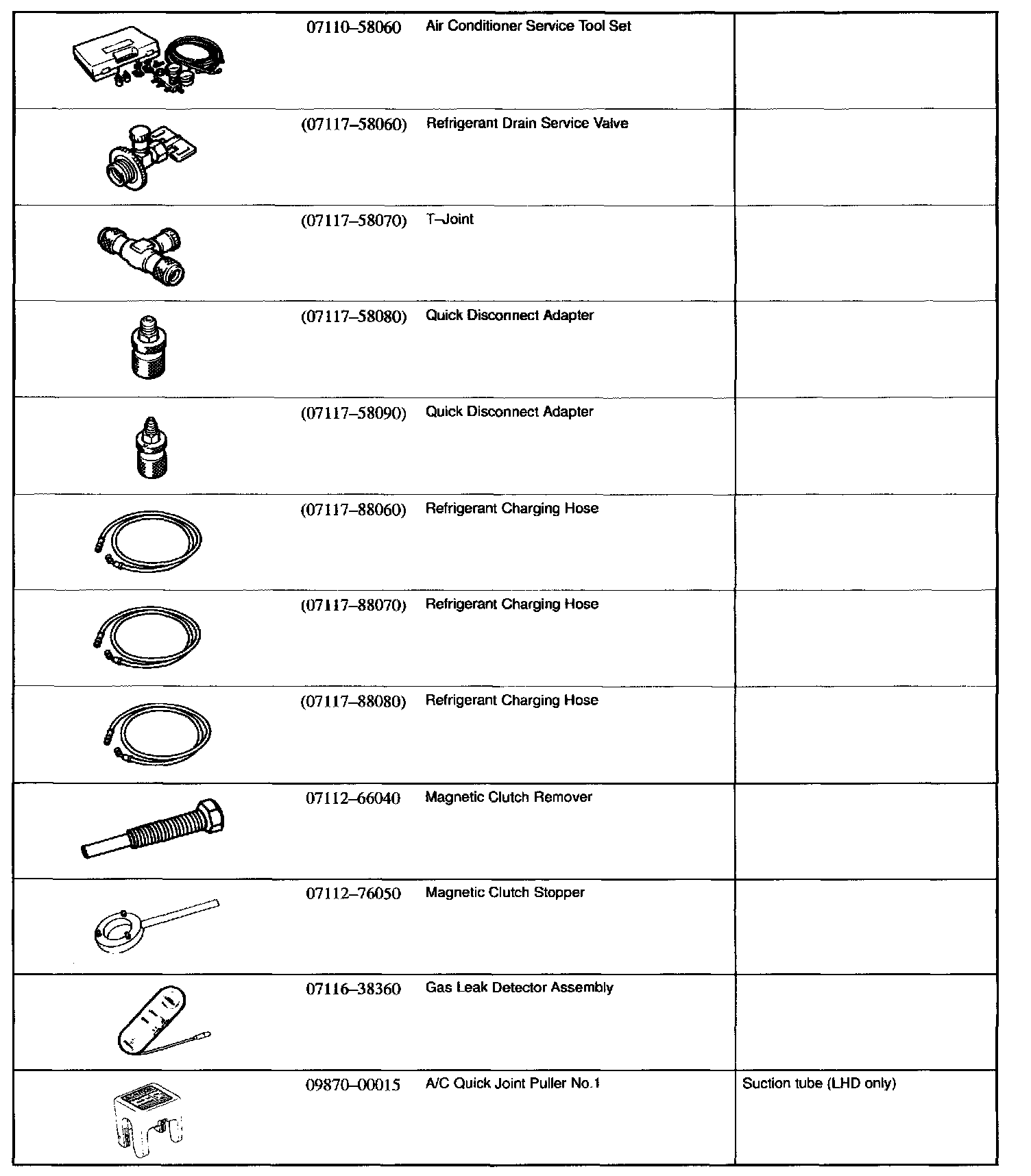

Air Conditioning - SST (Special Service Tools) Part 1:

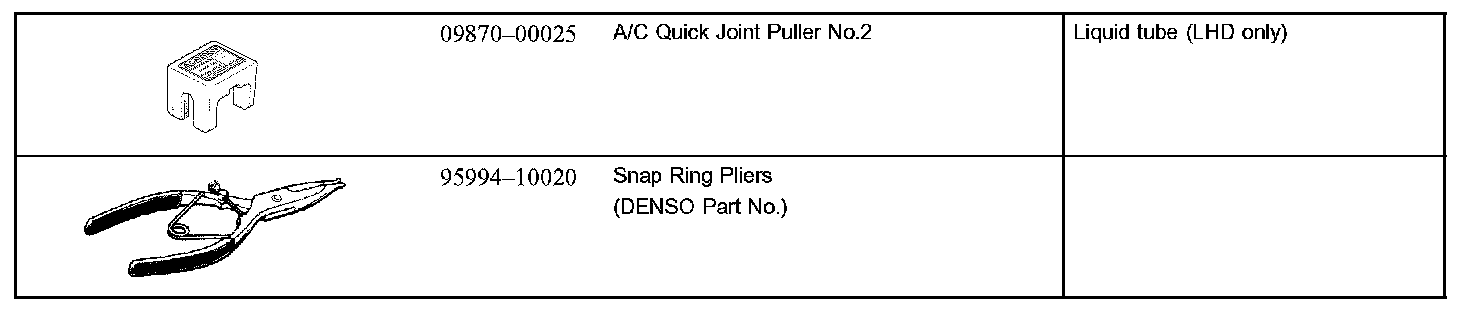

Air Conditioning - SST (Special Service Tools) Part 2:



Air Conditioning - Recommended Tools:

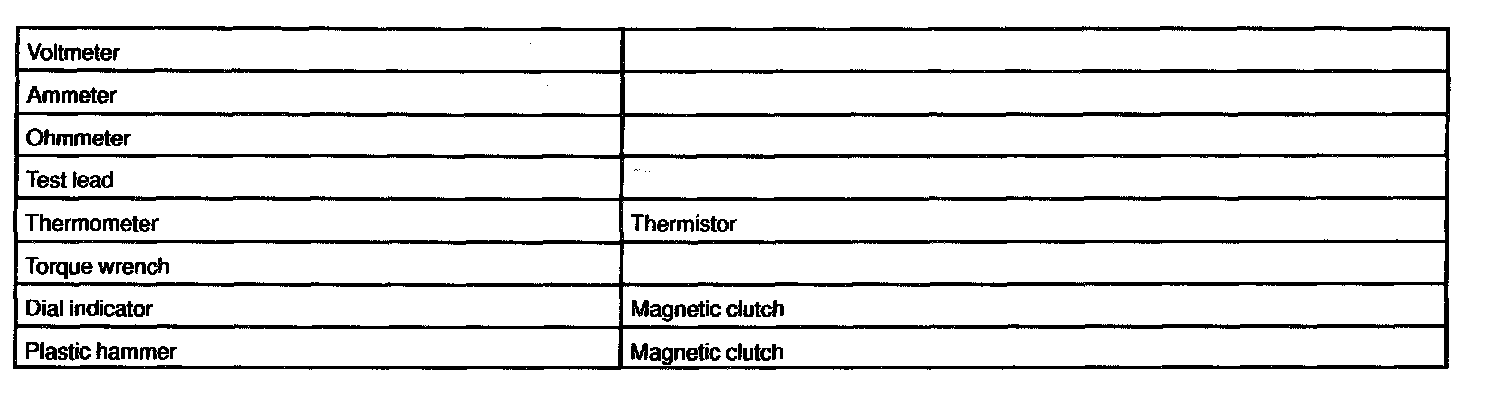

Air Conditioning - Equipment:



Air Conditioning - SST (Special Service Tools) Part 1:

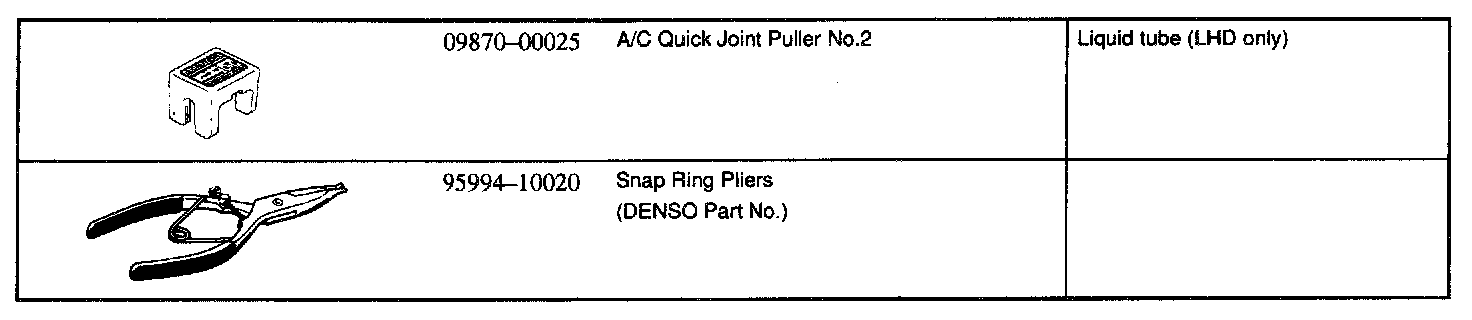

Air Conditioning - SST (Special Service Tools) Part 2:



Air Conditioning - Recommended Tools:

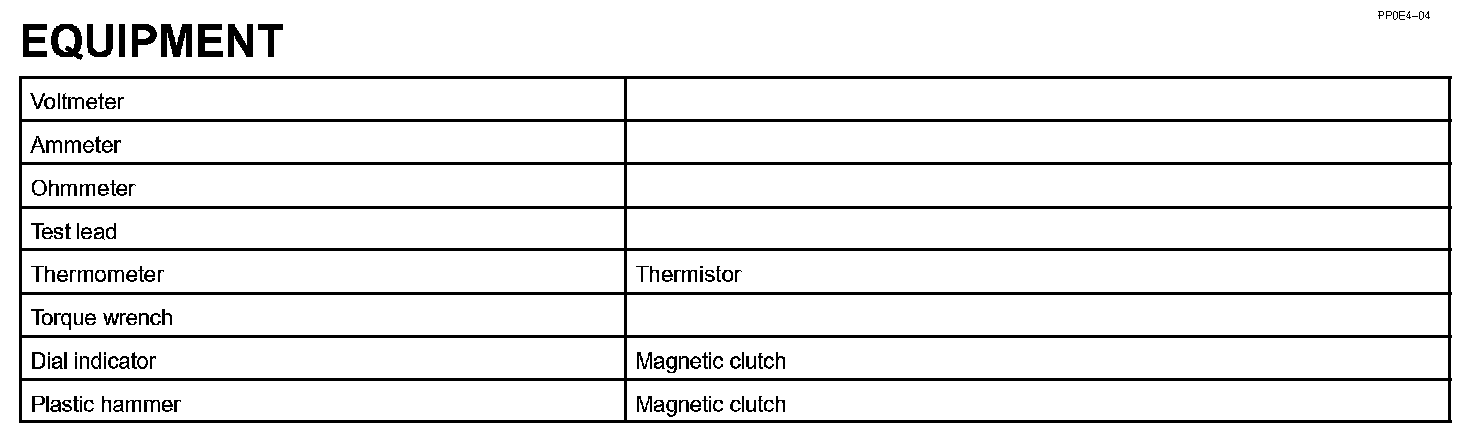

Air Conditioning - Equipment:
