Power and Ground Distribution: Locations

Power Source:





Power Source (Hatchback):

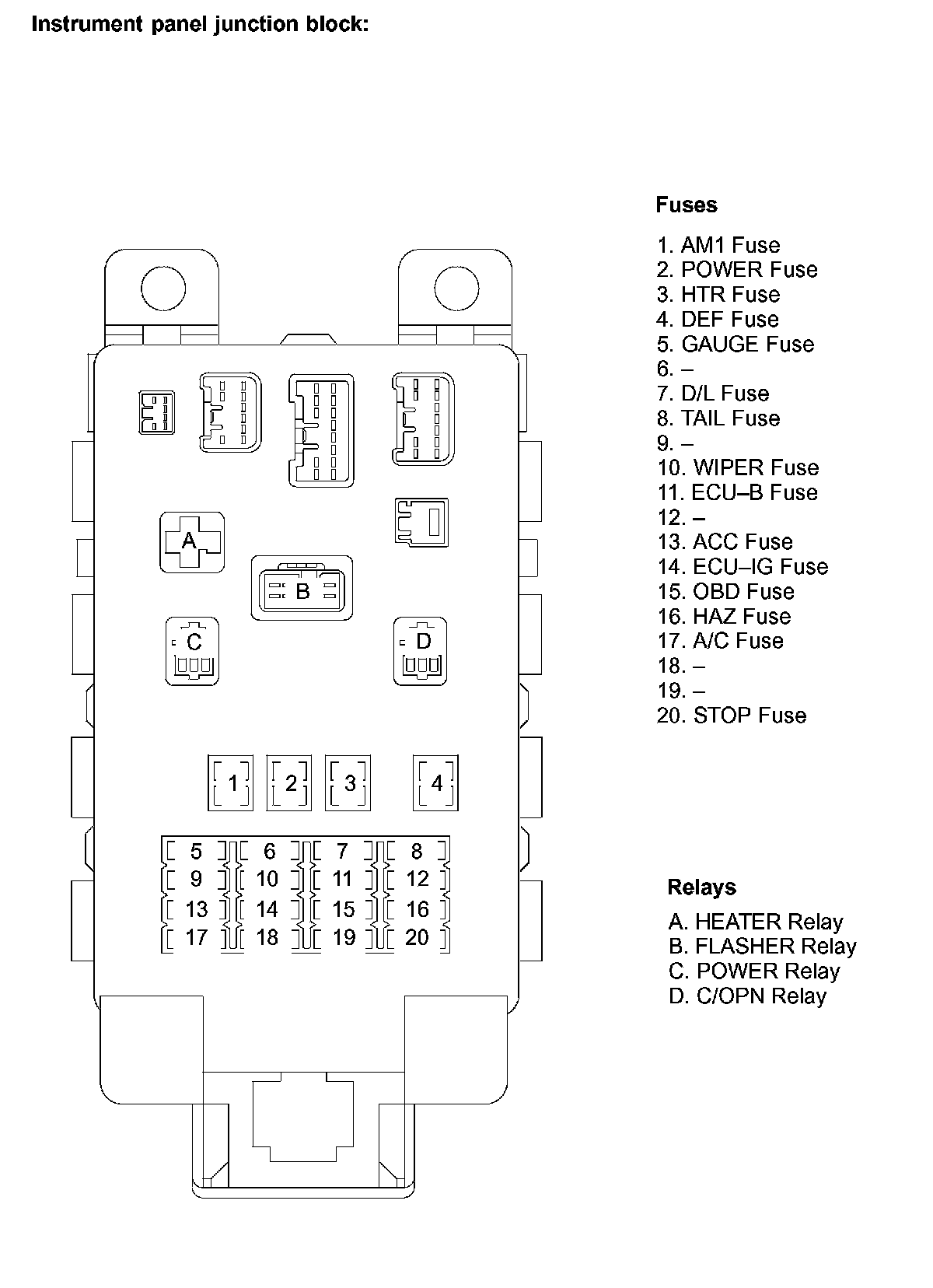

Instrument Panel Junction Block:





Engine Room Relay Block:





Fusible Link Block:
