Flex Plate
Flex Plate

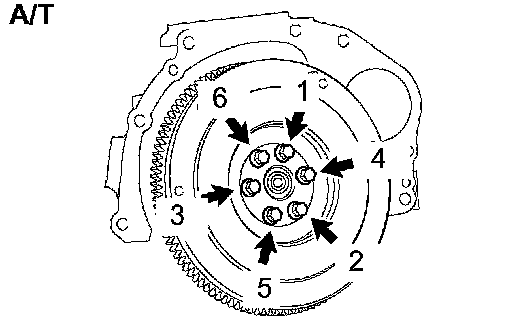

Install and uniformly tighten the 6 mounting bolts, in several passes, in the sequence shown.
Torque
88 Nm (890 kgf-cm, 65 ft. lbs.)
