Steering

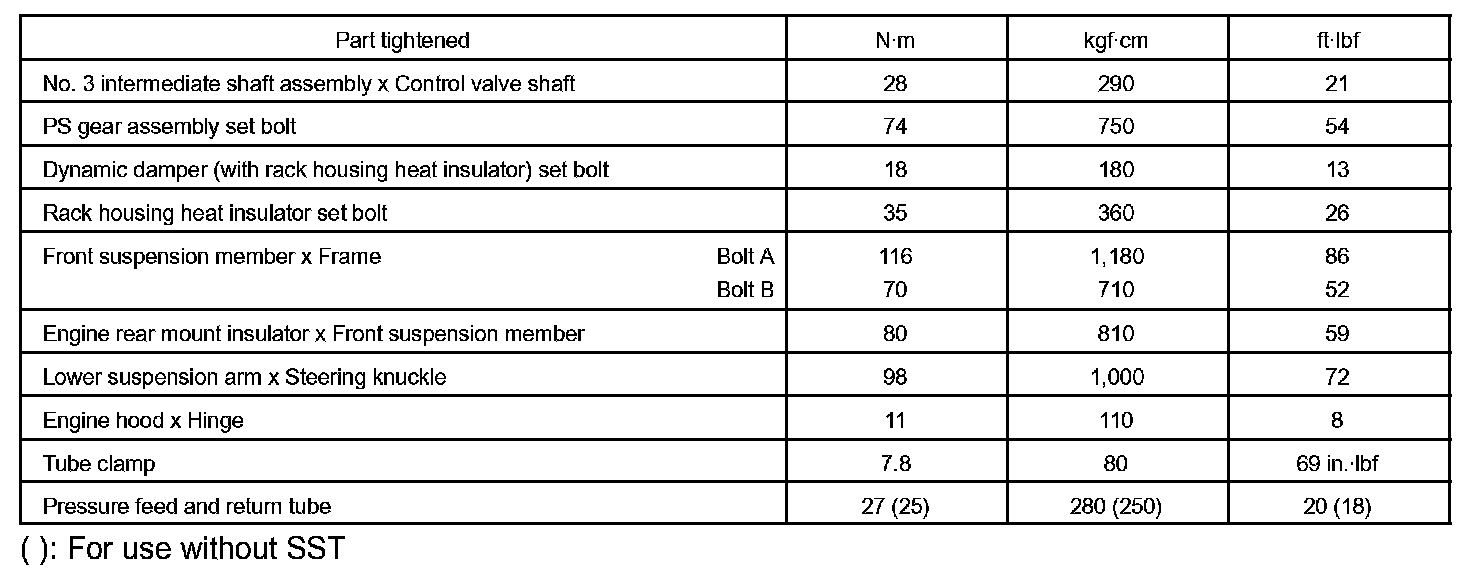

Steering - Service Data:



Brake - Torque Specification Part 1:



Brake - Torque Specification Part 2:
