Canada - A/C - Water Leaks Onto Front Floor

Bulletin
TSB2332

Issue Date
2005-09-20

Market
Canada

Title
FRONT PASSENGER FOOT AREA WET

Component
HEATING & AIR CONDITIONING

Models
'05 ECHO

INTRODUCTION:
On some ECHO vehicles, a condition may exist that allows the evaporator drain hose to become detached, causing the passenger foot well to become wet. This bulletin provides a procedure to correct this condition.

APPLICABLE VEHICLES:
- 2005 model year ECHO vehicles produced BEFORE the Production Change Effective VINs.

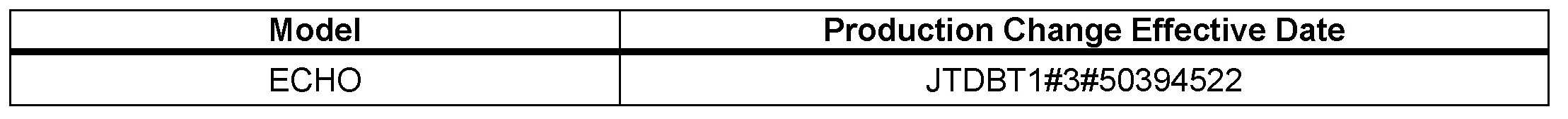

PRODUCTION CHANGE INFORMATION:

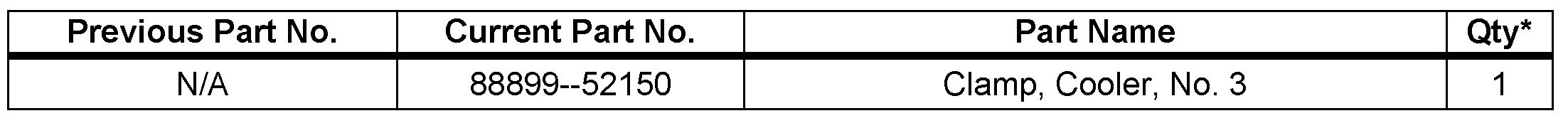

PARTS INFORMATION:

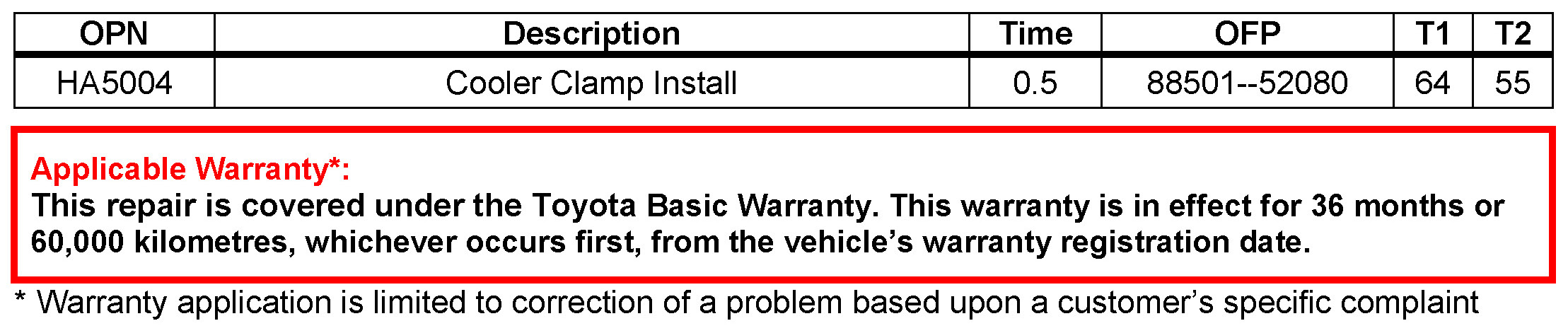

WARRANTY INFORMATION:

REPAIR PROCEDURE:

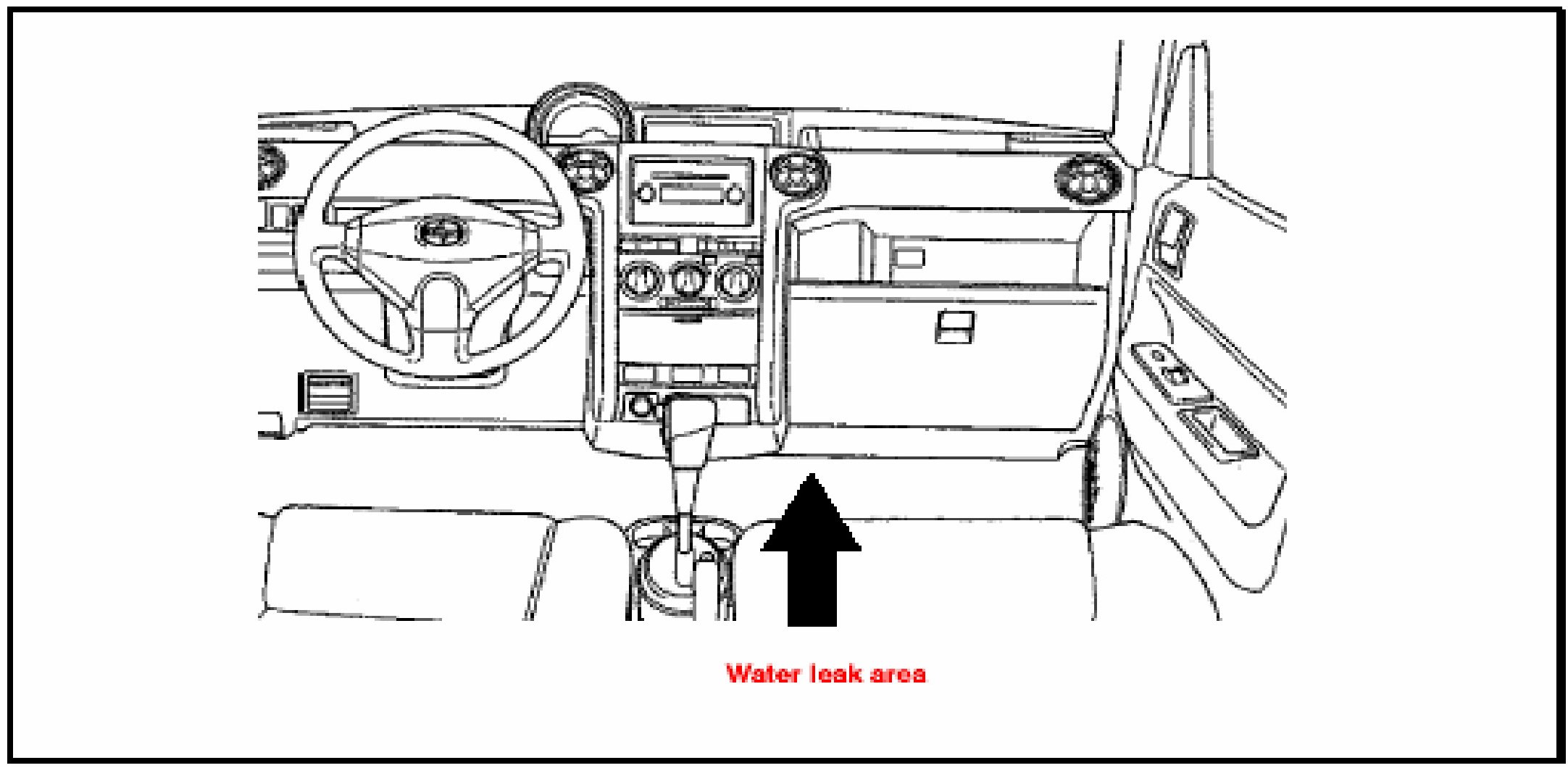

1. Inspect the evaporator drain hose to ensure that it is the cause of the water leak. If the evaporator hose is out of position, continue with this procedure.





2. Install the retaining clamp on the drain hose.

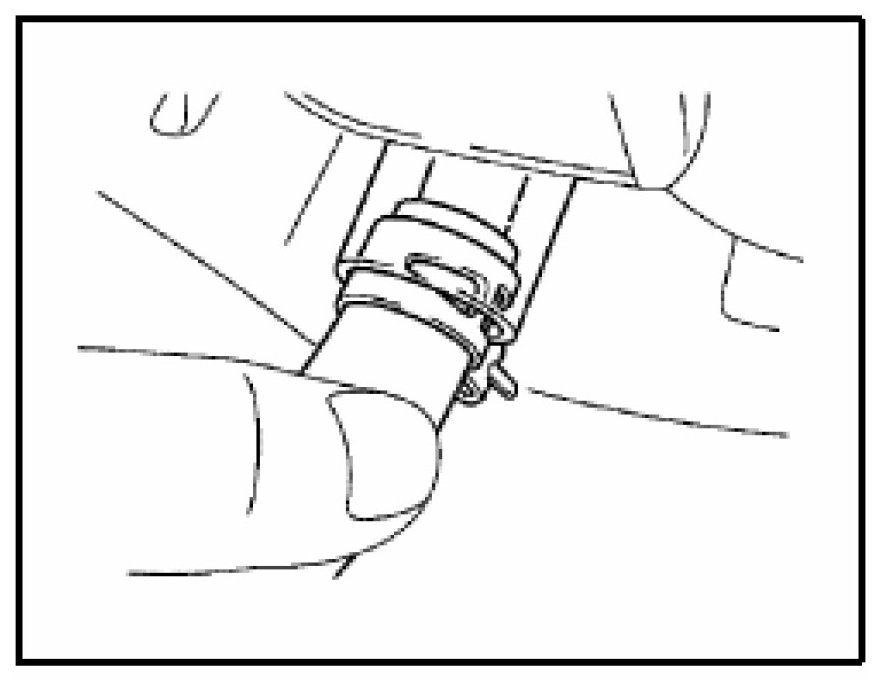

3. Push the drain hose up on to the evaporator drain tube. Ensure that the drain hose is up far enough for the retaining clamp to fully engage the tube.

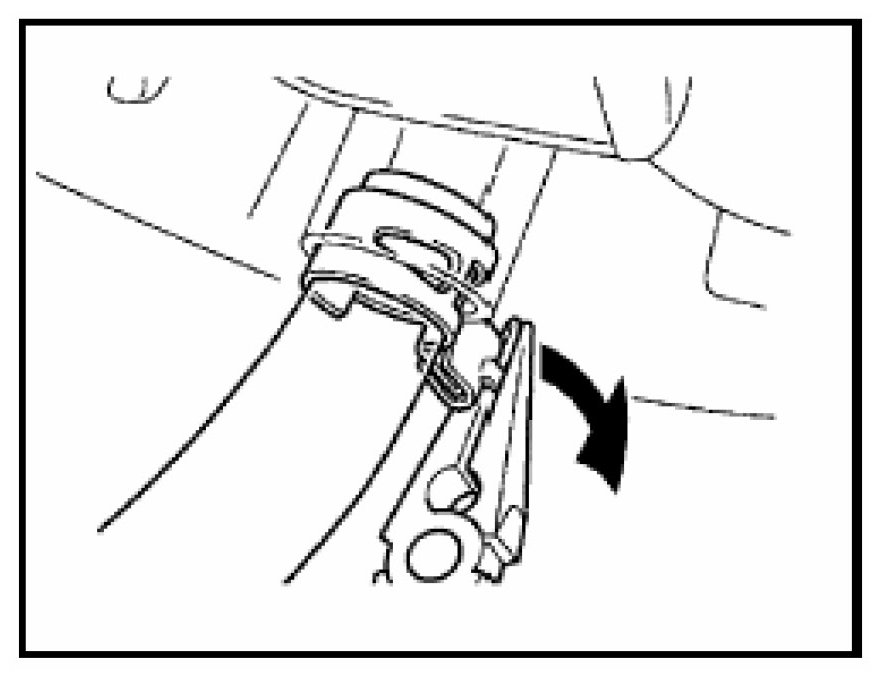

4. Release the holding clip.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
