Windshield Washer Spray Nozzle: Adjustments
ADJUSTMENTADJUST FRONT WASHER NOZZLE

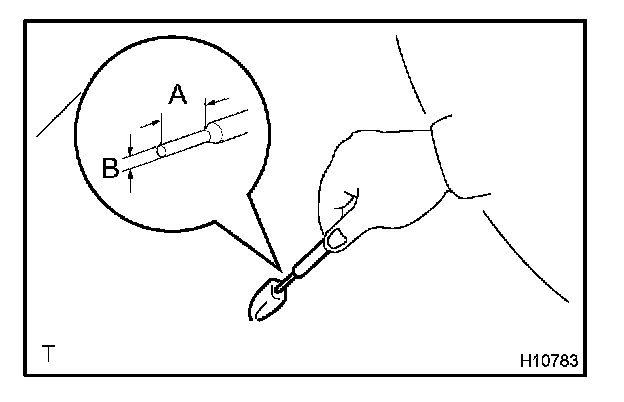

Using a tool as shown in the illustration, change the direction of the nozzle hole to adjust the point where washer fluid hits the windshield.
A: 2.0 to 2.5 mm (0.079 to 0.098 in.)
B: 0.7 to 0.75 mm (0.028 to 0.0295 in.)
