C1246

DTC C1246 MALFUNCTION IN MASTER CYLINDER PRESSURE SENSOR

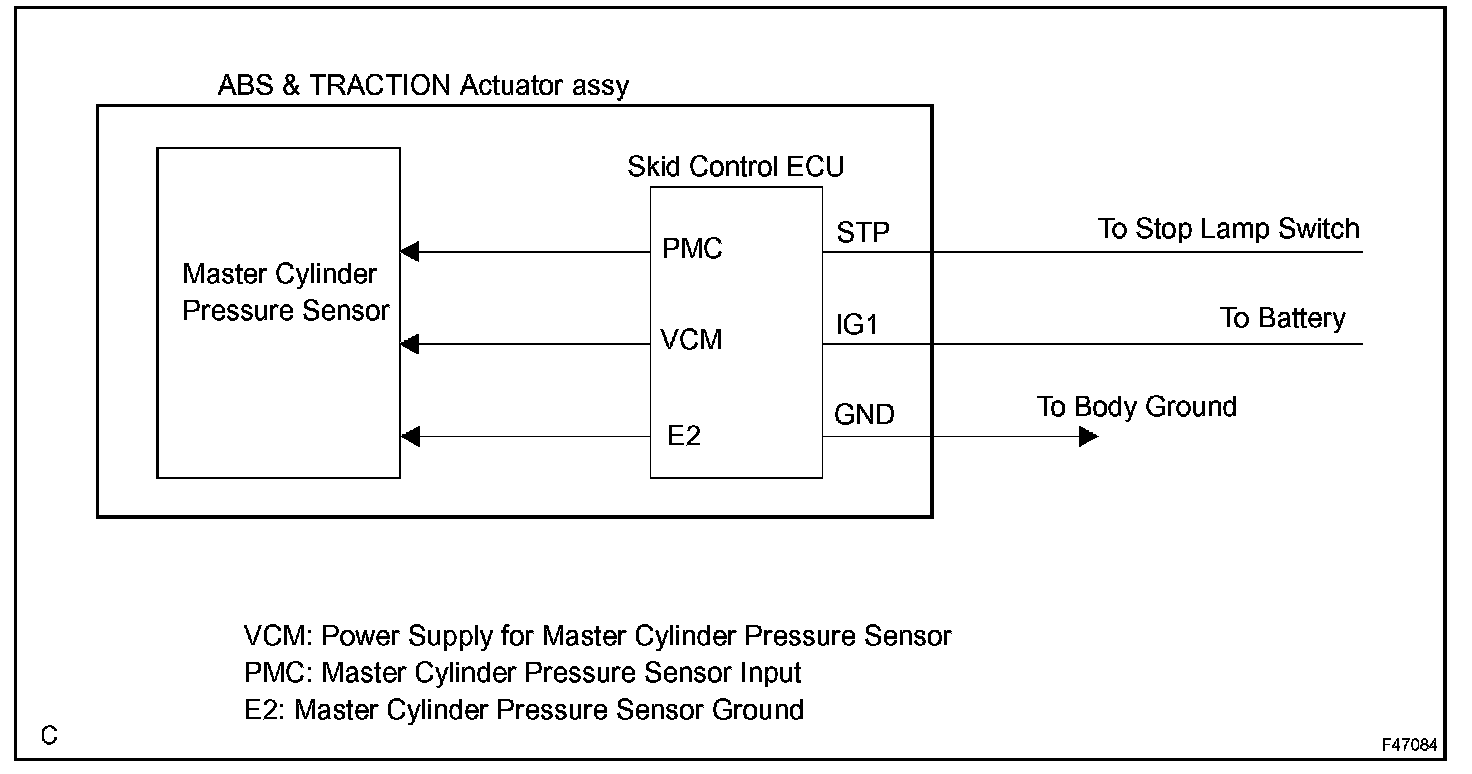

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The master cylinder pressure sensor is connected to the skid control ECU in the actuator.

INSPECTION PROCEDURE

NOTE: When replacing the ABS & TRACTION actuator assy, perform zero point calibration.

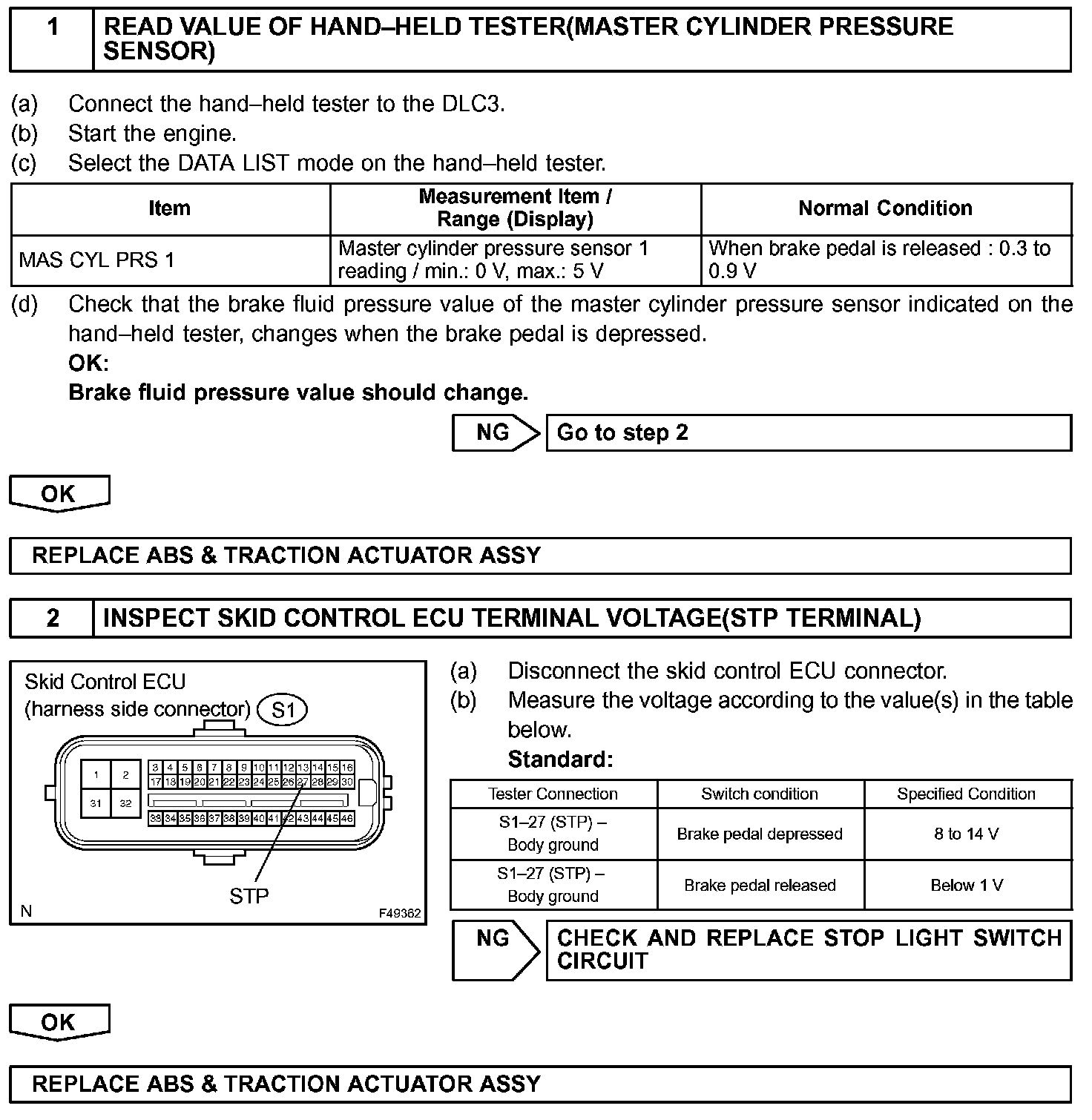

Step 1 - 2:

HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
