Engine Immobiliser System

DIAGNOSTIC TROUBLE CODE CHART

B2780 - B2798:

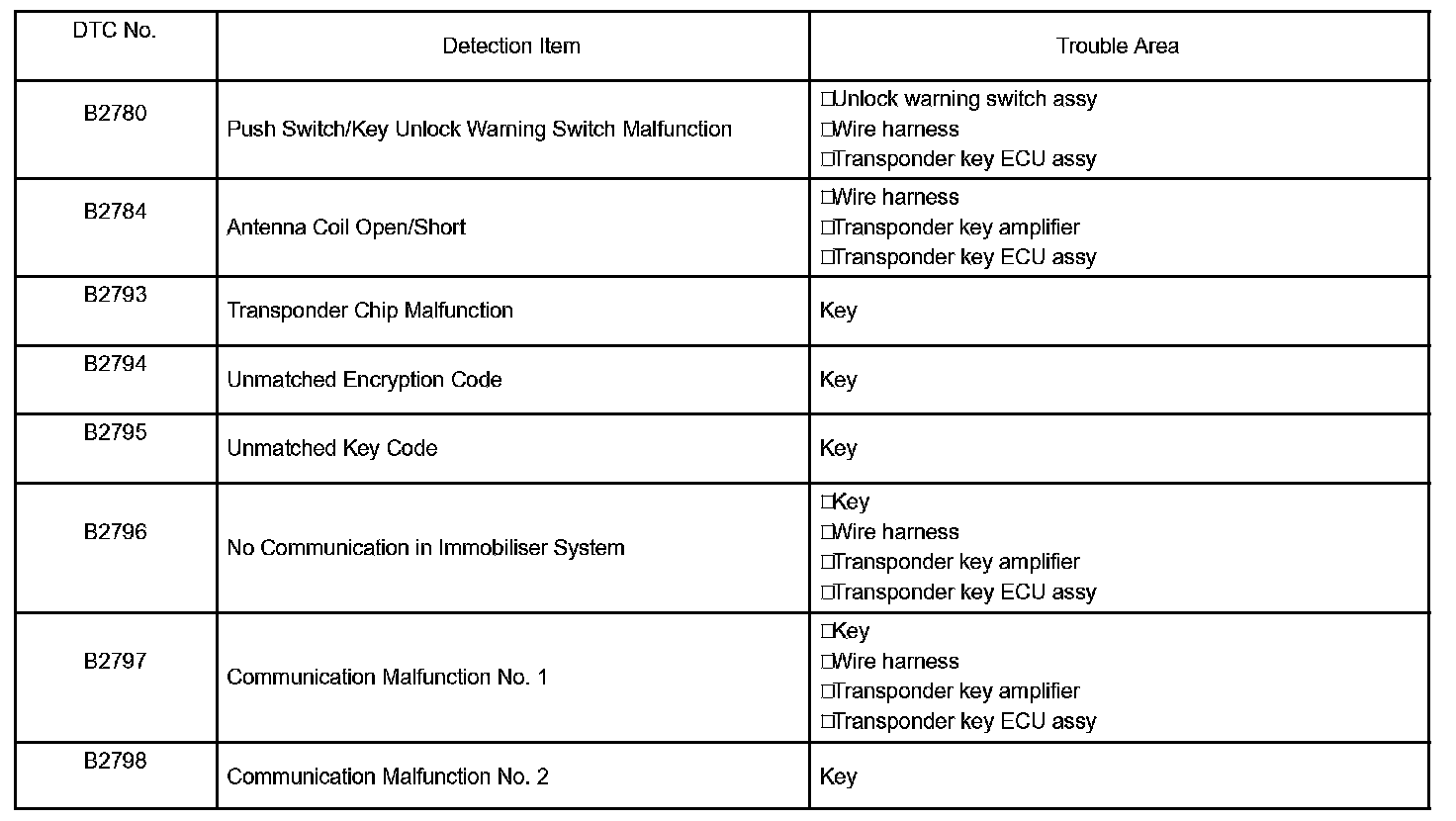

1. TRANSPONDER KEY ECU DTC CHART

2. ECM DTC CHART

B2799:

NOTE: The DTC for the immobilizer system is specified. If other codes are output, check the DTC chart of the SFI system.
