Basic Inspection

BASIC INSPECTION

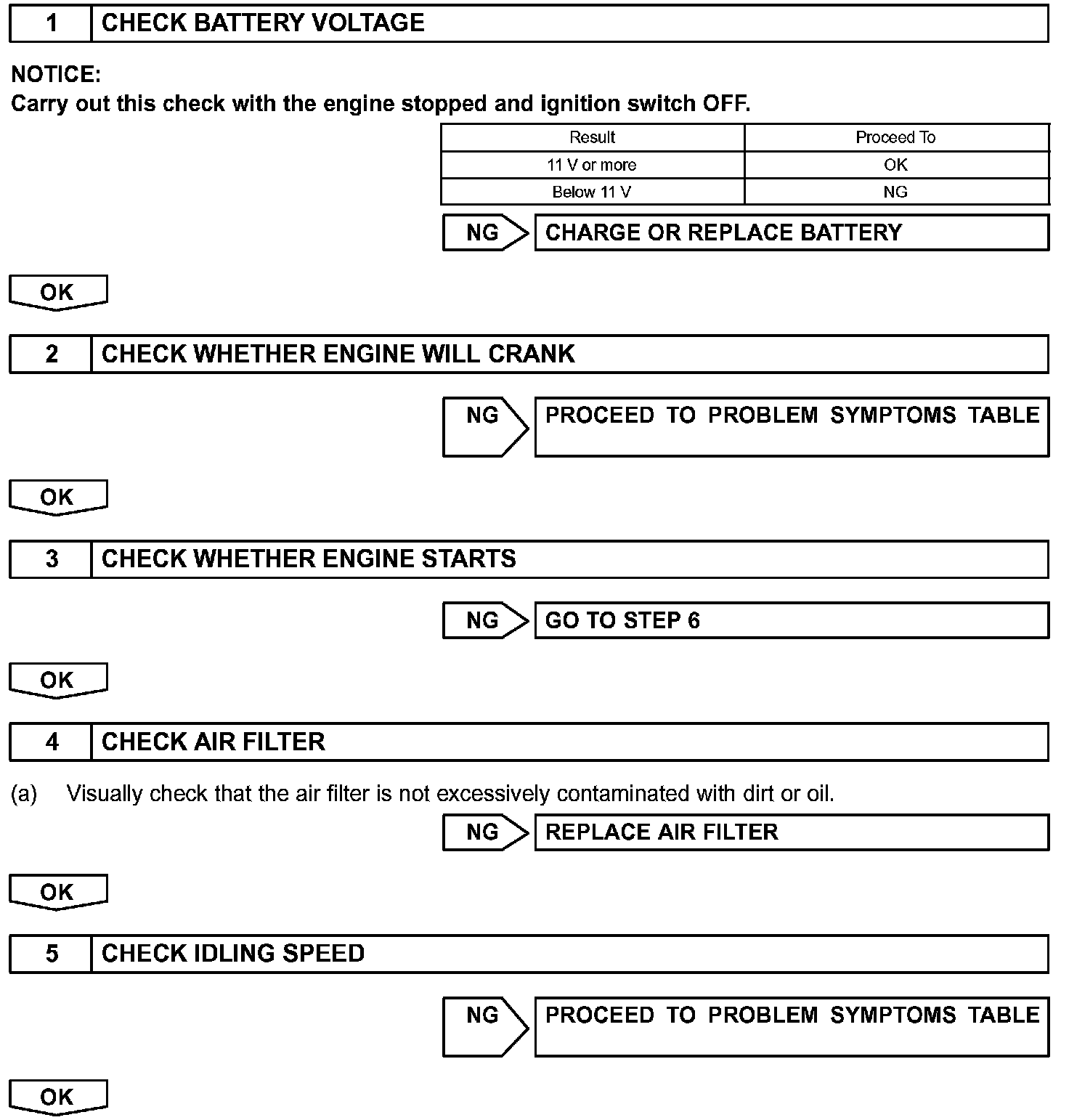

Step 1 - 5:

Step 6 - 7:

When a malfunction is not confirmed by the DTC check, troubleshooting should be carried out in all circuit considered to be possible causes of the problem. In many cases, by carrying out the basic engine check shown in the flowchart, the location of the problem can be found quickly and efficiently. Therefore, using this check is essential when engine troubleshooting.
