Cruise Control

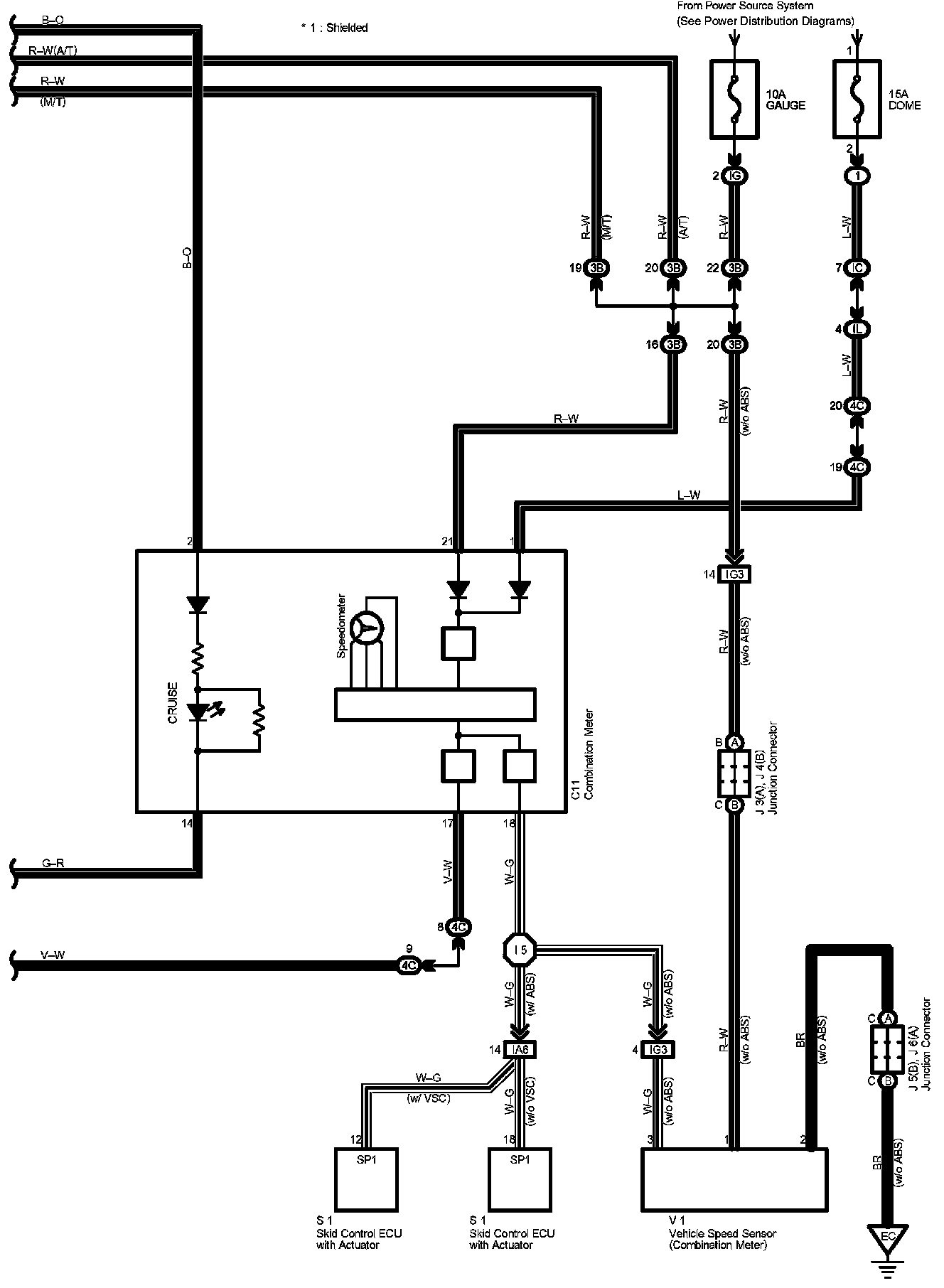

Cruise Control For 1ZZ-FE (2WD) Part 1:

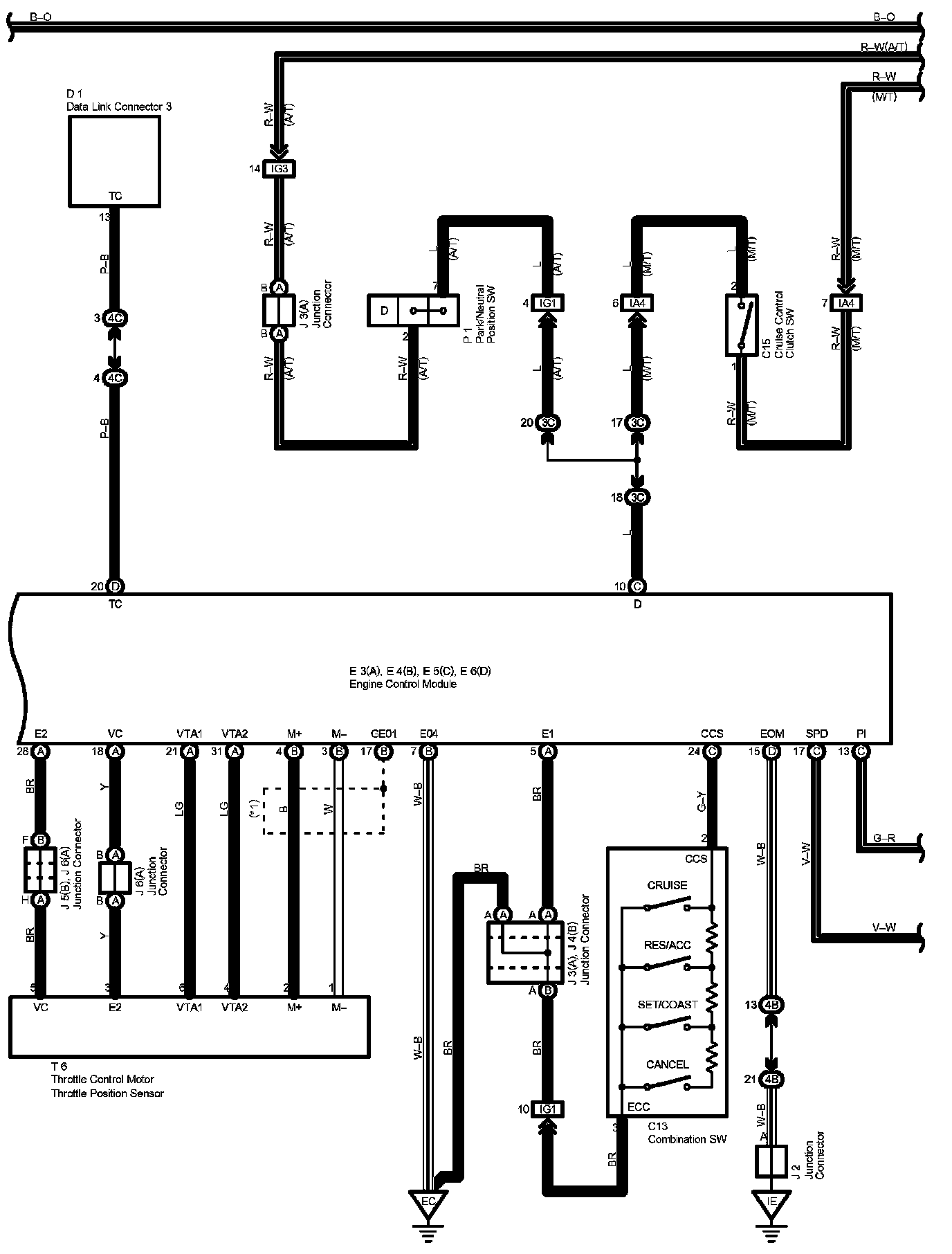

Cruise Control For 1ZZ-FE (2WD) Part 2:

Cruise Control For 1ZZ-FE (2WD) Part 3:

Cruise Control For 1ZZ-FE (2WD) Part 4:

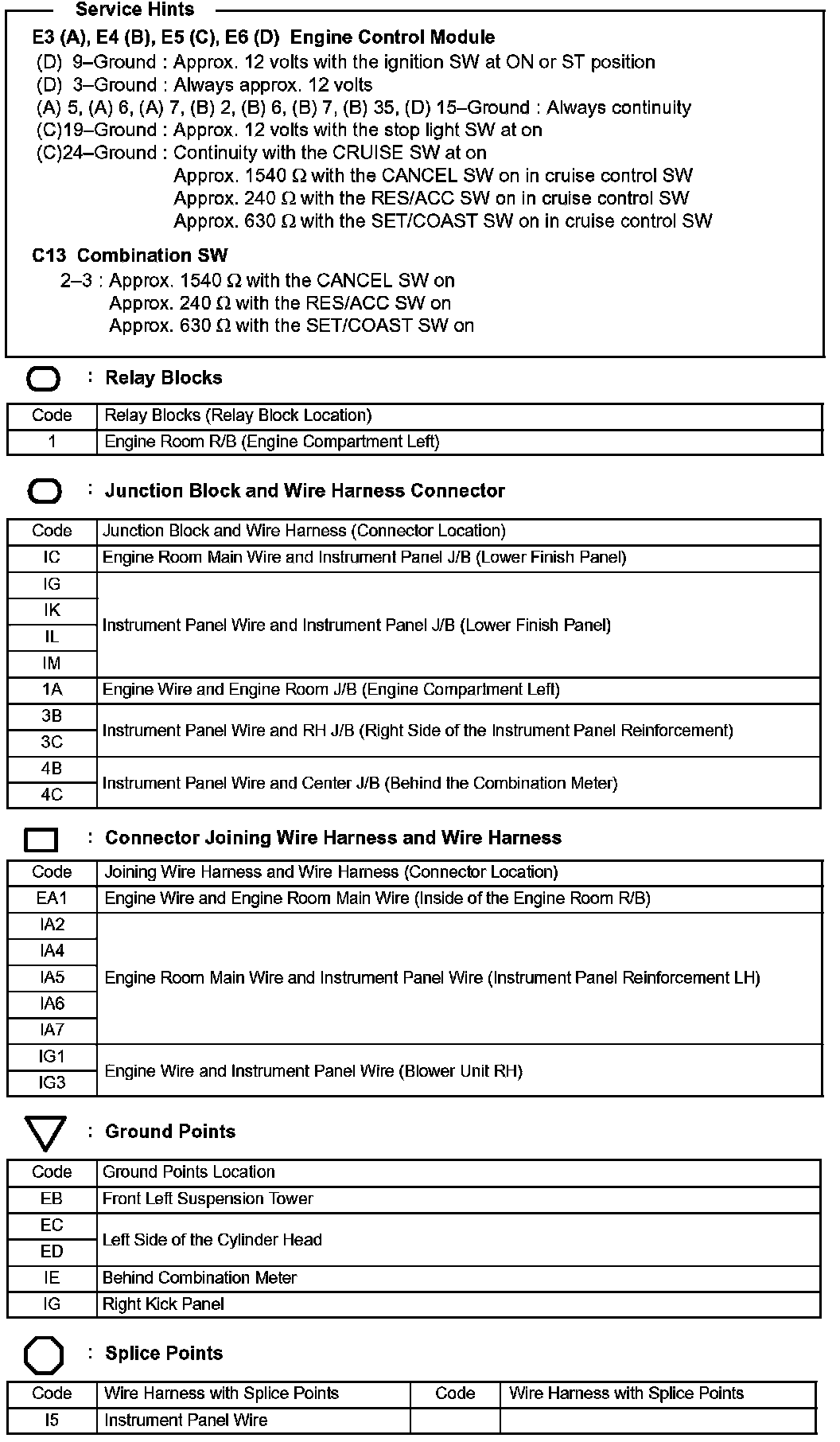

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
