Instrument Cluster / Carrier: Service and Repair

COMBINATION METER ASSEMBLY

OVERHAUL

HINT: Installation is in the reverse order of removal.

1. REMOVE METER HOOD SUB-ASSEMBLY
2. REMOVE COMBINATION METER ASSEMBLY




a. Remove the screw.
b. Disengage the 2 claws as shown in the illustration.




c. Disconnect connector, then remove the combination meter assembly, as shown in the illustration.

3. REMOVE COMBINATION METER GLASS




a. Remove the trip knob.

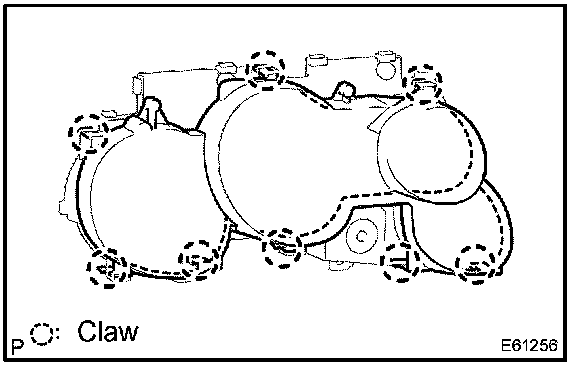

b. Disengage the 10 claws and remove the window plate.




c. Disengage the 8 claws and remove the combination meter glass.
