Door Switch: Testing and Inspection

FRONT DOOR COURTESY LAMP SWITCH ASSEMBLY

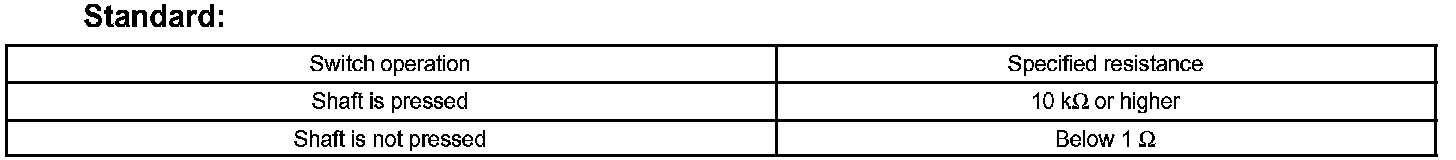

a. Measure the resistance according to the value(s) in the table.




REAR DOOR COURTESY LAMP SWITCH ASSEMBLY
a. Measure the resistance according to the value(s) in the table.







INSPECT BACK DOOR W/ MOTOR LOCK ASSEMBLY (BACK DOOR COURTESY SWITCH)
a. Measure the resistance of the back door courtesy switch.
If the result is not as specified, replace the door lock assembly.
