Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2005
>>
Matrix 2WD L4-1.8L (1ZZ-FE)
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Fuel Delivery and Air Induction
Fuel Delivery and Air Induction

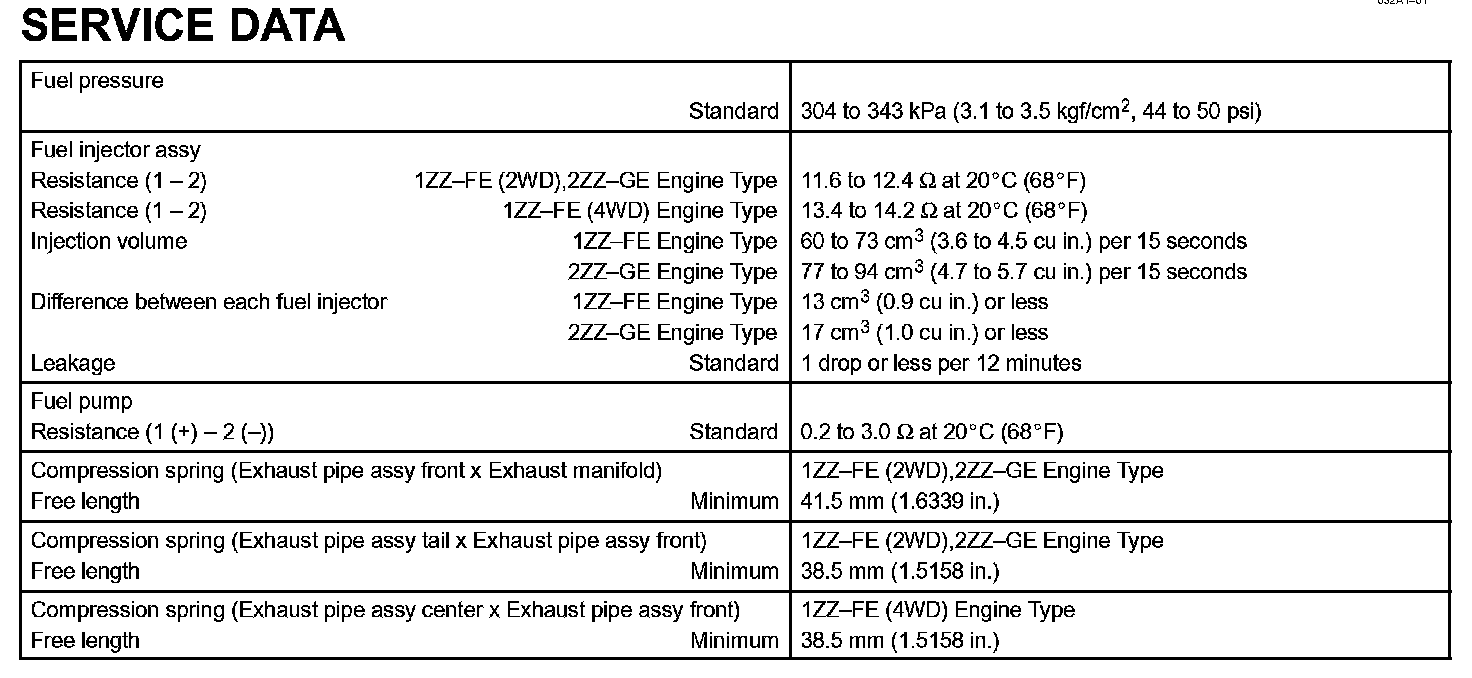

Fuel - Service Data:
