Home >> Toyota >> 2005 >> Matrix 2WD L4-1.8L (1ZZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Specifications

Suspension: Specifications

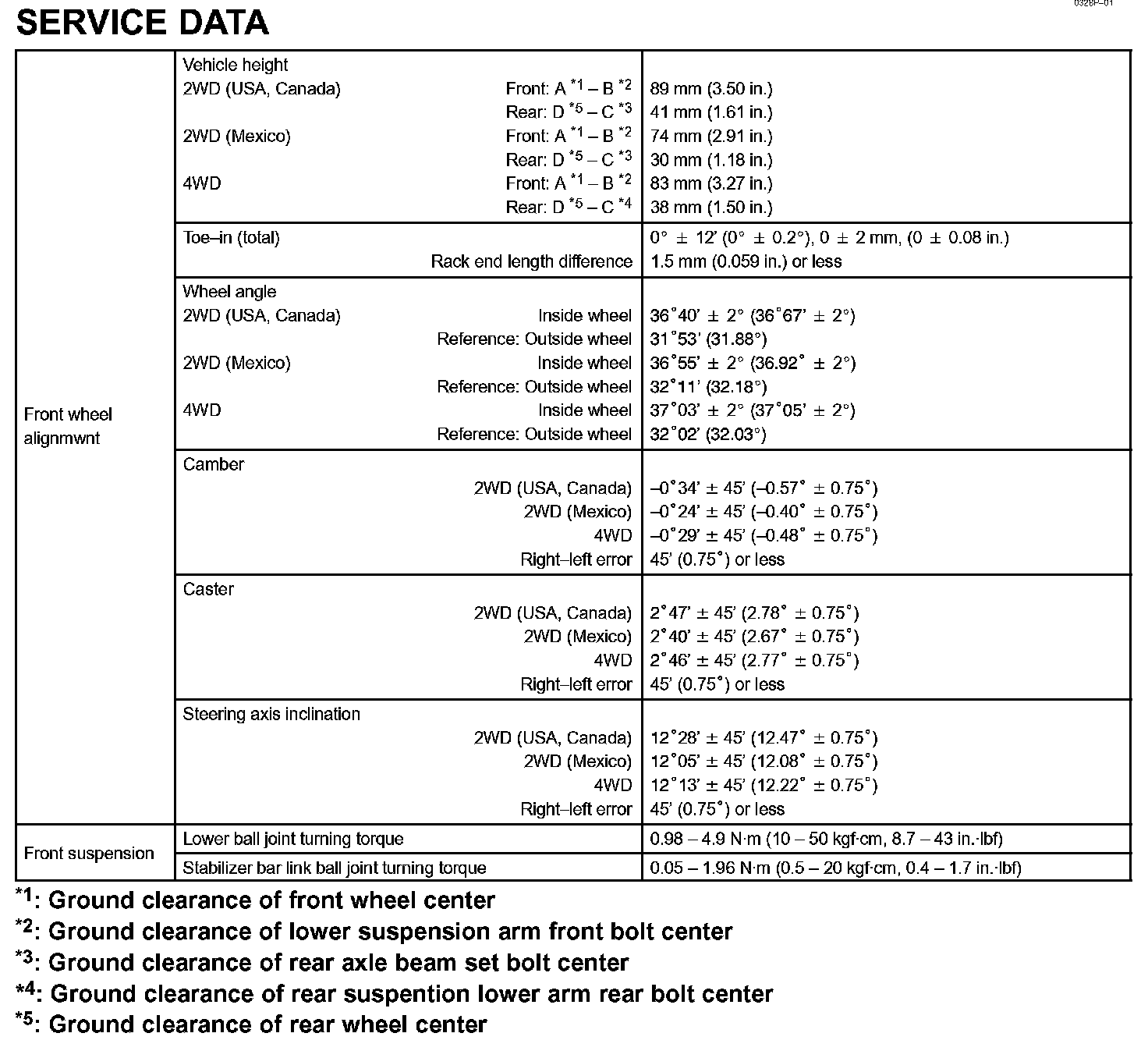

Front Suspension - Service Data:

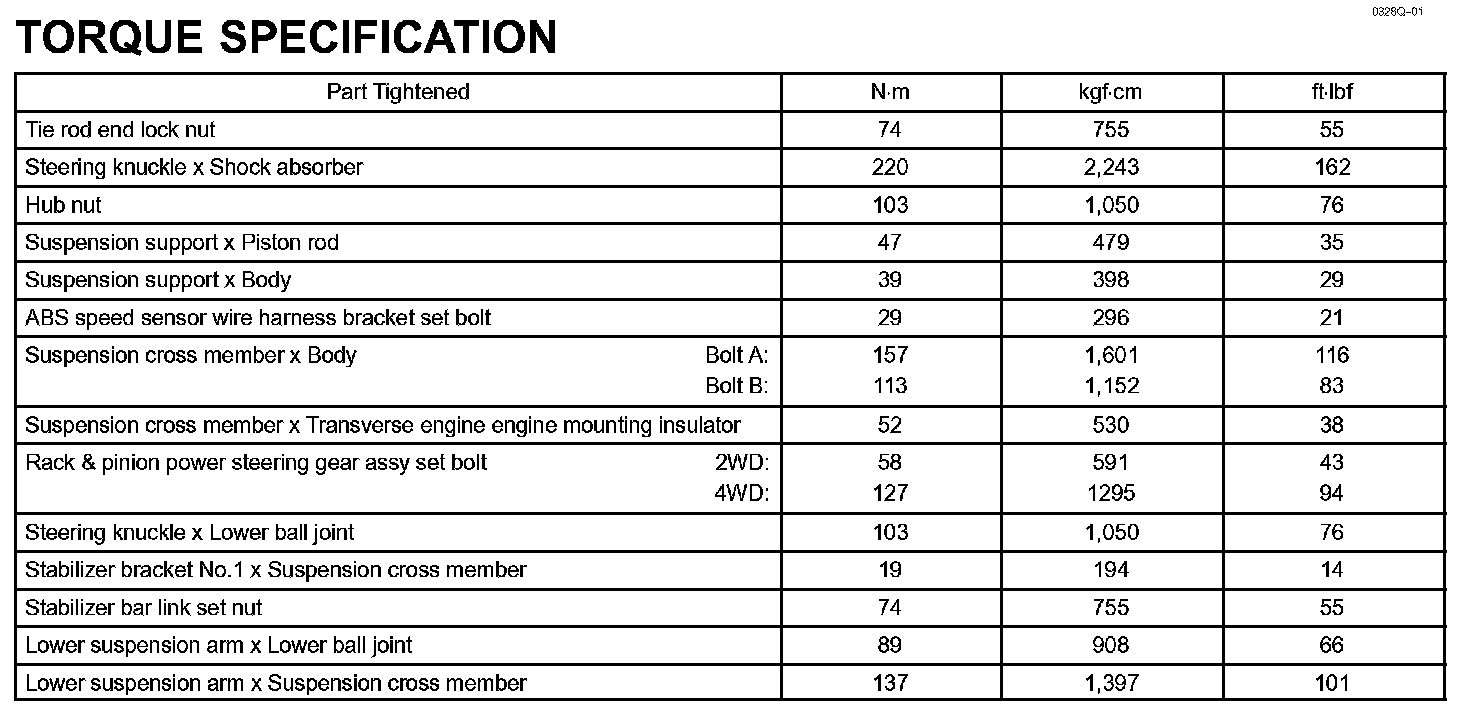

Front Suspension - Torque Specification:

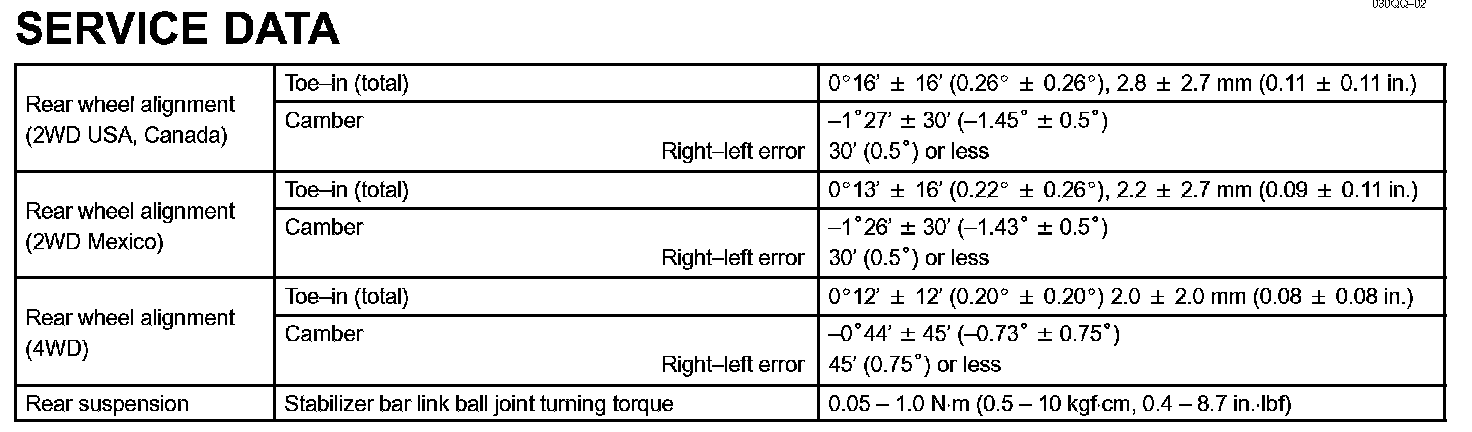

Rear Suspension - Service Data:

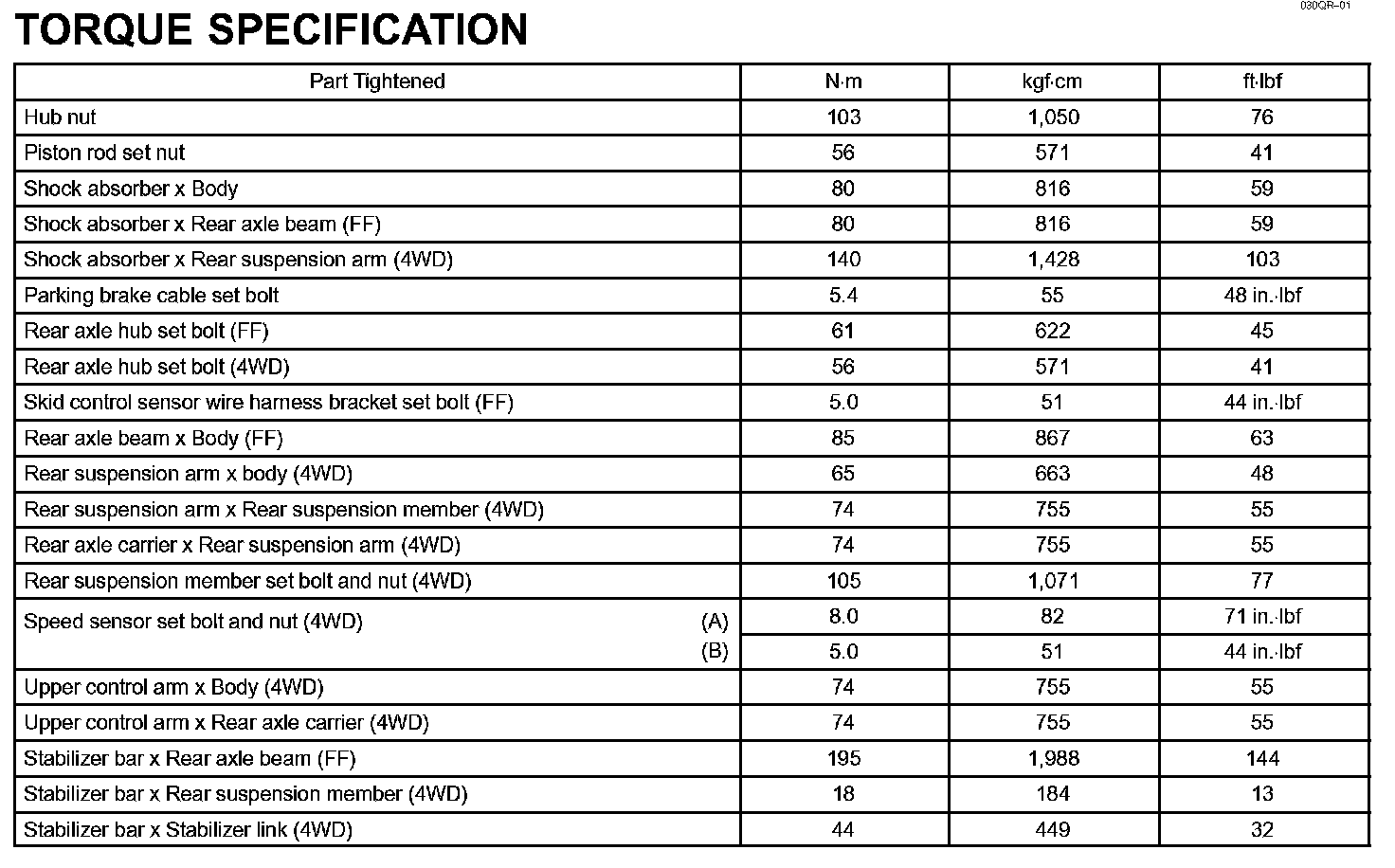

Rear Suspension - Torque Specification:
