Home >> Toyota >> 2005 >> Matrix 2WD L4-1.8L (2ZZ-GE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

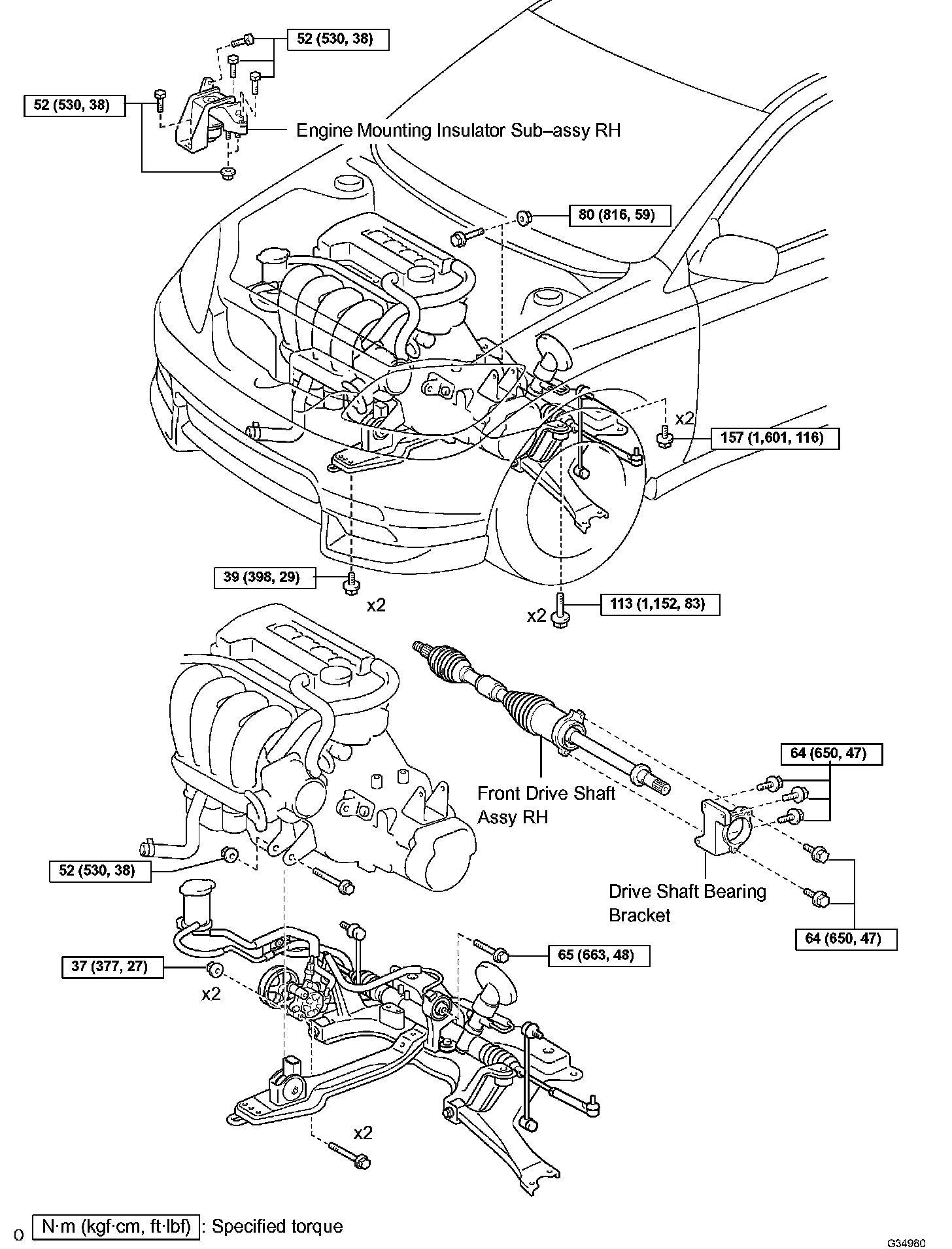

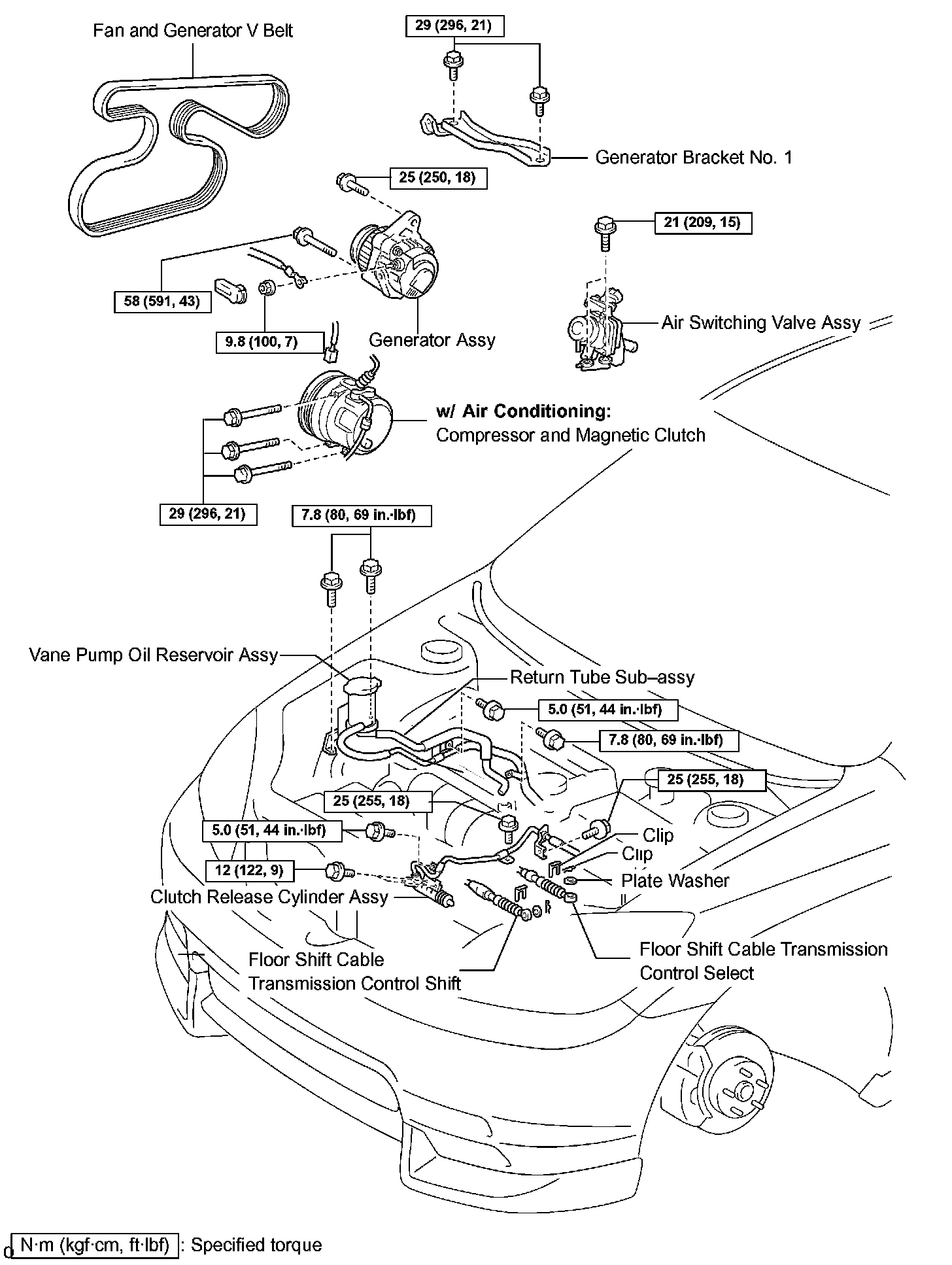

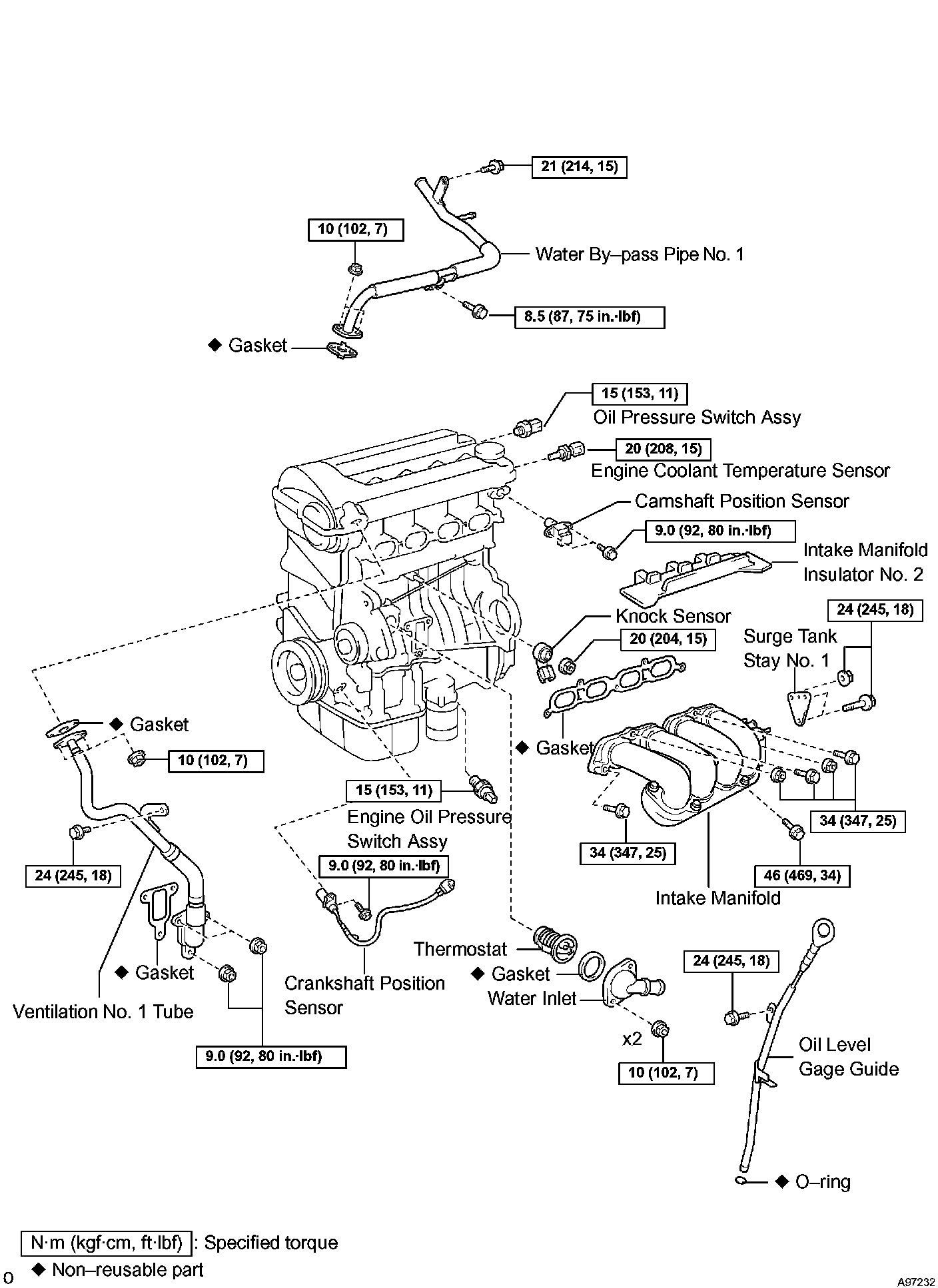

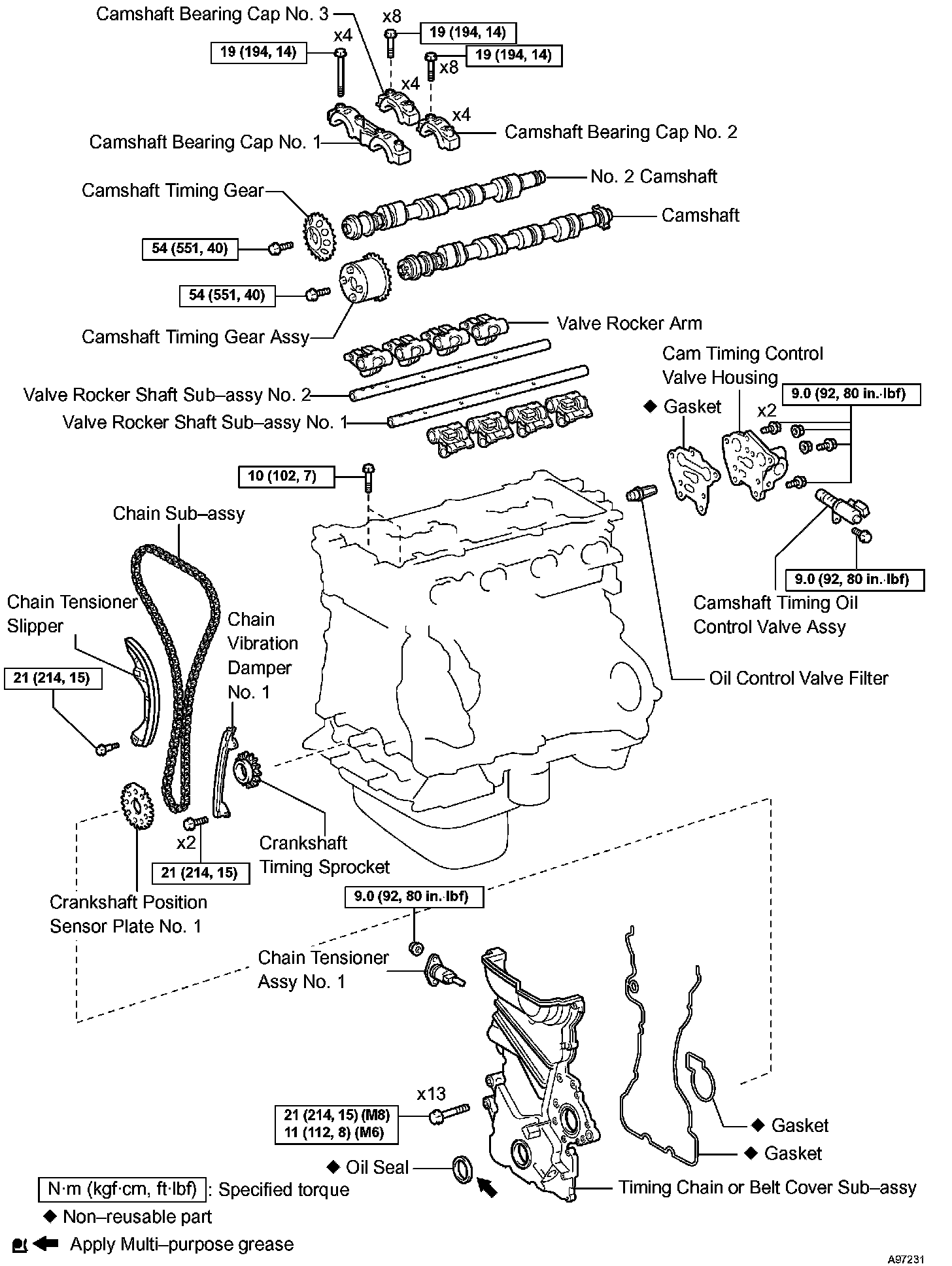

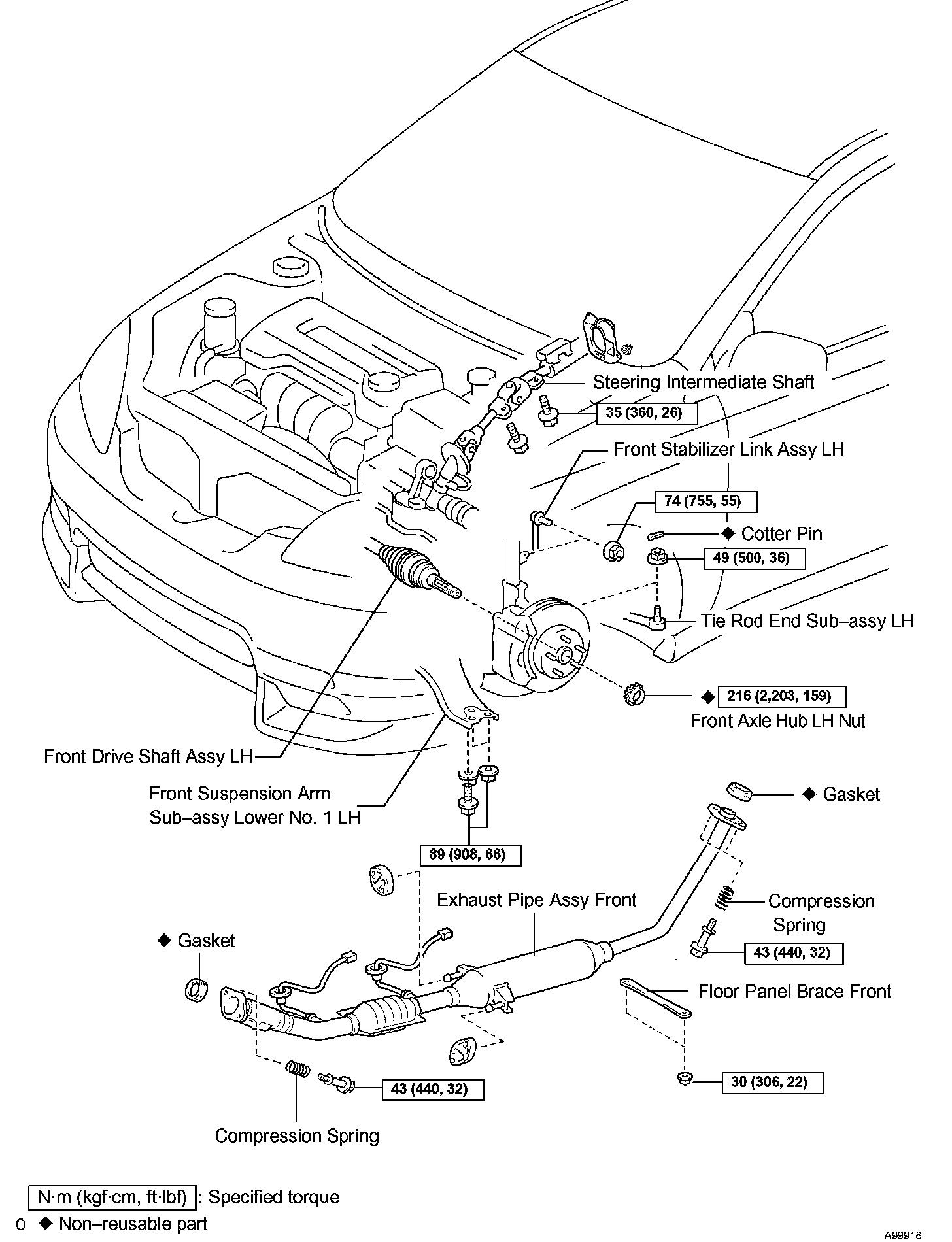

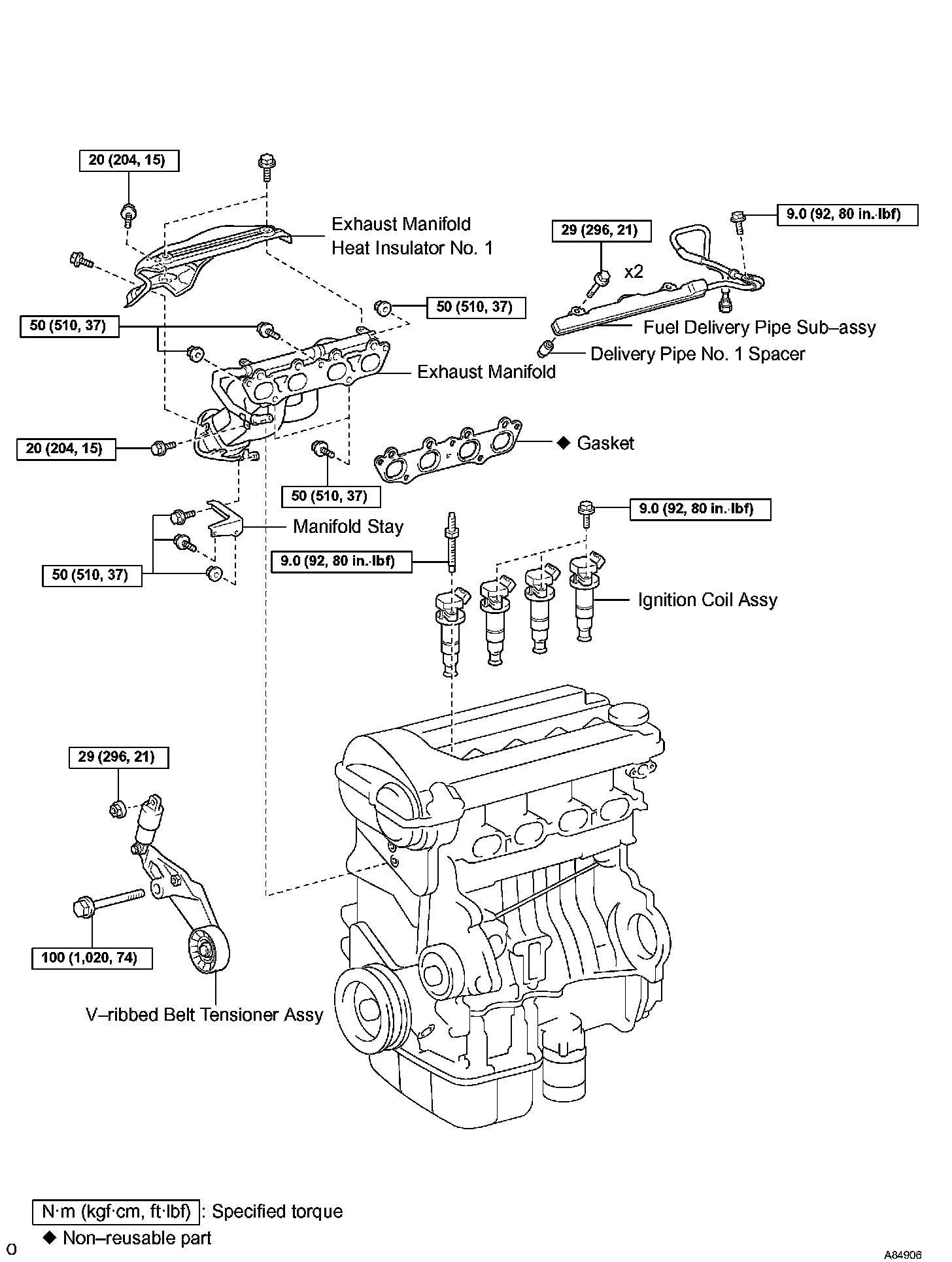

PARTIAL ENGINE ASSY COMPONENTS
