Drive Belt: Service and Repair
FAN AND GENERATOR V BELTREPLACEMENT
1. REMOVE ENGINE UNDER COVER RH
2. REMOVE CYLINDER HEAD COVER NO.2
a) Remove the 3 bolts and nut, then remove the cylinder head cover No. 2.
3. REMOVE WIRE HARNESS PROTECTOR

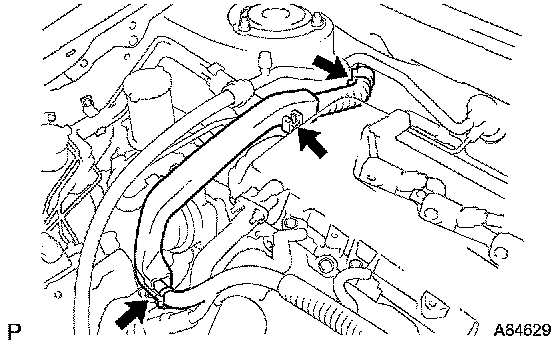

a) Unfasten the 3 clips, then remove the wire harness protector.
b) Disconnect the pressure sensor connector.

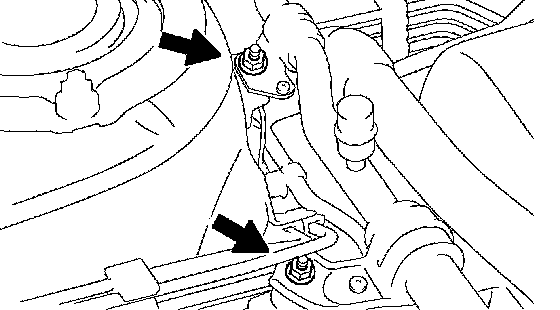

4. SEPARATE SUCTION HOSE SUB-ASSY
a) Remove the 2 nuts, then separate the suction hose.
5. REMOVE AIR SWITCHING VALVE ASSY
6. REMOVE FAN AND GENERATOR V BELT
a) Turn the drive belt tensioner clockwise to relive tension on the belt, and then remove the belt.
b) Carefully return the tensioner to the unloaded position.
NOTICE:
^ When retracting the tensioner, turn it clockwise slowly in 3 seconds or more. Be sure to not apply force rapidly.
^ After the tensioner is retracted all the way, do not apply force any more than necessary.
7. INSTALL AIR SWITCHING VALVE ASSY
8. INSTALL SUCTION HOSE SUB-ASSY
Torque: 9.8 Nm (100 kgf-cm, 87 inch lbs.)
9. INSTALL CYLINDER HEAD COVER NO.2
Torque: 7.0 Nm (71 kgf-cm, 62 inch lbs.)
