Parking Brake System: Adjustments
ADJUSTMENT1. REMOVE REAR WHEEL
2. ADJUST PARKING BRAKE SHOE CLEARANCE
3. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
4. INSPECT PARKING BRAKE LEVER TRAVEL
a. Pull the parking brake lever to the fully applied position, and count the number of clicks.
Parking brake lever travel: 5 - 8 clicks at 196 N (20 kgf, 44.1 lbs.)
5. ADJUST PARKING BRAKE LEVER TRAVEL
a. Remove the rear console box sub-assy.

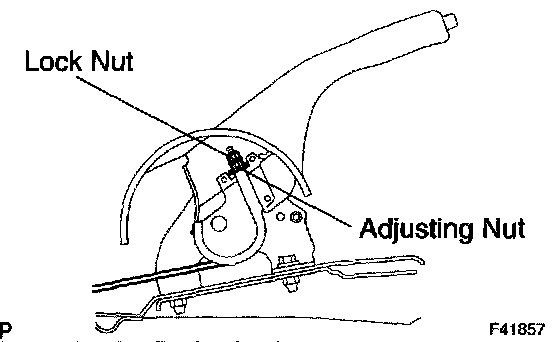

b. Loosen the lock nut and turn the adjusting nut until the lever travel turns correct.
c. Tighten the lock nut.
Torque: 5.0 Nm (55 kgf-cm, 44 inch lbs.)
d. Install the rear console box sub-assy
