Cruise Control

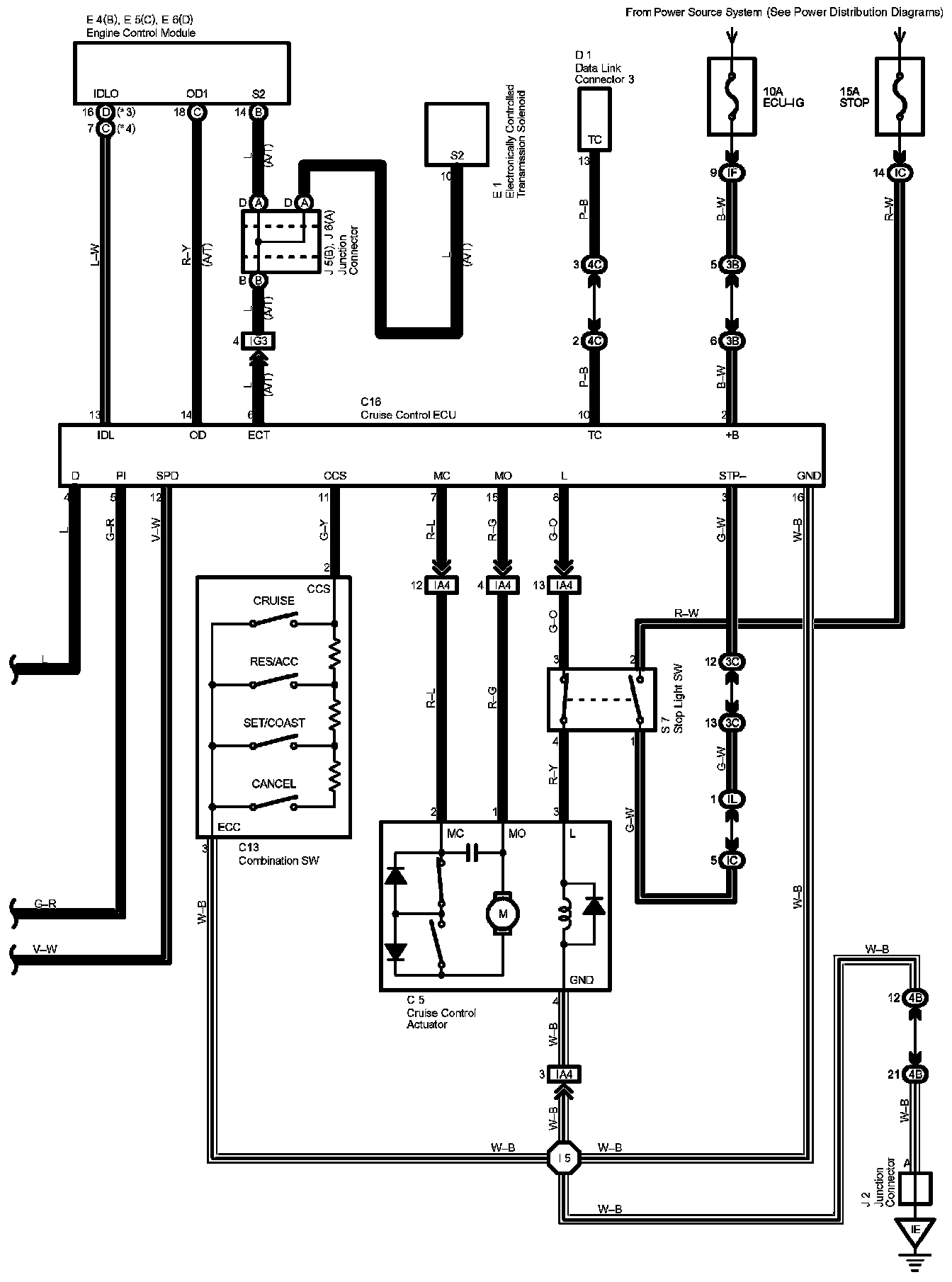

Cruise Control For 2ZZ-GE And 1ZZ-FE (4WD) Part 1:

Cruise Control For 2ZZ-GE And 1ZZ-FE (4WD) Part 2:

Diagram Legend:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations

Connector Views: The connector views for connectors referred to within these diagrams can be found at the Vehicle level Connector Views. Connector Views
