Low Tire Pressure Indicator: Testing and Inspection

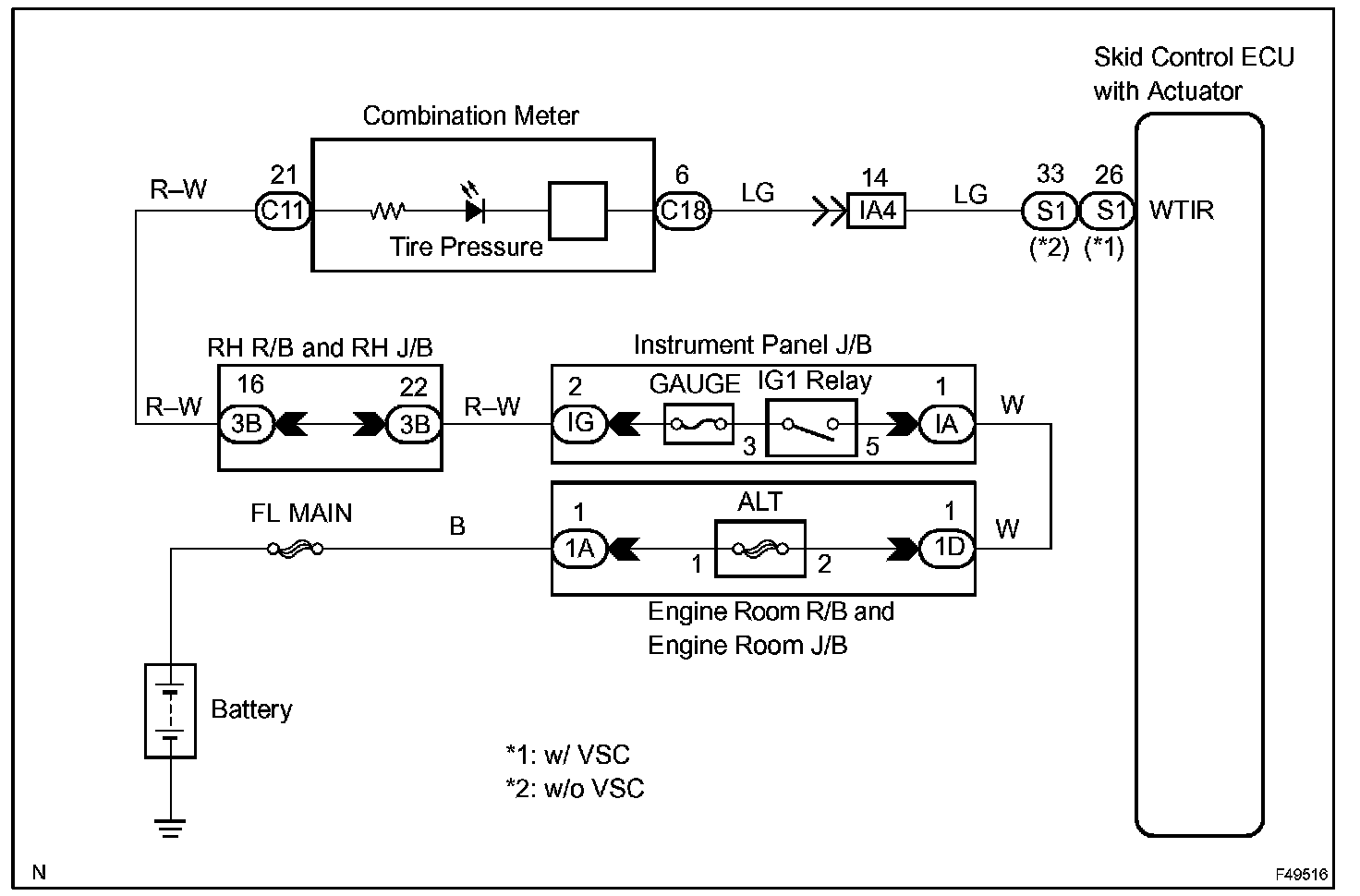

TIRE PRESSURE WARNING LAMP CIRCUIT

CIRCUIT DESCRIPTION
When the tire pressure decreases, the skid control ECU illuminates the tire pressure warning lamp on the combination meter assy.

HINT: Refer to the "TIRE PRESSURE WARNING LAMP CHART" section in the "DIAGNOSIS SYSTEM" for the tire pressure warning lamp.
