C1237

DTC C1237 SPEED SENSOR ROTOR FAULTY

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The skid control ECU measure the speed of each wheel by receiving signals from speed sensor. These signals are used for recognizing all 4 wheels are operating properly.

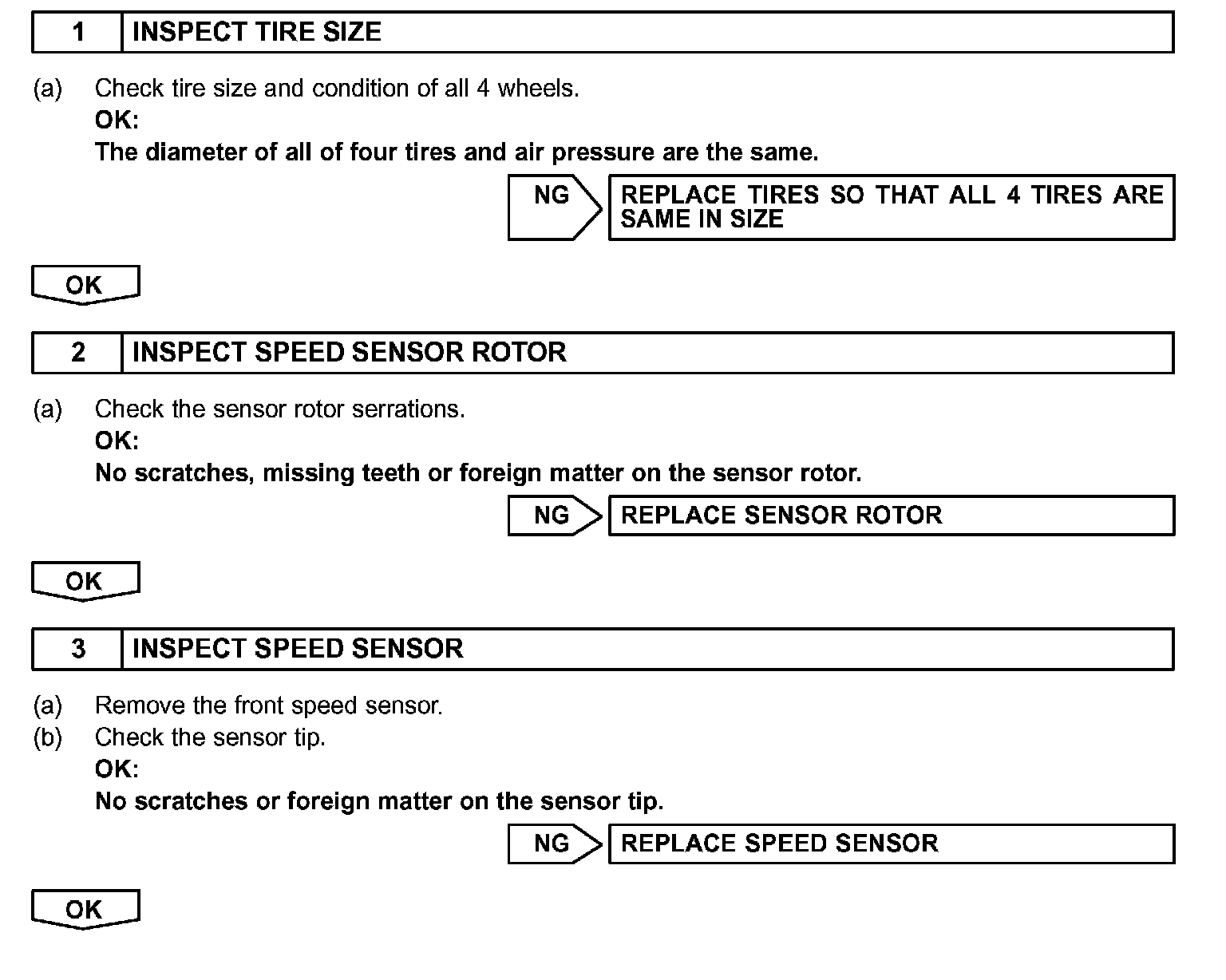

Step 1 - 3:

Step 4:

INSPECTION PROCEDURE
