C1251

DTC C1251 PUMP MOTOR IS LOCKED/OPEN CIRCUIT IN PUMP MOTOR GROUND

CIRCUIT DESCRIPTION

DTC Detecting Condition:

The ABS pump motor is located inside the brake actuator. The motor is used for BA, TRAC and VSC operation.

Wiring Diagram:

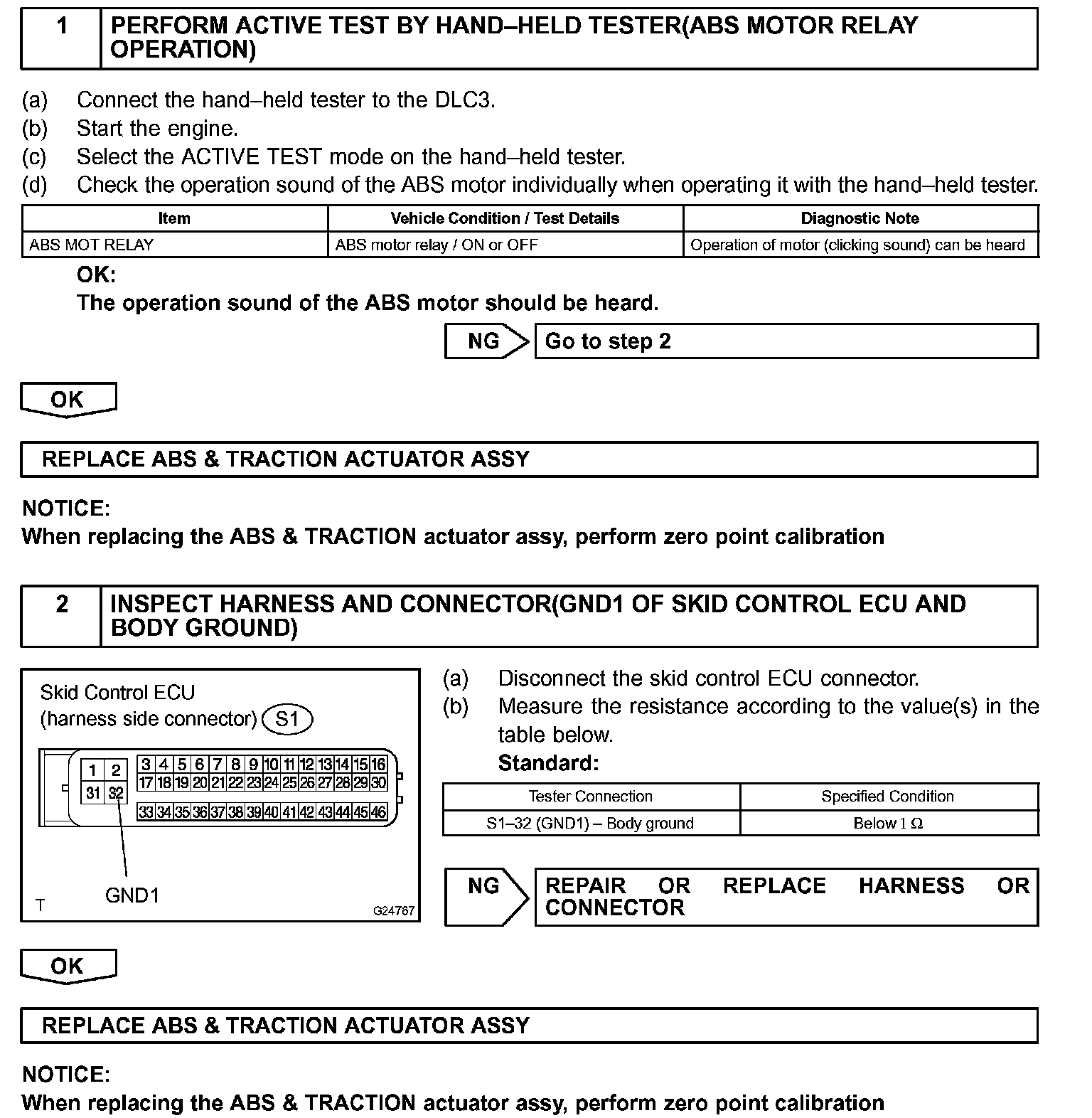

Step 1 - 2:

INSPECTION PROCEDURE

HINT: Start the inspection from step 1 in case of using the hand-held tester and start from step 2 in case of not using the hand-held tester.
