ABS w/ EBD & BA & TRAC & VSC System

DIAGNOSTIC TROUBLE CODE CHART

HINT: If a malfunction code is displayed during the DTC check, check the circuit indicated by the DTC. For details of each code, turn to the respective "DTC No." in the DTC chart.

C0200/31 - C1236/36:

C1238/38 - U0124/95:

DTC chart of ABS:

HINT:
- In some cases, the hand-held tester cannot be used when ABS warning light remains on.
- When U0121/94, U0123/62, U0124/95 or U0126/63 are output, inspect and repair the trouble areas indicated by U0121/94, U0123/62, U0124/95 or U0126/63 first.

C1201/51 - U0126/63:

DTC chart of VSC:

HINT: In some cases, the hand-held tester cannot be used when the VSC warning light remains on.

C1271/71 - C0371/71:

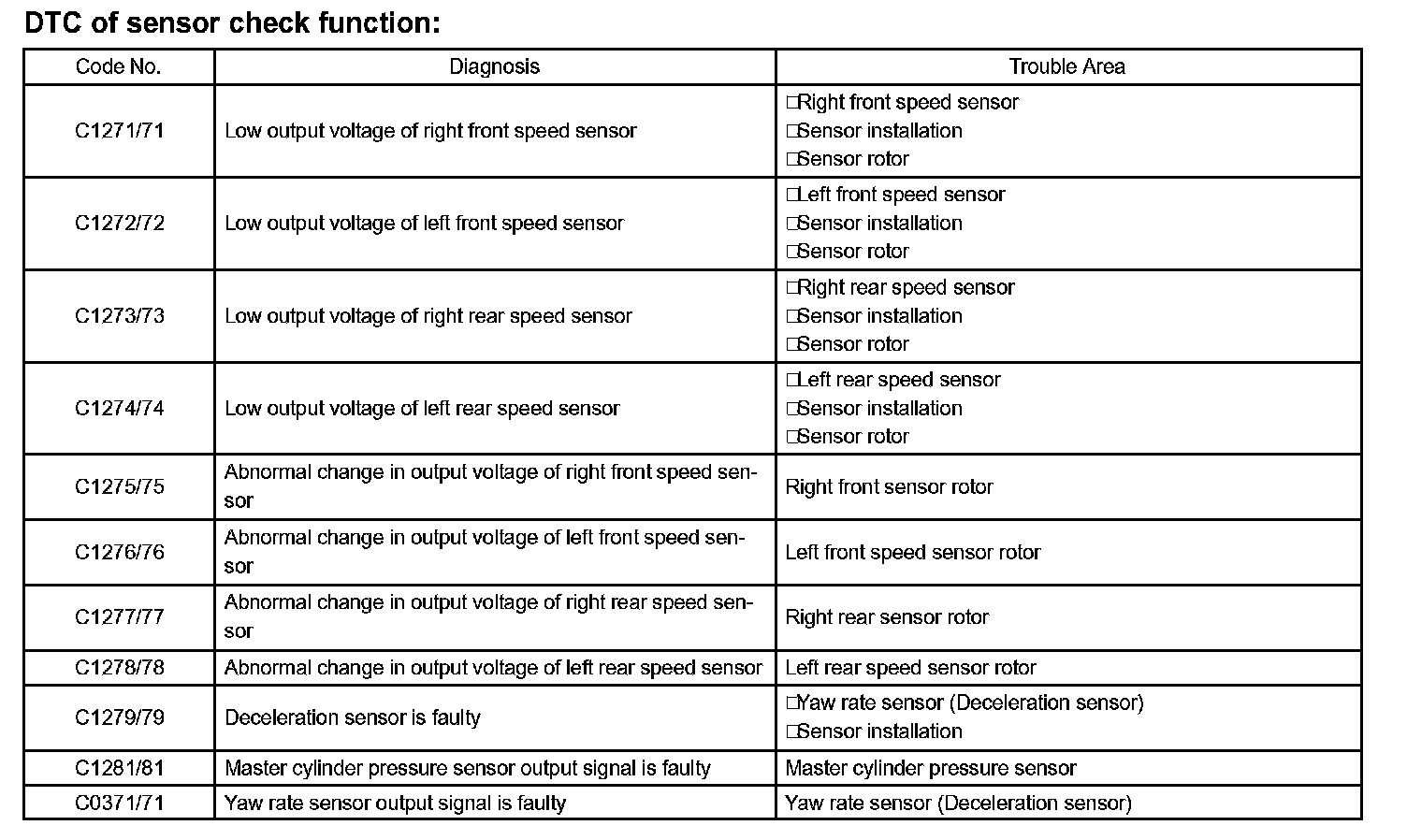

DTC of sensor check function:

HINT: The code in this table are output only in TEST MODE.
